B101586-4-0112

Page 12

All repair part orders should be placed through your local Broilmaster dealer. To locate a dealer in your area, visit

www.broilmaster.com and click on the dealer locator. To ensure prompt and accurate service, please provide the following

information when placing a repair part order: Model Number, Part Name, Part Number, and Quantity of parts needed.

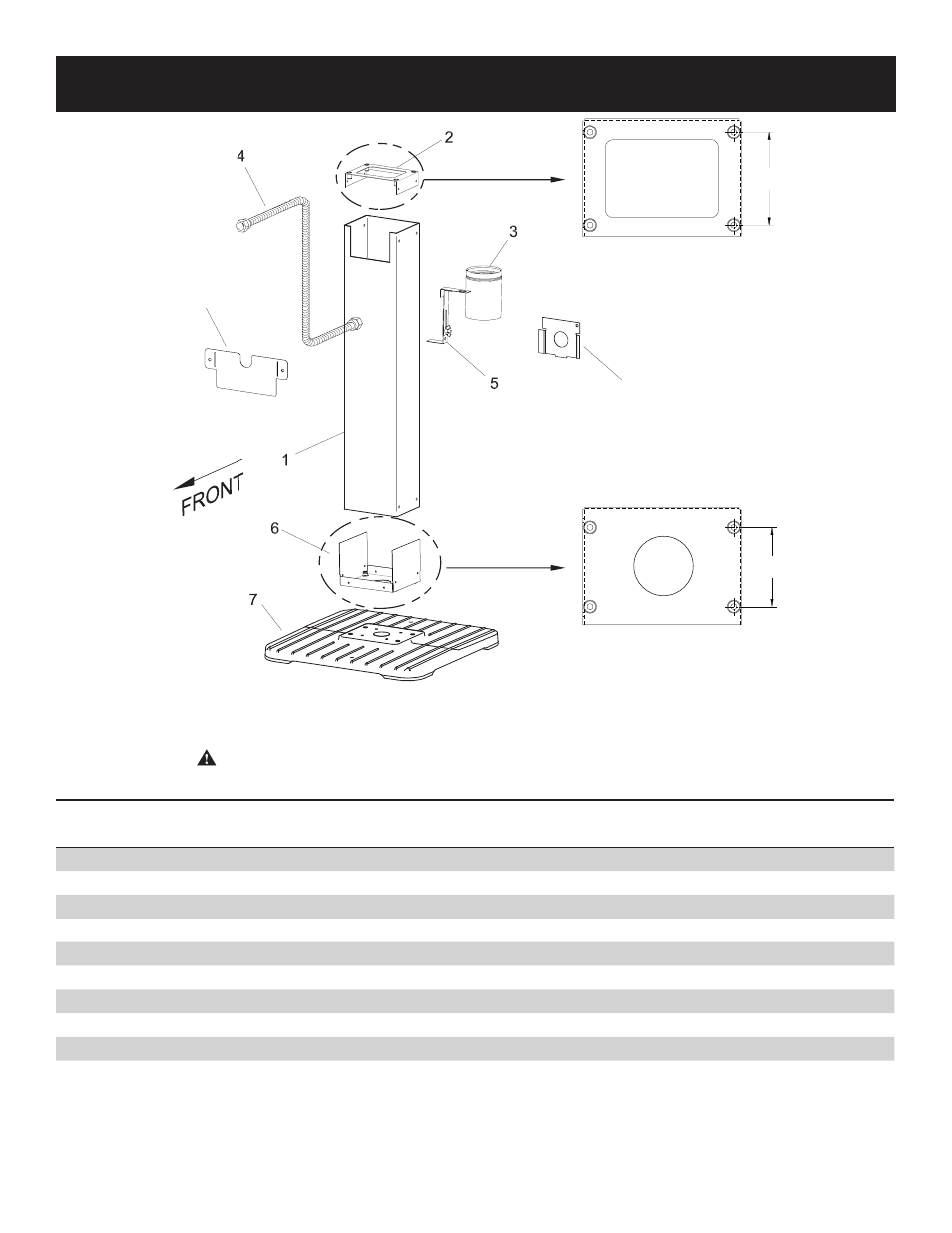

p

Atio

b

ASE

E

xplodEd

v

iEw

& p

ArtS

l

iSt

3.08

2.63

8

9

Remove protective coating from stainless steel parts starting at pop rivets and verify that all parts listed in the

exploded view on this page have been included before beginning this

installation.

Caution: Use caution when handling parts, as they may contain sharp edges.

Work gloves are recommended to prevent injury.

INDEX NO.

PART NO.

DESCRIPTION

SS26P

BL26P

1

B101660

B101644

Post Assembly

2

B101760

B101760

Upper Bracket Assembly

3

B101634

B101634

Grease Cup

4

B076519

B076519

Flex Line

5

B101628

B101628

Grease Cup Holder

6

B101764

B101764

Lower Bracket Assembly

7

B074604

B074604

Cast Base

8*

-

B101596

Post Cover Plate - Black

8*

B101597

-

Post Cover Plate - Stainless Steel

9

B101630

B101629

Post Access Door

* Post Cover Plate is used only when installing R3 Series grill head onto post.
