Bush Hog BH750 User Manual
Page 37

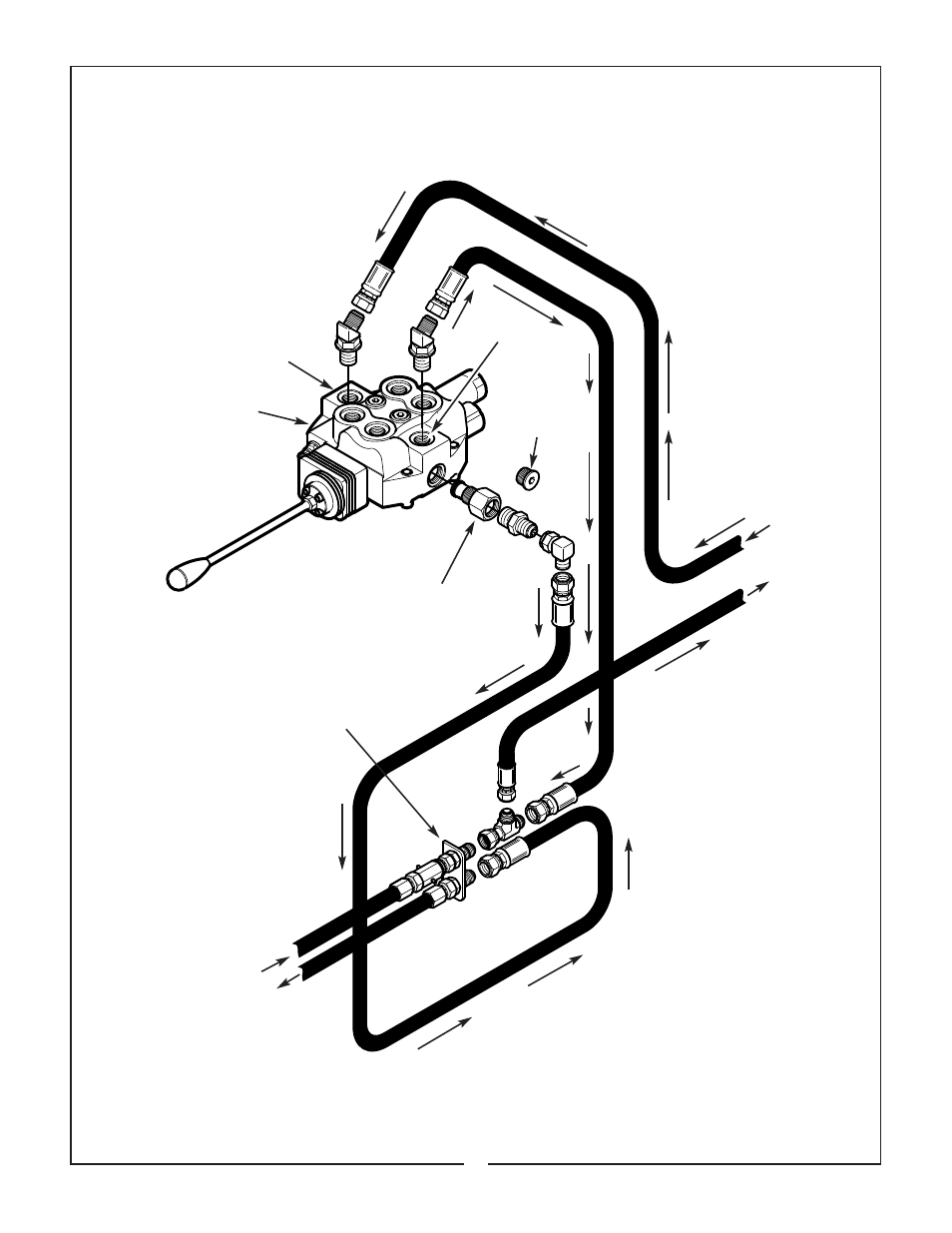

BUSH HOG BACKHOE & BUSH HOG LOADER VALVE
Figure 23
NOTE: Large loader valve (Walvoil)
shown. Small loader valve porting is
different. Refer to loader operator’s
manual for different valves.
Backhoe Bulkhead Connection
(Located on inside of mainframe
side plate at left rear of hoe)
Inlet
Bush Hog Loader Valve
Outlet
Open Center
Plug
Power Beyond Plug
(Supplied With Valve)
From Tractor
Pressure
Outlet Port
IMPORTANT: Never connect the return hose to a tractor remote
coupler which can be pressurized. Accidental pressurization can
cause serious damage to backhoe valve.
Backhoe Valve
Return Line
Pressure To
Backhoe Valve
To Tractor
Reservoir Port
36
