BH850/BH950
3-POINT HITCH LINKAGE
3-Point Hitch Linkage
The backhoe is mounted on the tractor lower link
arms and an adjustable upper link is supplied to
replace the tractor upper link. A set of stabilizer arms
are included. They bolt from the adjustable upper
link to the backhoe mainframe, locking the hoe rigid-
ly in one position.
IMPORTANT- Tractor lower links must be kept
free of lifting forces at all times after installation
of the attaching kit by keeping tractor quadrant
lever in the lowered position.
NOTE:
If the 3-Point Kit is to be used with a PTO
Pump Kit, the Reservoir Tank and it’s fittings should
be installed before proceeding with the 3-Point Kit
installation.
28

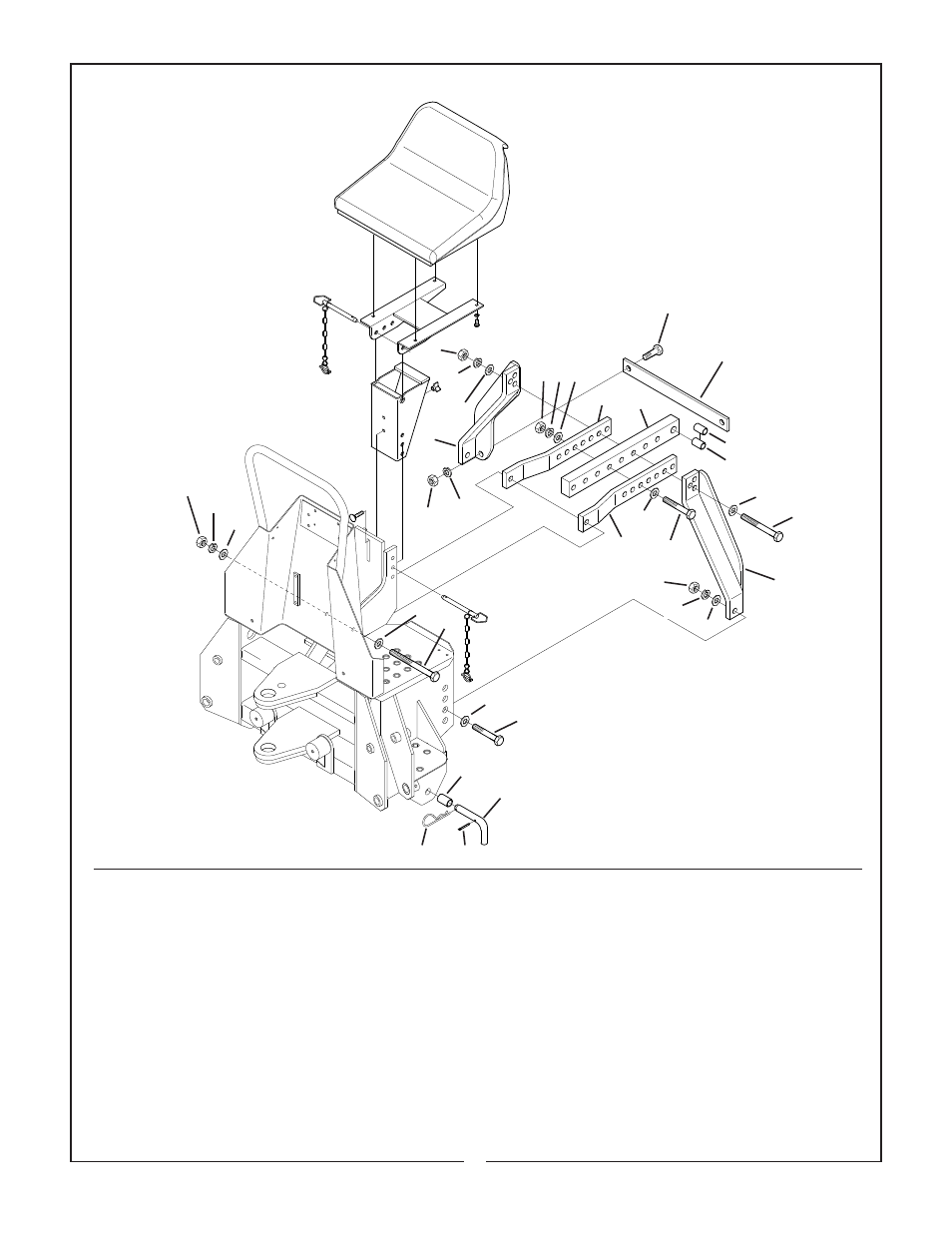

Figure 15
(BH650 & BH750)
22
21
11
10
9
1
24
23
11 10 9
7
14
12
13
9
20
7
9
15
2
19
18
17
11
10
9
9
8
17
16
6
3
4
5
