26

3-Point Hitch Linkage BH650 & BH750

The backhoe is mounted on the tractor lower link
arms and an adjustable upper link is supplied to
replace the tractor upper link. A set of stabilizer arms
is included. They bolt from the adjustable upper link
to the backhoe mainframe, locking the hoe rigidly in
one position.

IMPORTANT: Tractor lower links must be kept
free of lifting forces at all times after installation
of the attaching kit by keeping tractor quadrant
lever in the lowered position.

NOTE:

If the 3-Point Kit is to be used with a PTO

Pump Kit, the Reservoir Tank and its fittings should
be installed before proceeding with the 3-Point Kit
installation.

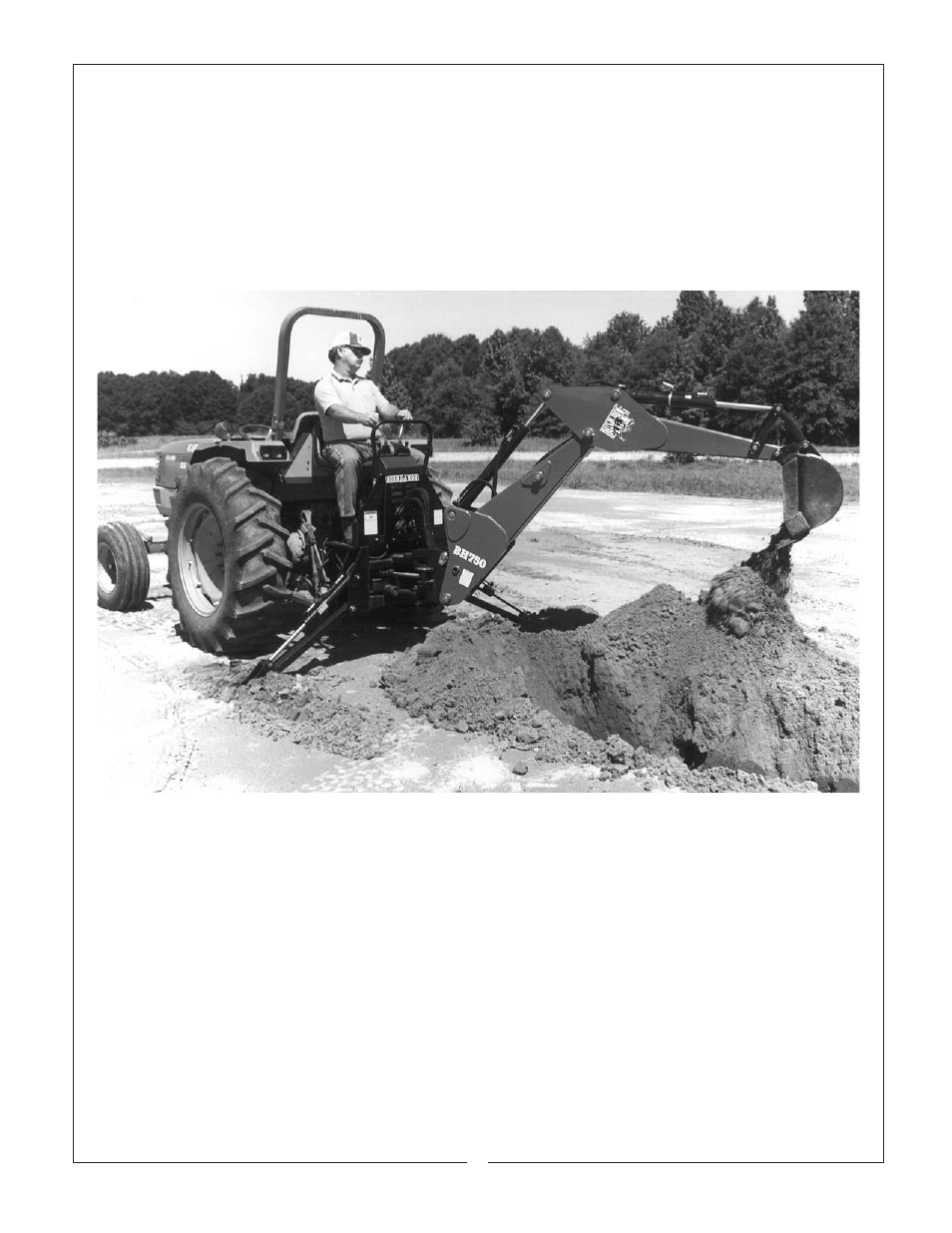

Figure 13 Ag Tractor using 3-point hitch
