Getting Started with Your Display
5
Eng
lish

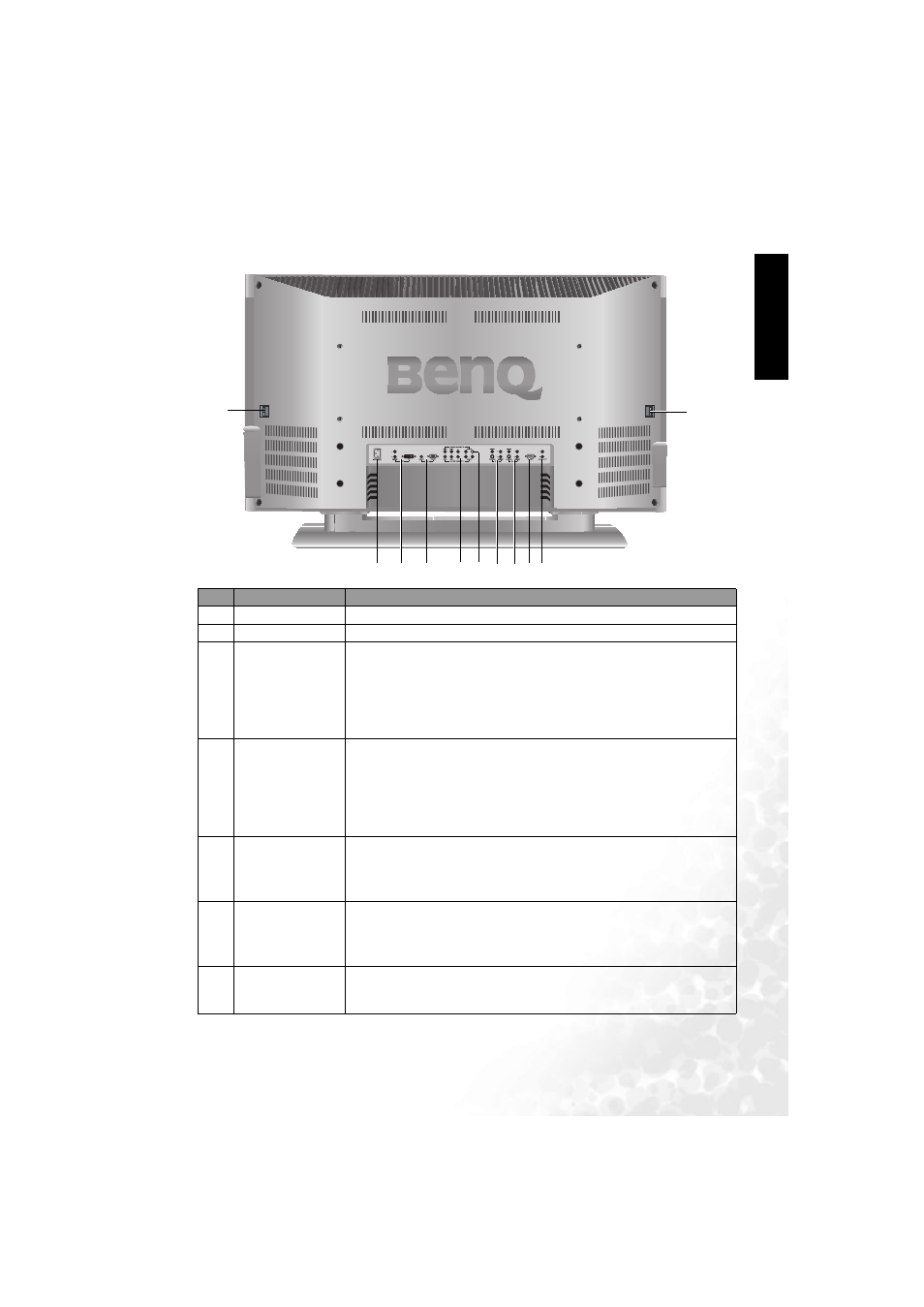

Main Unit (Rear View)
No.
Name
Description
1
AUDIO OUT (L/R) Connect the audio input of an amplifier or here.
2
RS232
This terminal is for service purpose only.
3
AV2
• V
VIDEO (Composite (AV) signal input, RCA connector): Connect the
Composite video output of your AV device here.
• A
AUDIO (Audio input, L/R): Connect the audio output of your AV device
here. This input is used common to both AV and S-VIDEO input.
• S
S-VIDEO (S-VIDEO input): Connect the S-VIDEO output of your AV
device here.
4
AV1
• V
VIDEO (Composite (AV) signal input, RCA connector): Connect the
Composite video output of your AV device here.
• A
AUDIO (Audio input, L/R): Connect the audio output of your AV device
here. This input is used common to both AV and S-VIDEO input.
• S
S-VIDEO (S-VIDEO input): Connect the S-VIDEO output of your AV
device here.
5
COMPONENT 2
• Y
Y C
B
/P
B
C
R
/P
R
(Y C
B
/P
B
C
R
/P
R
input): Connect the component image
output of your AV devices or HDTV decoder here.
• A
AUDIO (Audio input, L/R): Connect the audio output of your AV device
here.
6
COMPONENT 1
• Y
Y C
B
/P
B
C
R
/P
R
(Y C
B
/P
B
C
R
/P
R
input): Connect the component image
output of your AV devices or HDTV decoder here.
• A
AUDIO (Audio input, L/R): Connect the audio output of your AV device
here.
7
PC
• P
PC D-SUB (15-pin D-SUB computer signal input): For connecting to
PC's analog video output.
• P
PC AUDIO: For connecting to PC's audio output.
1
2
4
6
7
8
9
3
5
10
10
