14

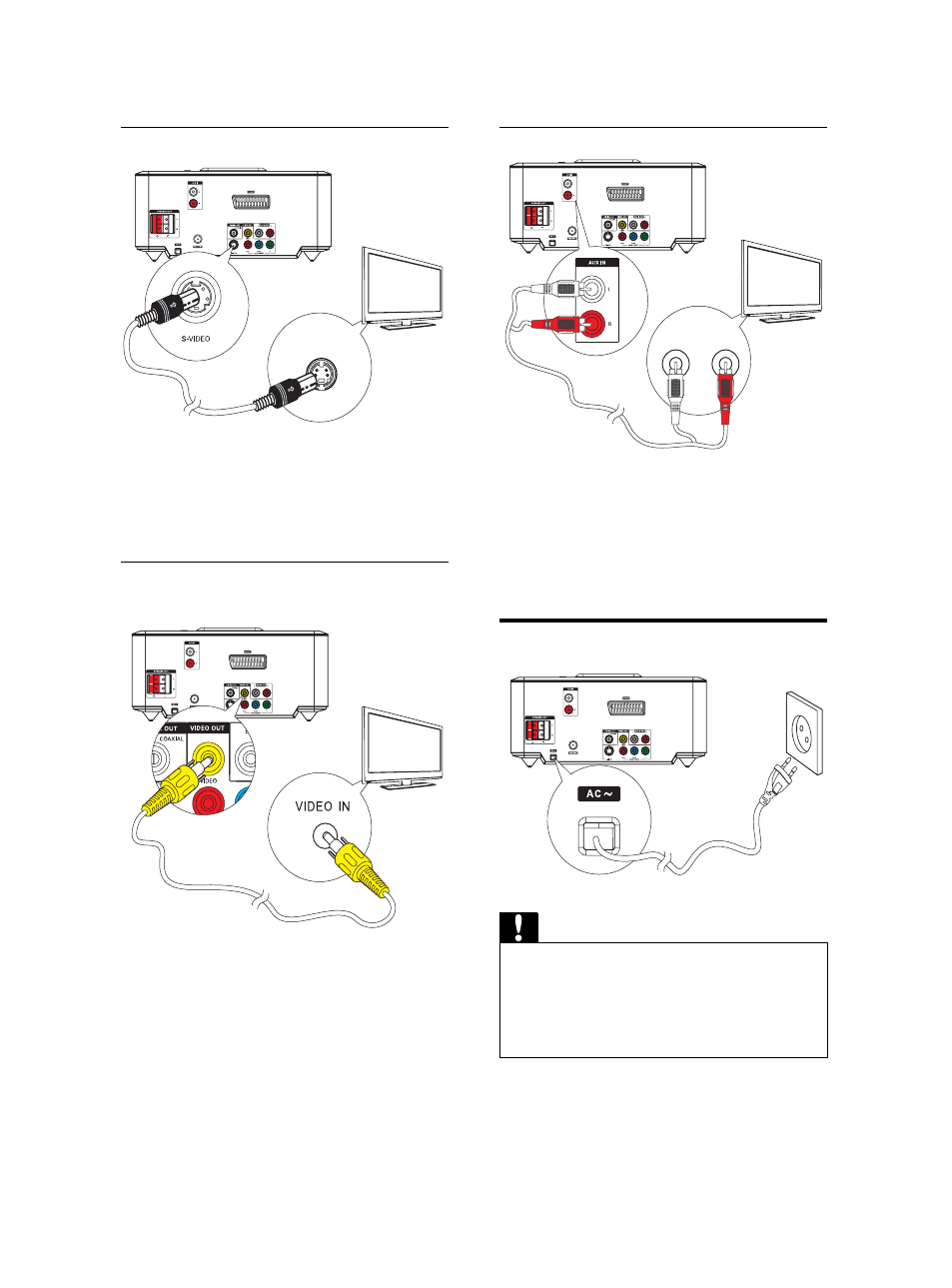

Connect audio cables
1
To play sound from the TV through this
unit, connect audio cables (red/white -
not supplied) to:
the • AUX IN L/R sockets on this unit.
the audio output sockets on the TV. •
Connect power
Caution
Risk of product damage! Ensure that the •
power supply voltage corresponds to the
voltage printed on the back or the underside
of the unit.
Before connecting the AC power cord, ensure
•
you have completed all other connections.
1
Connect the AC power cord to the wall
socket.
TV
L AUDIO OUT R
Option 3: Connect through S-Video
1
Connect an S-video cable (not supplied)
to:
the • S-Video socket on this unit.
the • S-Video socket on the TV.
Option 4: Connect through
composite video
1
Connect the supplied composite video
cable to:
the • VIDEO OUT socket on this unit.
the video input socket on the TV. •
TV
S-VIDEO IN
TV
8
EN
