SERVICING INSTRUCTIONS (continued)
18
IMPORTANT:
The two keypad ribbon cables
connectors are not polarized
and can easily be installed in
the wrong position. Be sure
to mark the ribbon cable
connectors for orientation. REPLACE CONTROLLER
Disconnect brewer from electric power. Remove top panel
Note location of wire connections. Be sure to mark the two
keypad ribbon cables as to orientation. Disconnect wiring from
controller.
Remove four nuts holding controller to cabinet.

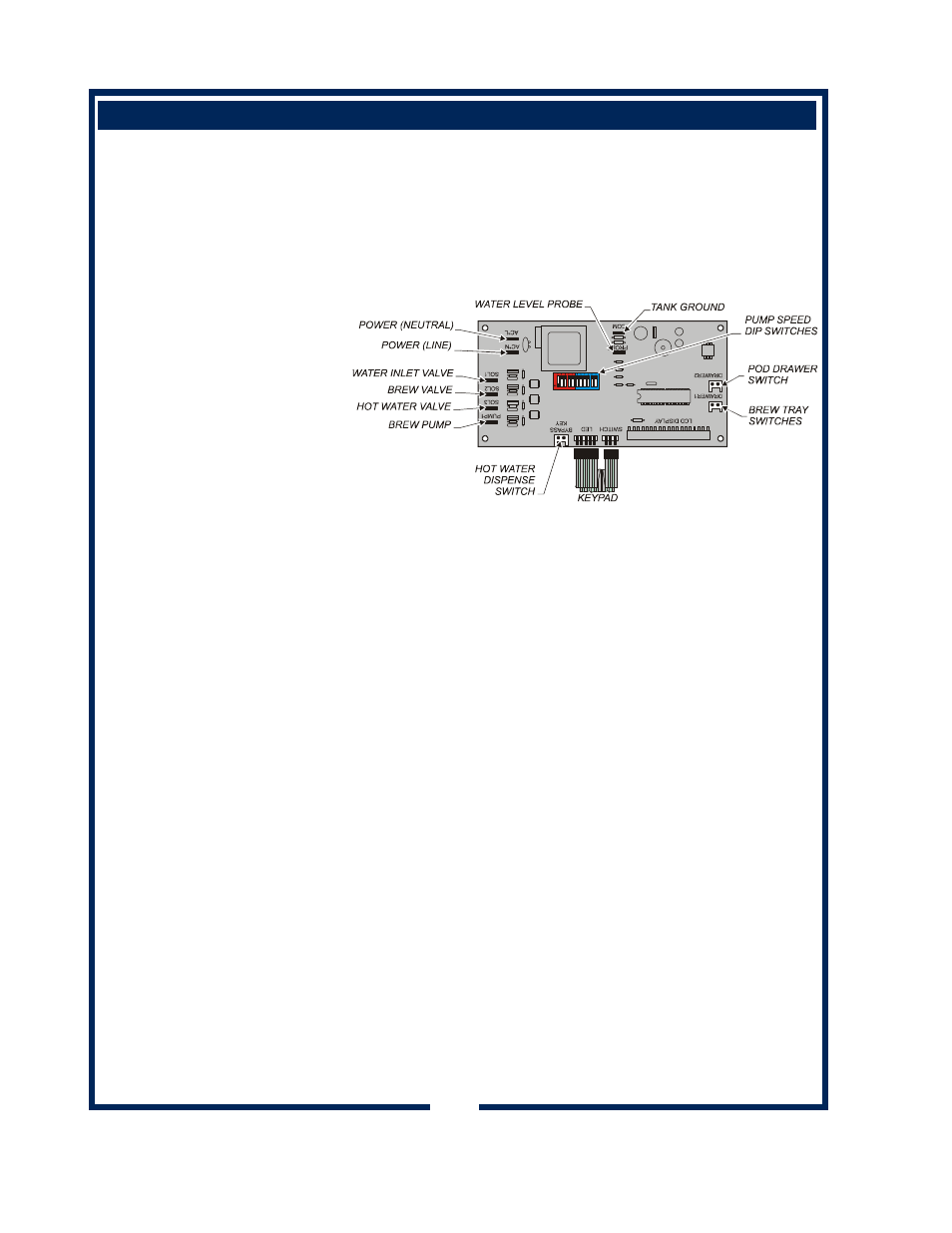

Fig. 11 Controller Wiring Configuration
Reassemble in reverse order. Be sure motor speed dip switches
are set with RED 5
ON , all others OFF .
