Bloomfield 9600 Single Cup User Manual

Page 19

SERVICING INSTRUCTIONS (continued)

CAUTION:

SHOCK HAZARD

DO NOT pour, spill or splash
water onto, into or over any
internal component.

IMPORTANT:
DO NOT use steel wool, sharp
objects, or caustic, abrasive or
chlorinated cleansers to clean
these components.

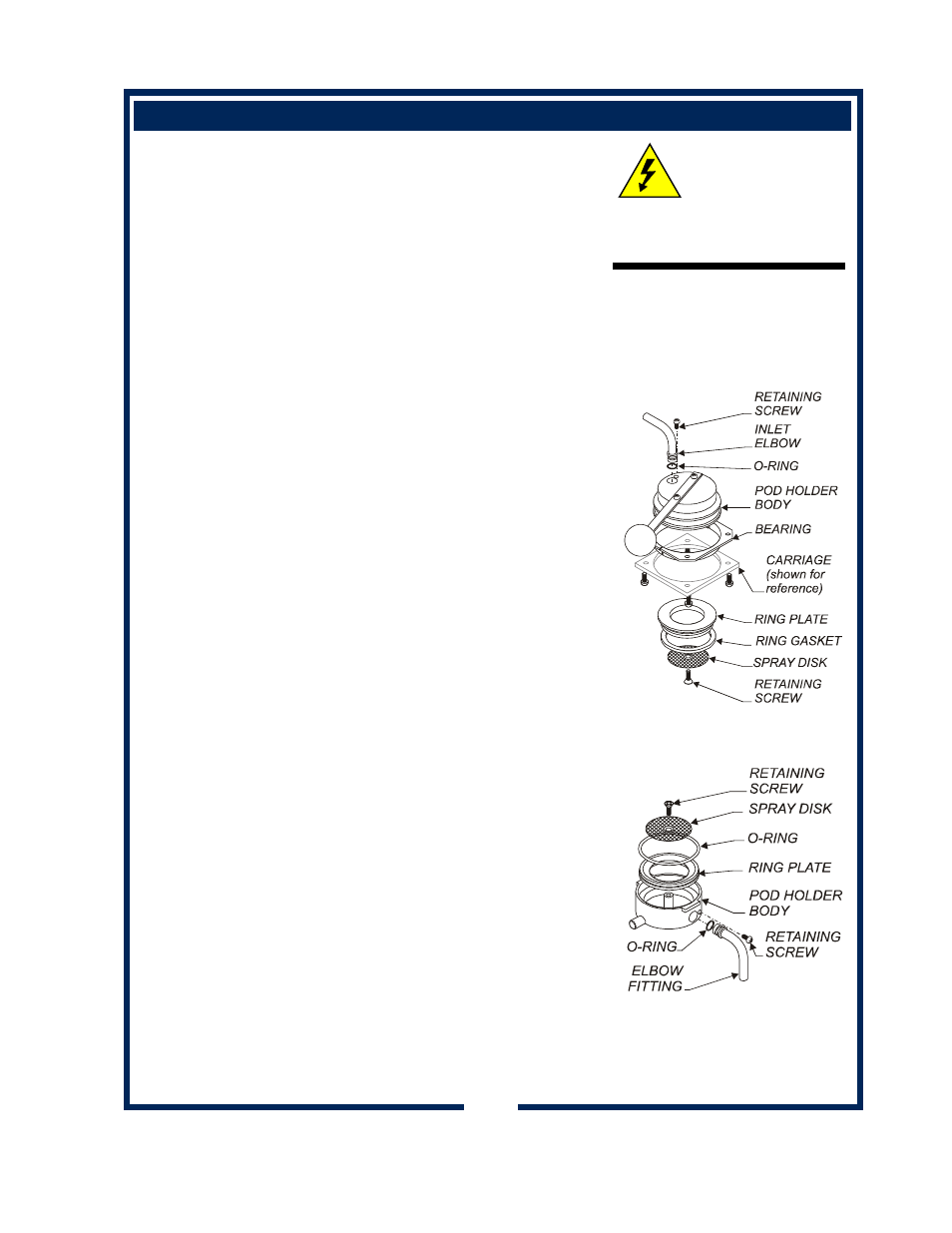

Fig. 11 Upper Pod Holder

Fig. 12 Lower Pod Holder

CLEAN UPPER POD HOLDER

Remove drip tray assembly and pod drawer. Slide brew tray fully
forward.

NOTE: Upper pod holder can be cleaned in place. It is not
normally necessary to remove the pod holder from the carriage
for cleaning.

Remove retaining screw from spray disk. Remove disk from pod
holder.

Remove upper ring plate and ring gasket from pod holder body.
If necessary, remove retaining screw and elbow fitting. Be sure
elbow fitting o-ring and ring plate o-ring are properly reinstalled
after cleaning.

Clean all components using mild detergent and clean water.
Rinse with clean water.

Reassemble In reverse order. Be sure ring gasket is fully seated
before locking pod holder halves together.

CLEAN LOWER POD HOLDER

Remove drip tray assembly. Slide brew tray fully forward.

NOTE: Lower pod holder can be cleaned in place. It is not
normally necessary to remove the pod holder from the carriage
for cleaning.

Remove retaining screw from spray disk. Remove disk from pod
holder.

Remove lower ring plate and o-ring from pod holder body.
If necessary, remove retaining screw and elbow fitting. Be sure
elbow o-ring is properly reinstalled after cleaning.

Clean all components using mild detergent and clean water.
Rinse with clean water.

Reassemble In reverse order.
