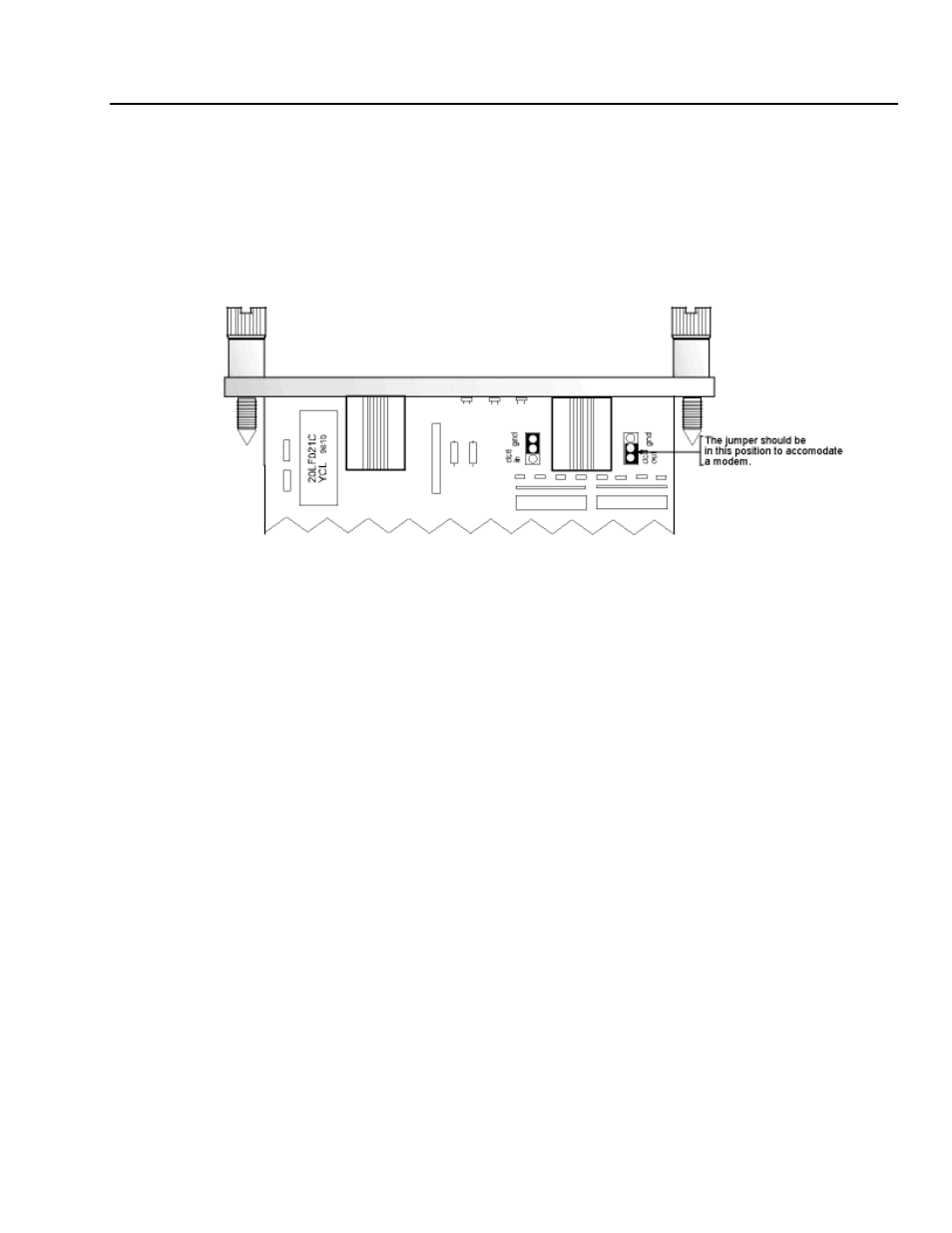

Connecting an external modem to the serial port requires a 25MRJ45MD-6 modem adapter, an
RJ08X007 crossed 8 pin modular cable, and the jumper setting on the module as shown below. For
serial port connection to the computer, the jumper should be in the opposite position.
