Rev. 1.05 - 10 -
SRP-270
3-2 Interface Cable Connection
Connect the printer with a POS system (PC, ECR, etc.) via an interface cable as shown
below.
This printer supports the following communications interface standards.
- RS-232C (Serial)
- RS-485 (Serial)
- IEEE1284 (Parallel)
- USB
1) Turn off the power switch on both the printer and the POS system (PC, ECR, etc.).
2) Connect the interface cable to the printer interface connector.
- For a Serial cable, secure by tightening the screws on both sides.
- For a Parallel cable, secure by fastening the clips on both sides.

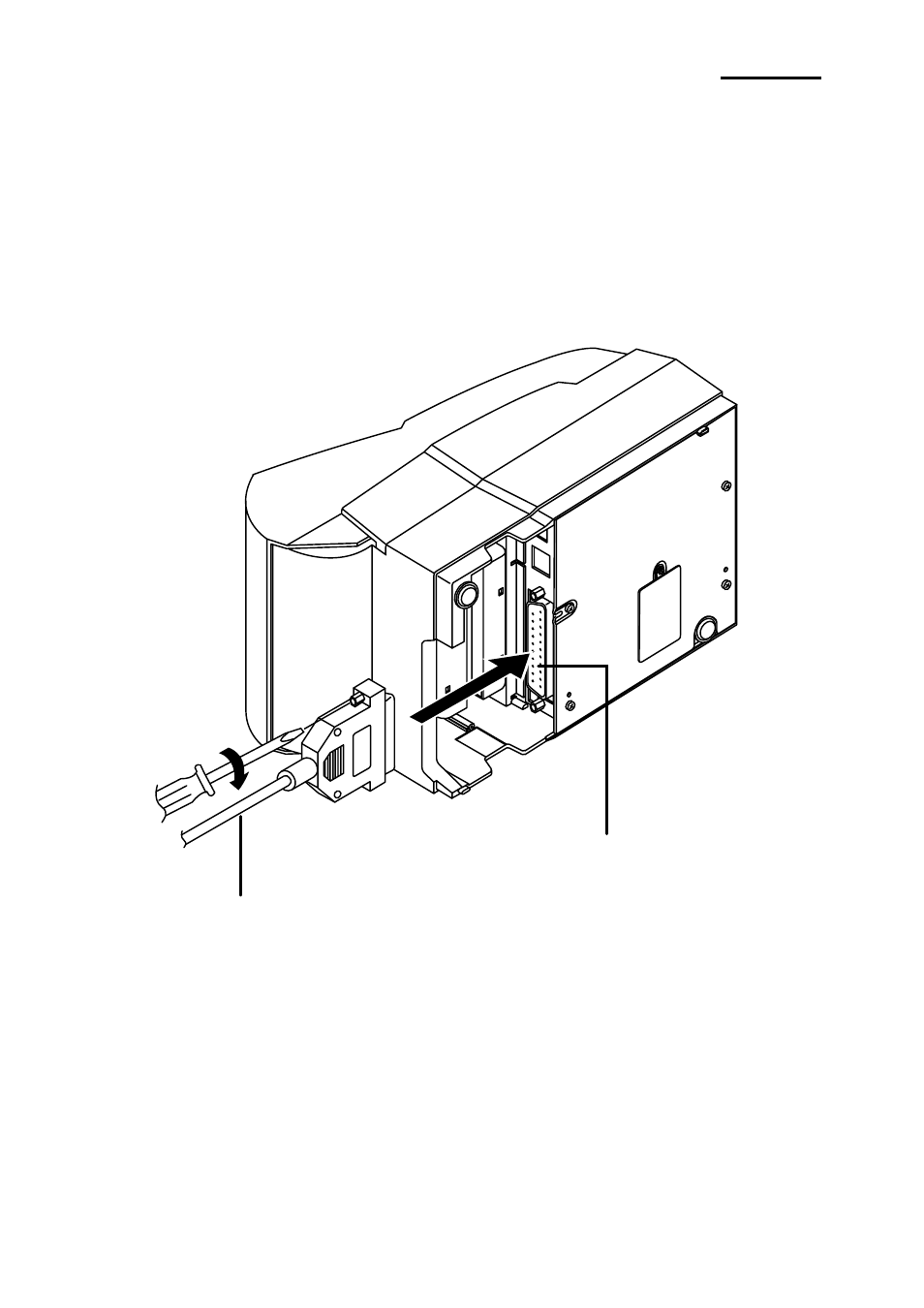

Interface Cable
Interface Connector
