Choose a good, cleared assembly
area and get a friend to help you put
your grill together. Lay cardboard
down to protect grill finish and
assembly area.
CAUTION: Some parts may
contain sharp edges.
Wear protective gloves
if necessary.

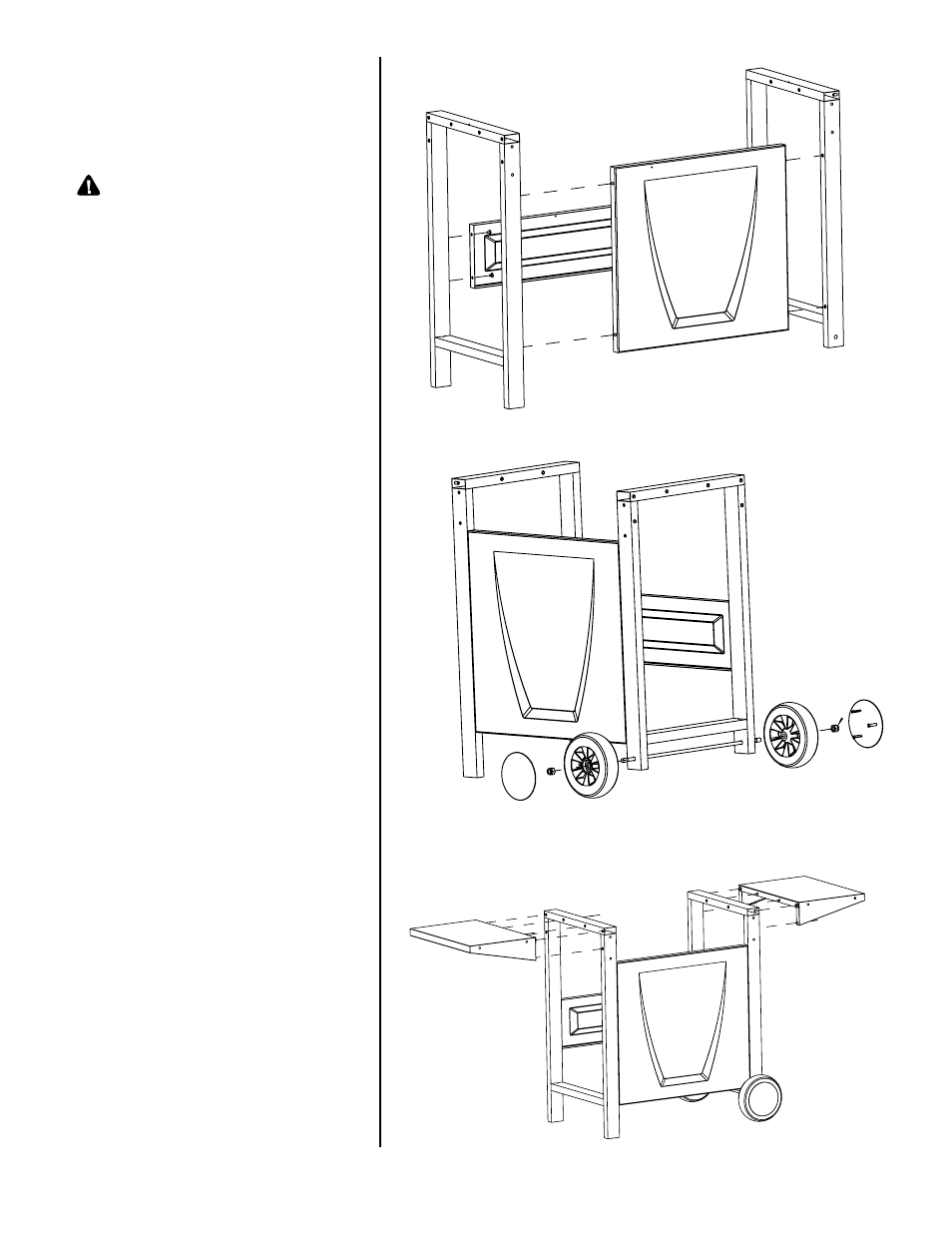

Step 1
Assemble front panel, back panel,
right leg frame and left leg frame
using eight M5 X 12mm bolts as
illustrated.
Step 2
Remove the M10 lock nuts from
each end of the axle. Install the
wheels by inserting the wheel
axle through right side leg frame
axle holes. Insert wheels over
axle and secure wheels with M10
lock nuts. Then attach hubcaps to
wheels as shown.
Step 3
Attach right side table to right leg
frame using six M5 X 12mm bolts.
Repeat for left side table.
