Brinkmann Charcoal Grill User Manual
Page 10

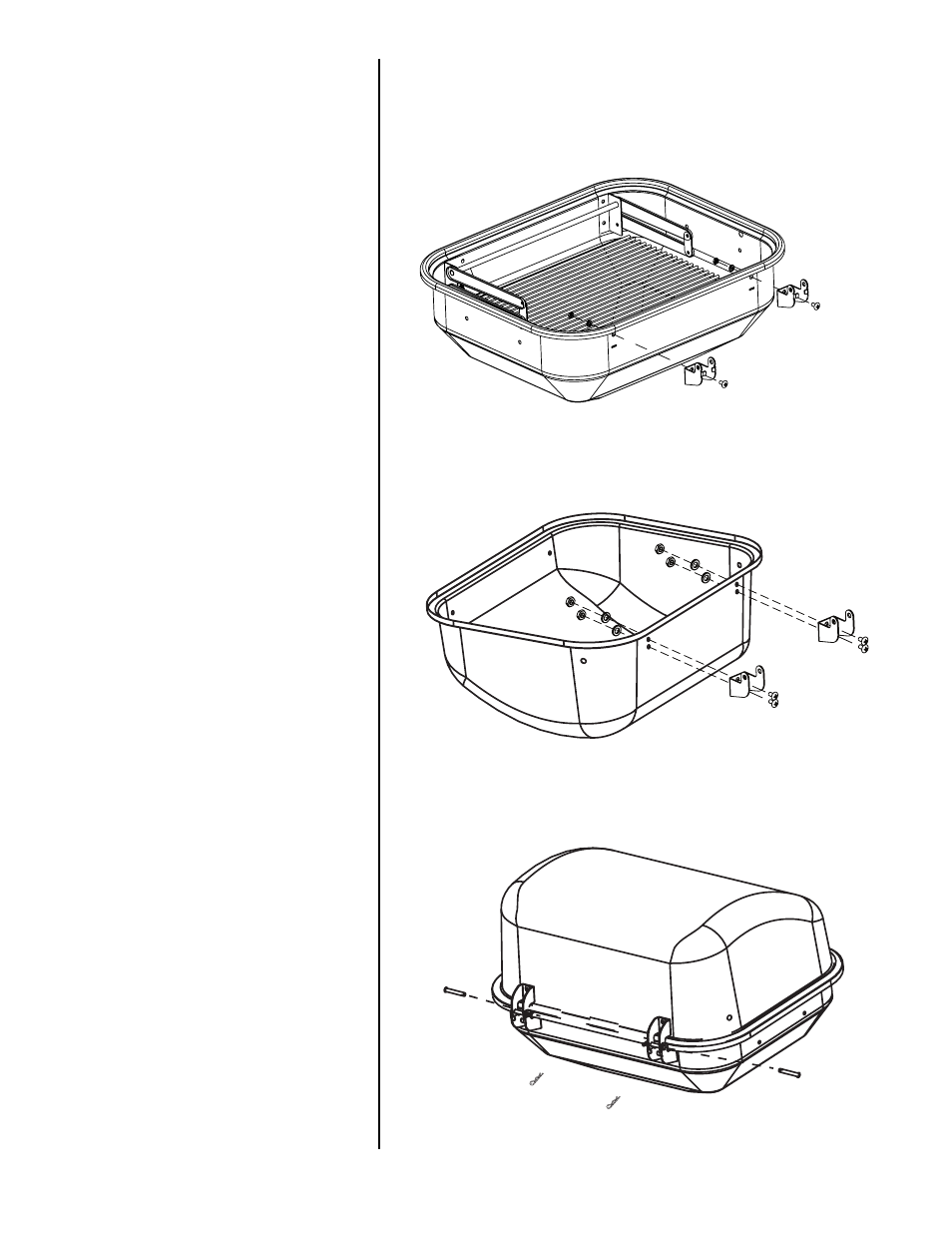

Step 6
Attach grill body hinges to grill body
using two M6 X 12mm bolts, M6
washers and M6 nuts.
Step 7
Attach hood hinges to hood using
four M6 X 12mm bolts, M6 washers
and M6 nuts.
Step 8
Set grill hood on grill body, align the
hinge holes. Insert the hinge pins
through holes and secure hinge
pins with cotter pins.
9
