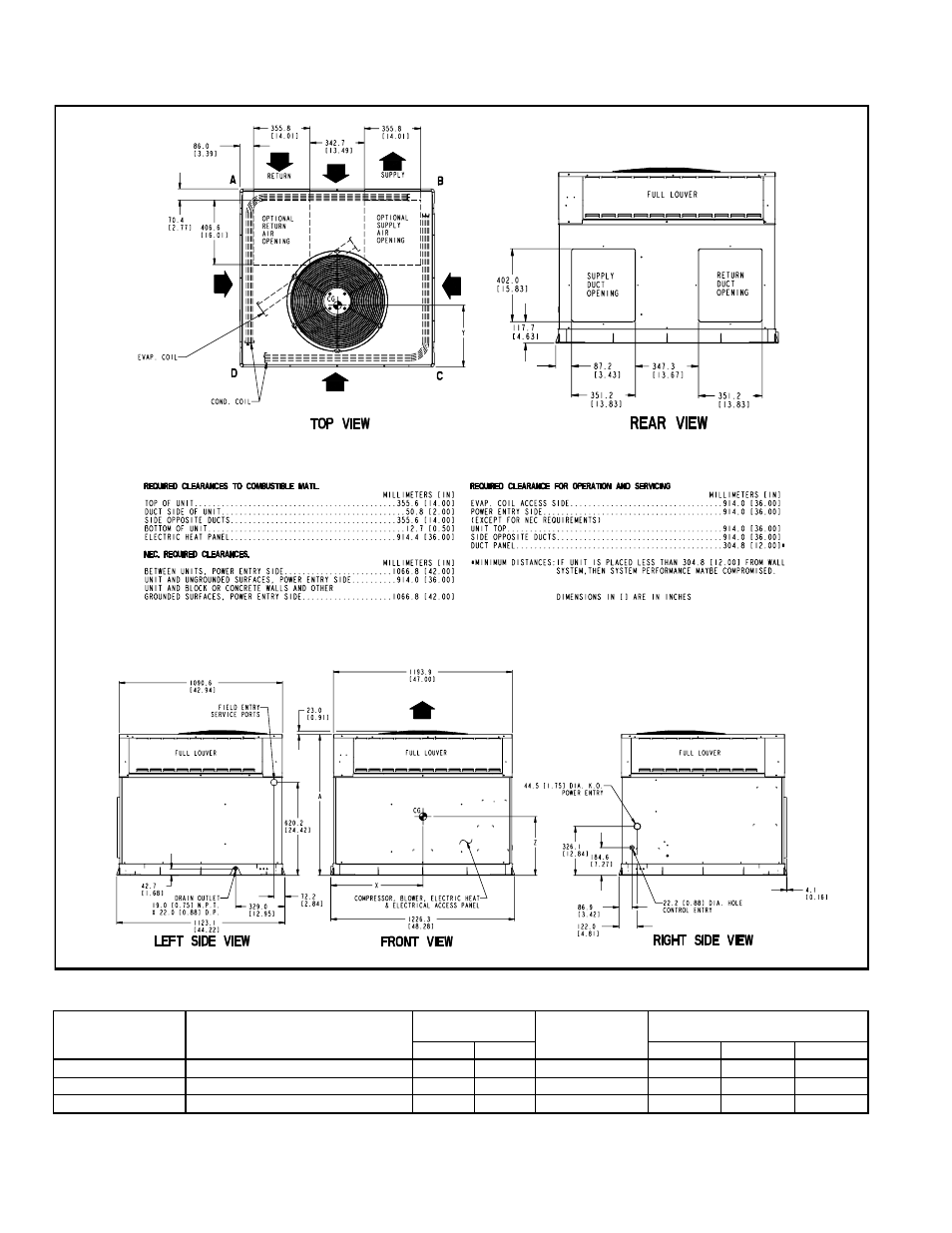

BASE UNIT DIMENSIONS – 702B042-060
UNIT
ELECTRICAL
CHARACTERISTICS
UNIT WEIGHT
UNIT HEIGHT
in. [mm]
“A”
CENTER OF GRAVITY
in. [mm]
lb kg X Y Z
702B042 208/230-1-60, 208/230-3-60, 460-3-60 321 146 38.98 [990.2] 20.5 [520.7] 16.8 [425.5] 16.6 [421.6]
702B048 208-230-1-60, 208/230-3/60, 460-3-60 326 148 38.98 [990.2] 19.5 [495.3] 17.6 [447.6] 18.0 [457.2]
702B060 208/230-1-60, 208/230-3-60, 460-3-60 399 181 42.98 [1091.7] 20.5 [520.7] 16.2 [412.8] 17.6 [447.0]
702B 042-060 Dimensions
