Manually Configuring your Router
25
se
ct
io
n
2
1
3
4
5
6
7
8
9
10

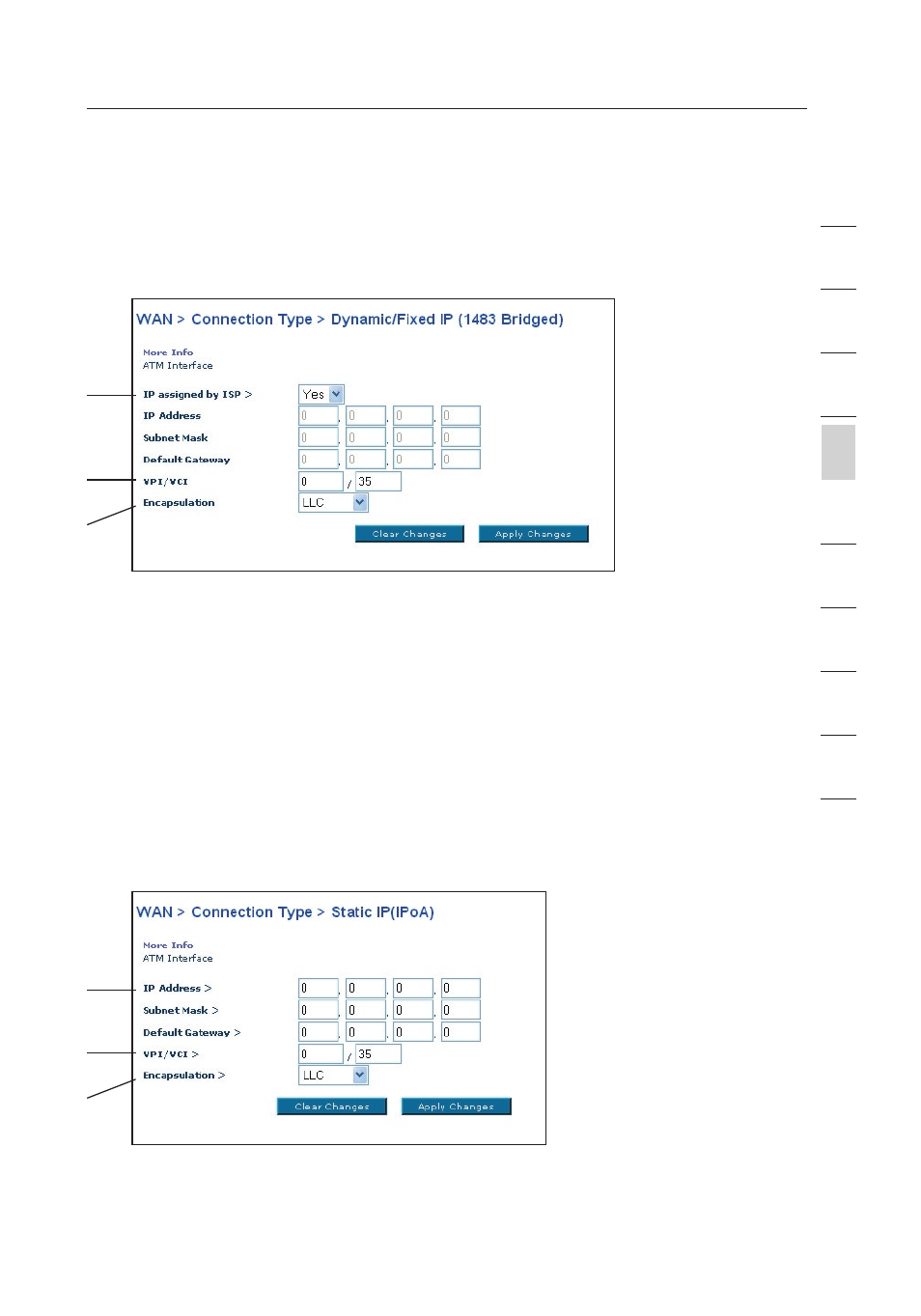

Setting your Connection Type to Dynamic IP (1483 Bridged)
This connection method bridges your network and ISP’s network together.
The Router will obtain IP address automatically from your ISP’s DHCP server.
1. IP Assigned by ISP
– Leave “Yes” if your ISP automatically
assigns IP address. If your ISP assigned a fixed IP address,
select “No” and enter assigned values.
2. VPI/VCI
- Enter your Virtual Path Identifier (VPI) and Virtual
Circuit Identifier (VCI) parameter here. These identifiers are
assigned by your ISP.
3. Encapsulation
- Select LLC or VC MUX your ISP uses.
Setting your ISP Connection Type to Static IP (IPoA)
This connection type is also called “Classical IP over ATM” or “CLIP”, which
your ISP provides a fixed IP for your Router to connect to the Internet.
1. IP Address
– Enter an IP address assigned by your ISP for the
Router WAN interface.
1)
2)
3)
1)
2)
3)
