- 7 -

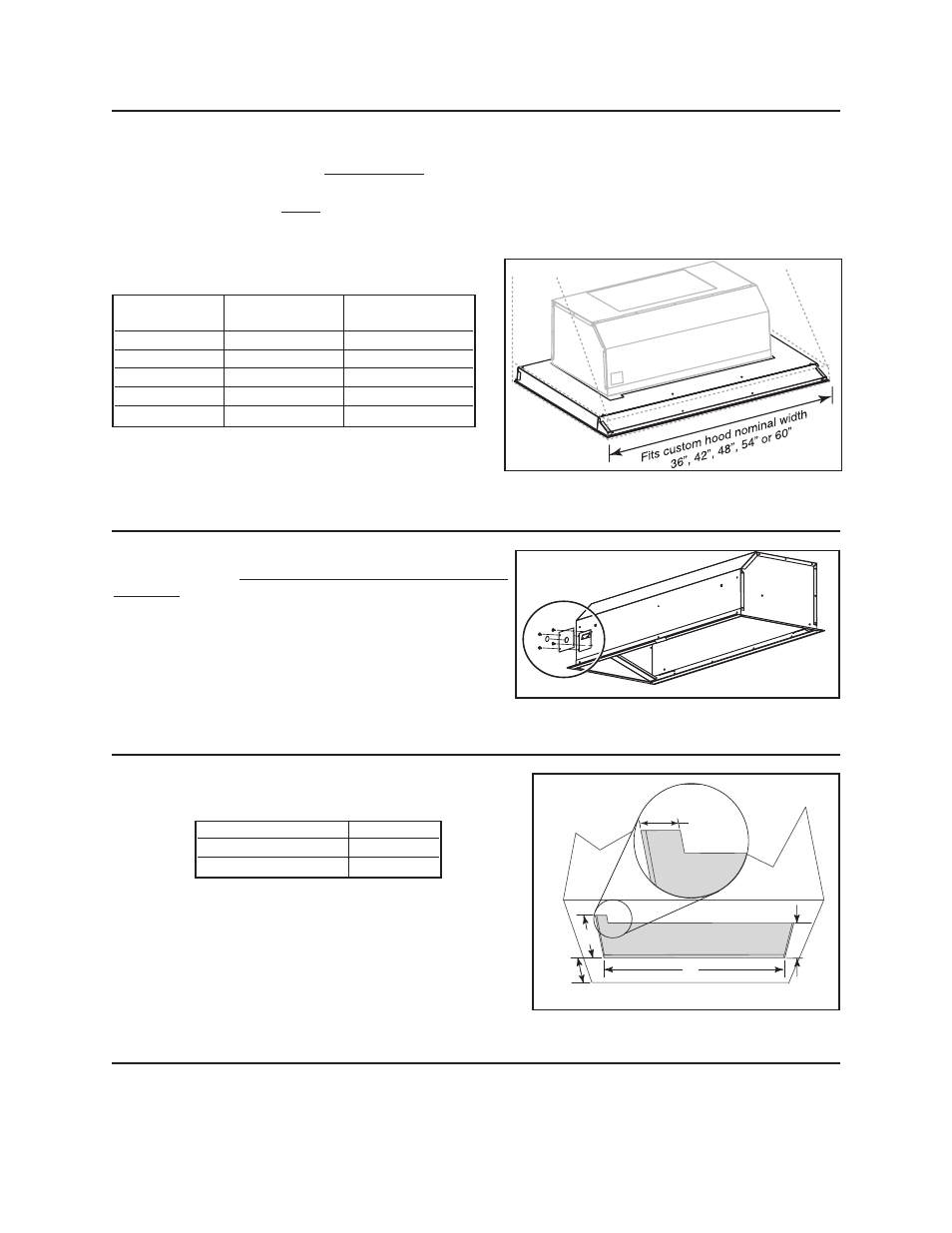

8. CUT THE HOLE IN CUSTOM HOOD BASE
If it is not done yet, cut a hole in the bottom of the cabinet, using
the dimensions shown beside.
NOTES: 1. The notch shown in the inset must be cut only if the
RMIPWC optional remote control will be installed.
2. The recommended distance from the back to the
rearmost cutout edge is 2 1 /
4
’’ minimum.
A
17 1/16''
HD0084
3 1/2''
16 3/8''
2 1/4''
min.
INSERT MODEL NUMBER A
RMIP33 32 1 /
2
’’
RMIP45 44 1 /
2
’’
6. INSTALL CUSTOM HOOD LINER (OPTIONAL)
The liners are specially designed to protect the exterior base of the custom hood. To order, refer to the table below to
find the right liner model number for your insert and width of custom hood. To view specific model information, including
depths for each liner models, visit www.broan.com or contact Technical Support (phone number listed on front cover).
To install, see instruction packed with custom hood liner.
The liner must be installed before the insert.
NOTE:
On some liners models, front liner piece may overlap front insert flange. If so, remove the front liner piece,
assemble insert, and reassemble front liner piece.
LINER MODEL INSERT MODEL CUSTOM HOOD
NOMINAL WIDTH
RML3336S RMIP33 36’’
RML3342S RMIP33 42’’
RML4548S RMIP45 48’’
RML4554S RMIP45 54’’
RML4560S RMIP45 60’’
HA0038A
The electrical connection for the remote control is located in
front of the insert. Perform this connection before the insert
installation. For installation details, see installation instructions
included with the RMIPWC remote control.
7. INSTALL THE RMIPWC REMOTE CONTROL (OPTIONAL)
HL0044
9. INSTALL BLOWER (INTERIOR OR EXTERIOR BLOWER)
INTERIOR BLOWER: Follow all subsequent steps of this manual.
EXTERIOR BLOWER: Refer to instructions packed with exterior blower and follow steps 13, 14, 16, 17, 19 and
up of this manual.
