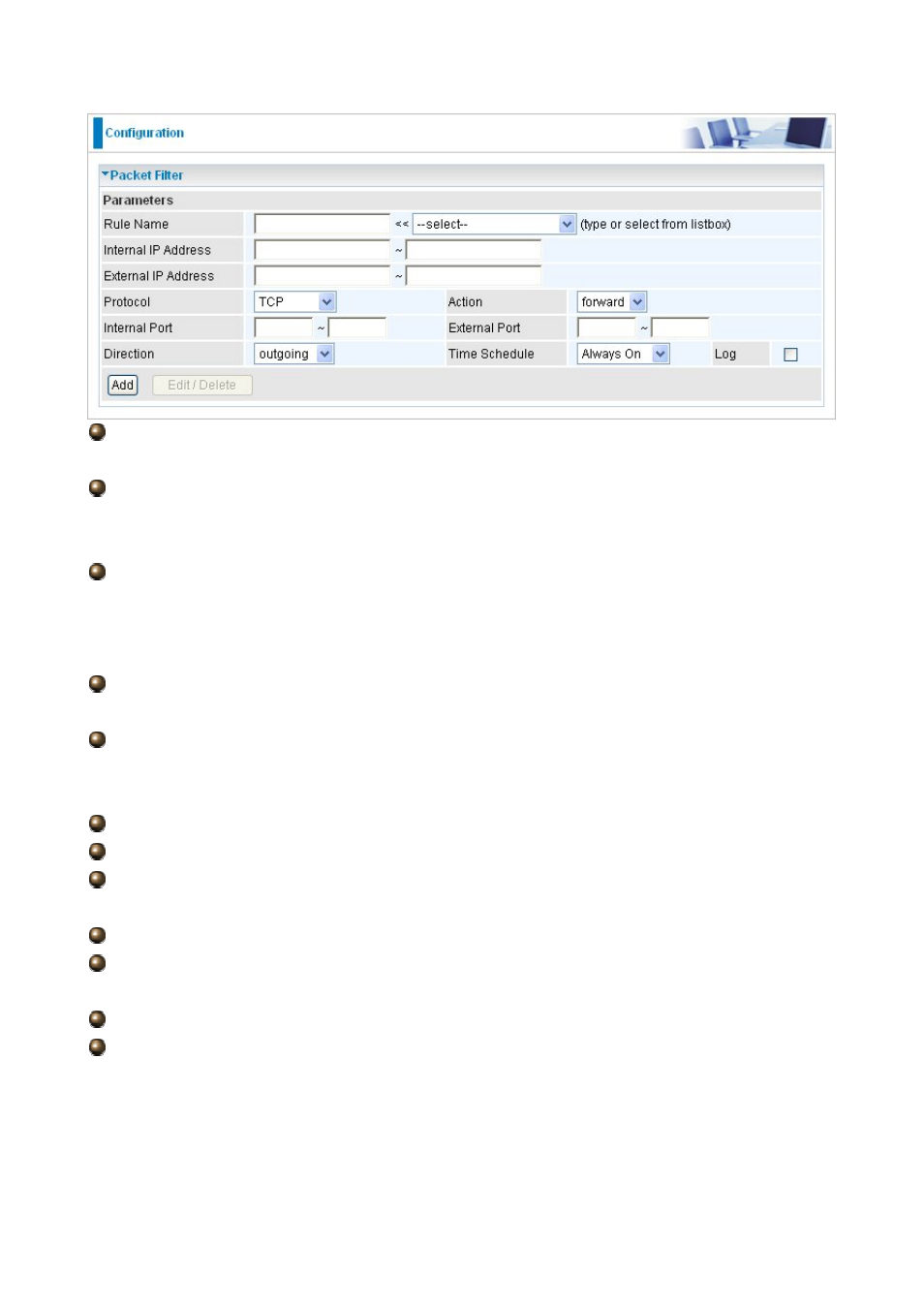

Rule Name: Users-define description to identify this entry. The maximum name length

is 32 characters, and then can choose application that they want from listbox.

Internal IP Address / External IP Address: This is the Address-Filter used to allow or

block traffic to/from particular IP address(es). Input the range you want to filter out. If you

leave empty or 0.0.0.0, it means any IP address.

Protocol: Specify the packet type (TCP, UDP, ICMP, etc.) that the rule applies to.

Select TCP if you wish to search for the connection-based application service on the

remote server using the port number. Or select UDP if you want to search for the

connectionless application service on the remote server using the port number.

Action: If a packet matches this filter rule, Forward (allows the packets to pass) or

Drop (disallow the packets to pass) this packet.

Internal Port: This Port or Port Range defines the ports allowed to be used by the

Remote/WAN to connect to the application. Default is set from range 0 ~ 65535. It is

recommended that this option be configured by an advanced user.

External Port: This is the Port or Port Range that defines the application.

Direction: Determine whether the rule is for outgoing packets or for incoming packets.

Time Schedule: It is self-defined time period. You may specify a time schedule for your

prioritization policy. For setup and detail, refer to Time Schedule section.

Log: Choose “log” if you wish to generate logs when the filer rule is applied to a packet.

Add: Click this button to add a new packet filter rule and the added rule will appear at

the bottom table.

Edit: Check the Rule No. you wish to edit, and then click “Edit”.

Delete: Check the Rule No. you wish to delete, and then click “Delete”.
