Page 54
9.
Seat the memory module cover in place and secure it with the screw.
Take care to ensure that the memory module cover is firmly closed.
10. Install the battery pack.
11. Turn your computer over.
Installing a memory module
To install a memory module, follow the steps as detailed below:
1.
Shut down the computer - make sure the Power indicator is off (refer
to the
section in Chapter 1, Getting Started if
required).
2.
Remove the AC adaptor and all cables and peripherals connected to
the computer.
3.
Close the display panel.
4.
Turn the computer upside down and remove the battery pack (refer to
section in Chapter 5, Power and Power-Up
Modes, if required).
5.
Loosen the screws securing the memory module cover in place -
please note that the screws are attached to the cover in order to
prevent them from being lost.
Use a point size 0 Phillips screwdriver.
6.
Slide your fingernail or a thin object under the cover and lift it off.

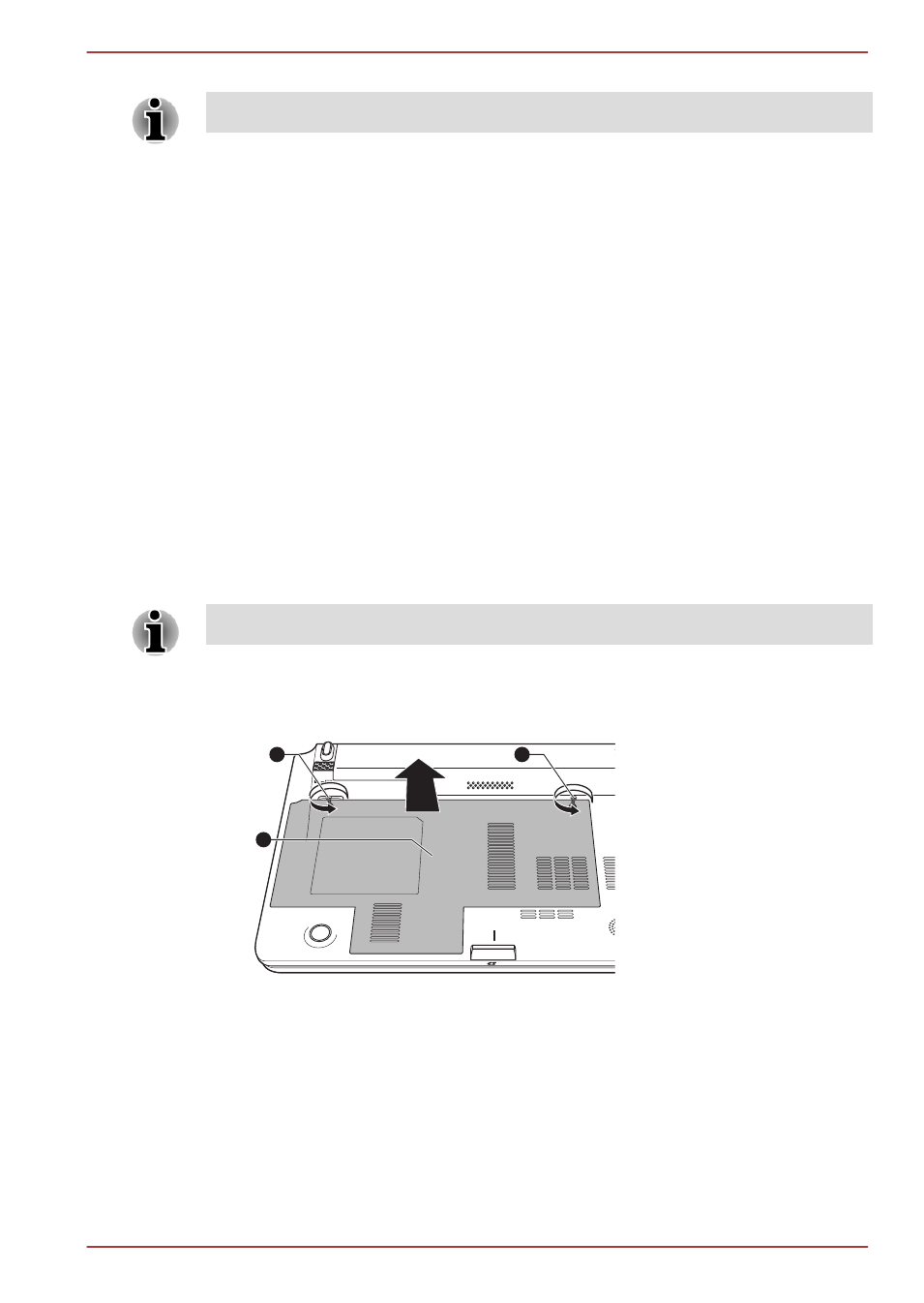

Figure 3-11 Removing the memory module cover
2
1
1
1. Screws
2. Memory module cover
NB520 series
User's Manual
3-20
