48
ASSEMBLY
For your own safety, do not connect the
machine to the power source until the machine is
completely assembled, and you read and understand
the entire instruction manual.

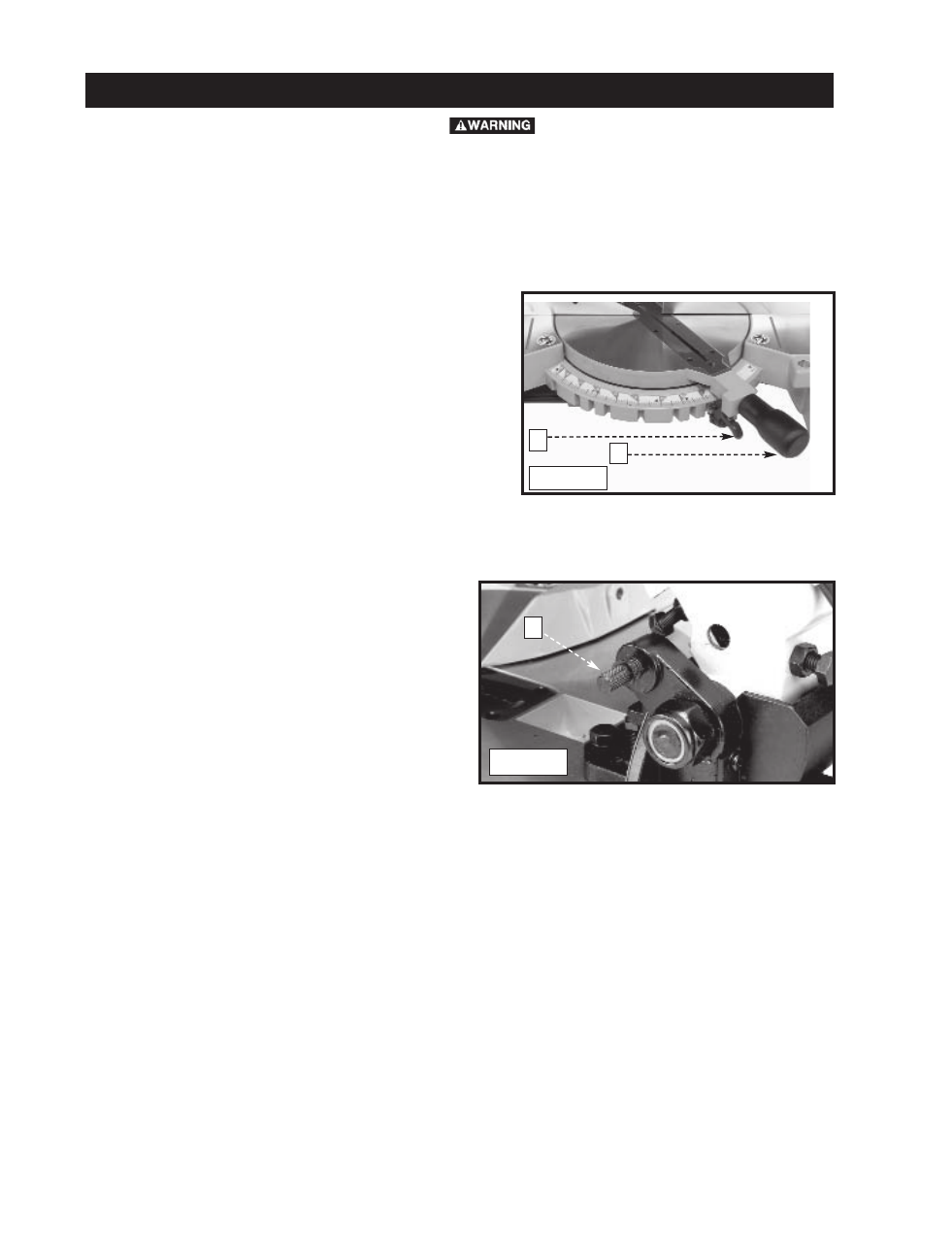

ROTATING TABLE
Loosen the table-lock handle one or two turns. Raise the index
lever (B) Fig. 3 and rotate the table to the desired position.
Tighten the table-lock handle.
B
A
Fig. 3
MOVING CUTTINGHEAD TO THE UP POSITION
1. Push down on the cuttinghead and pull out the
cuttinghead lock knob (A) Fig. 4.
2. Move the cuttinghead to the up position.
A
Fig. 4
ASSEMBLY TOOLS REQUIRED
(Supplied)
* 5mm hex wrench
* 1/8” hex wrench
* 1/2” blade wrench
(Not supplied)
* Phillips head screwdriver
* A square to make adjustments
