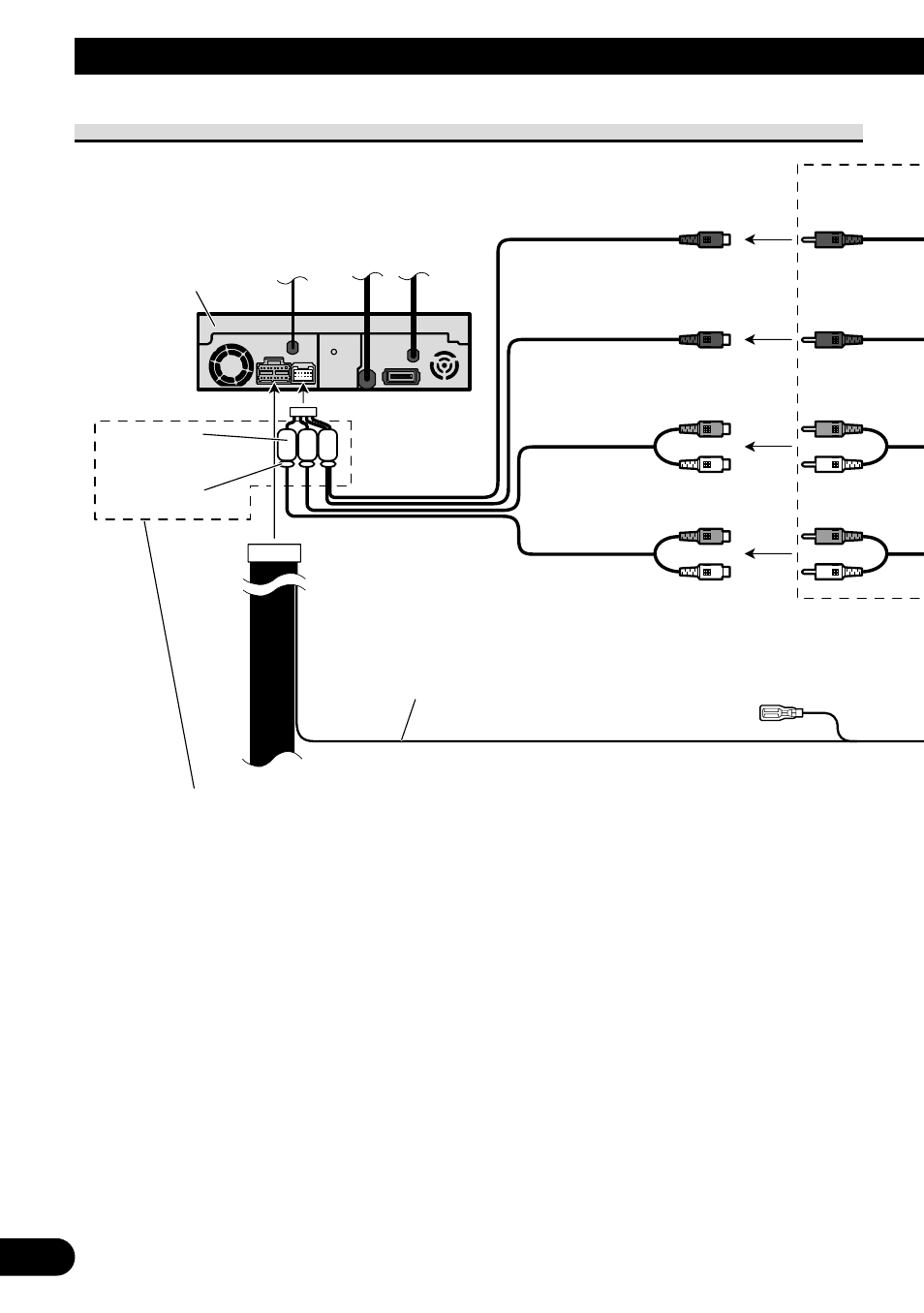

When connecting to separately sold power amp
7
Connecting the Units
Blue/white
To system control terminal of the power amp
(max. 300 mA 12 V DC).
This product
Front output
(FRONT OUTPUT)
Subwoofer output
(SUBWOOFER OUTPUT)
Rear output
(REAR OUTPUT)
15 cm
23 cm
15 cm
Center output
(CENTER OUTPUT)
23 cm
Noise filter
(small)
Lock tie
See the section “Attaching the
noise filters”.
