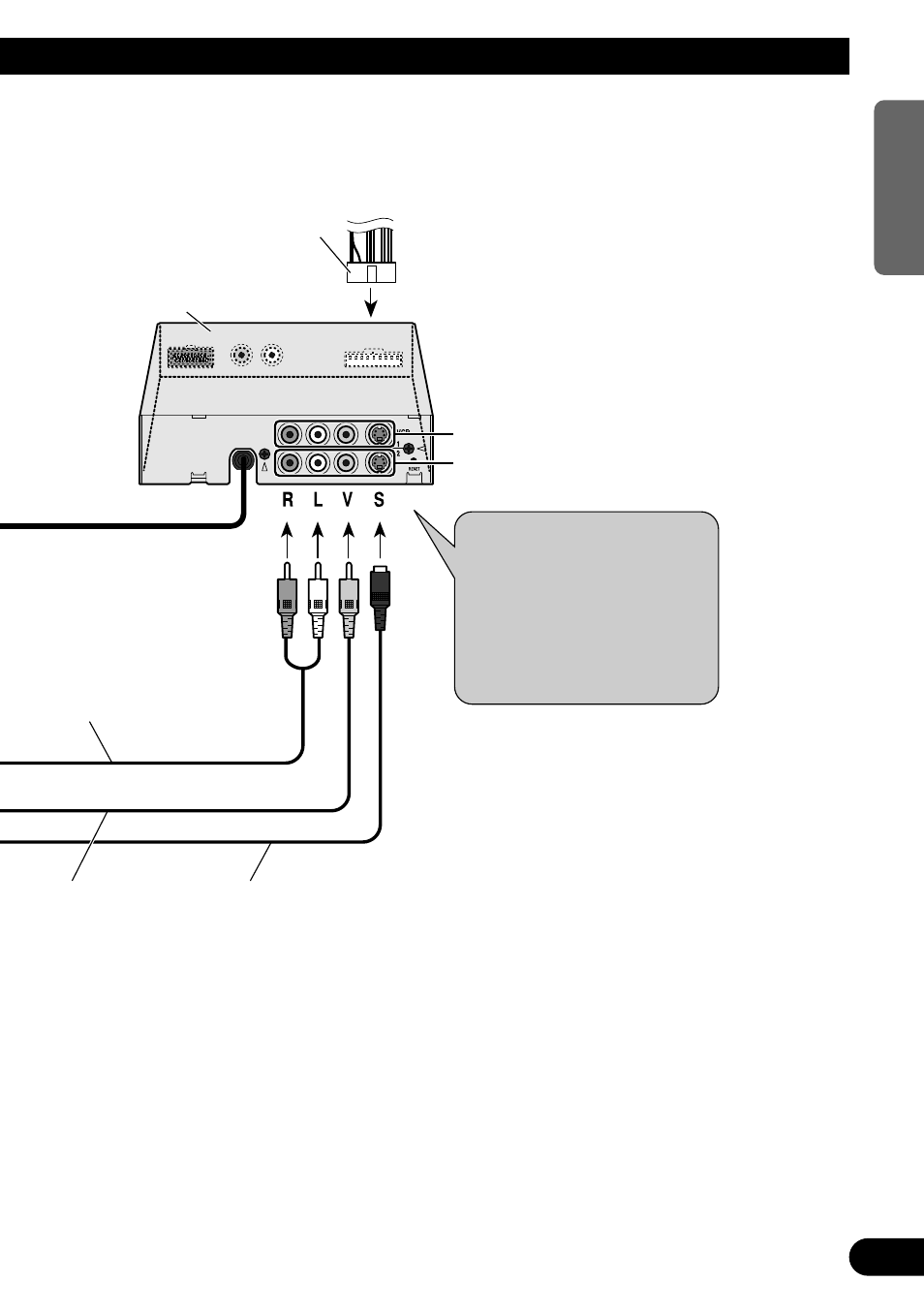

Power cable
(Refer to page 28)
VCR1 INPUT
VCR2 INPUT
Hide-away Unit
To VCR1 or VCR2
Commercial RCA audio
cable (white, red)
Commercial S-VIDEO
cable Commercial RCA video
cable (yellow)
3 m
• It is necessary to set to
[S-VIDEO] in the [INPUT-
SETTING] when connecting
to S-VIDEO
(Refer to page 21)
• It is necessary to set [INPUT-
SETTING] for VCR2 when
audio or video is applied to
VCR2 (Refer to page 21).
