Rear view camera
The navigation system features a function that
automatically switches to the full-screen
image of the rear view camera installed on
your vehicle. When the gearstick is in the RE-
VERSE (R) position, the screen automatically
switches to full-screen rear view camera
image.
Camera for Rear view mode
Rear view can be displayed at all times (e.g.
when monitoring an attached trailer, etc.) as a
split screen where map information is partially
displayed. Please be aware that with this set-
ting, camera image is not resized to fit, and
that a portion of what is seen by the camera is
not viewable.
= For details, refer to Setting for rear view
camera on this page.
Setting for rear view camera
CAUTION
Pioneer recommends the use of a camera which
outputs mirror reversed images, otherwise the
screen image may appear reversed.
p Immediately verify whether the display
changes to a rear view camera image when
the gearstick is moved to REVERSE (R)
from another position.
p When the screen changes to full-screen
rear view camera image during normal
driving, switch to the opposite setting in
“Polarity”.
1 Display the
“System Settings” screen.
= For details, refer to Displaying the screen for
system settings on page 143.
2 Touch [Back Camera].
The
“Back Camera Settings” screen appears.
3 Touch [Camera].
This changes the setting to
“On”.
p You can only switch to “Rear View” if this
setting is
“On”.
= For details of the operation, refer to Switch-
ing the view mode on page 26.
4 Touch [Polarity] to select an appropriate
setting for polarity.
Each time you touch [
Polarity] switches be-
tween the following polarity:
! Battery: When the polarity of the con-
nected lead is positive while the gearstick is
in the REVERSE (R) position
! GND: When the polarity of the connected
lead is negative while the gearstick is in the
REVERSE (R) position
5 Touch [OK].
The settings are completed.
When the gearstick is moved to the REVERSE
(R) position after setting the rear view camera,
the rear view image appears.

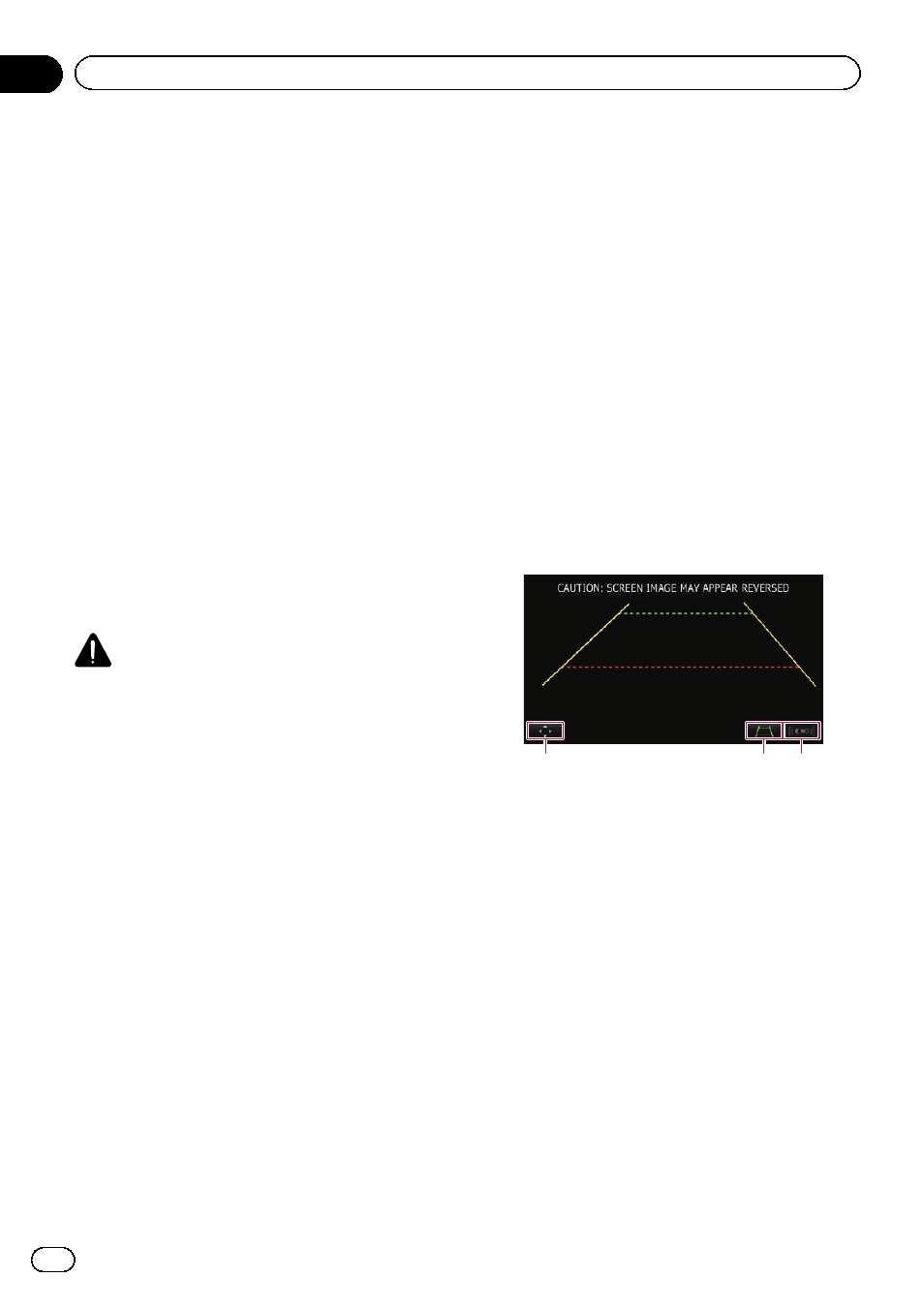

1 2 3
1 Switches the display to the setting screen
for guidelines.
p This key only appears when the guide-
lines are displayed.
= For details of the operations, refer to Set-
ting guidelines on the rear view image on
the next page.
2 Each touch of the key switches between
displaying and hiding the guidelines.
p When you display the guidelines, the
guidelines for vehicle width and for dis-
tance appear.
3 Switches the display to the “Parking Assist”
screen.
p Because the Vehicle Bus adapter cannot
be connected to this product, this key is
always inactive.
Engb
150
Chapter
27 Customising preferences
