Connecting a TV
See Connecting an AV receiver or amplifier on page 17 to
connect an AV receiver or amplifier using an HDMI cable.
Caution
• Hold the plug when connecting and disconnecting
the cable.
• Placing a load on the plug could result in faulty
contact and no video signals being output.
Connecting an AV receiver or
amplifier
Connect to an AV receiver or amplifier in order to enjoy
the surround sound of Dolby TrueHD, Dolby Digital Plus,
Dolby Digital, DTS-HD Master Audio, DTS-HD High
Resolution Audio, DTS Digital Surround, LPCM, AAC or
DSD. For instructions on connecting the TV and speakers
to the AV receiver or amplifier, refer to the operating
instructions for AV receiver or amplifier.
Caution
• Hold the plug when connecting and disconnecting
the cable.
• Placing a load on the plug could result in faulty
contact and no video signals being output.

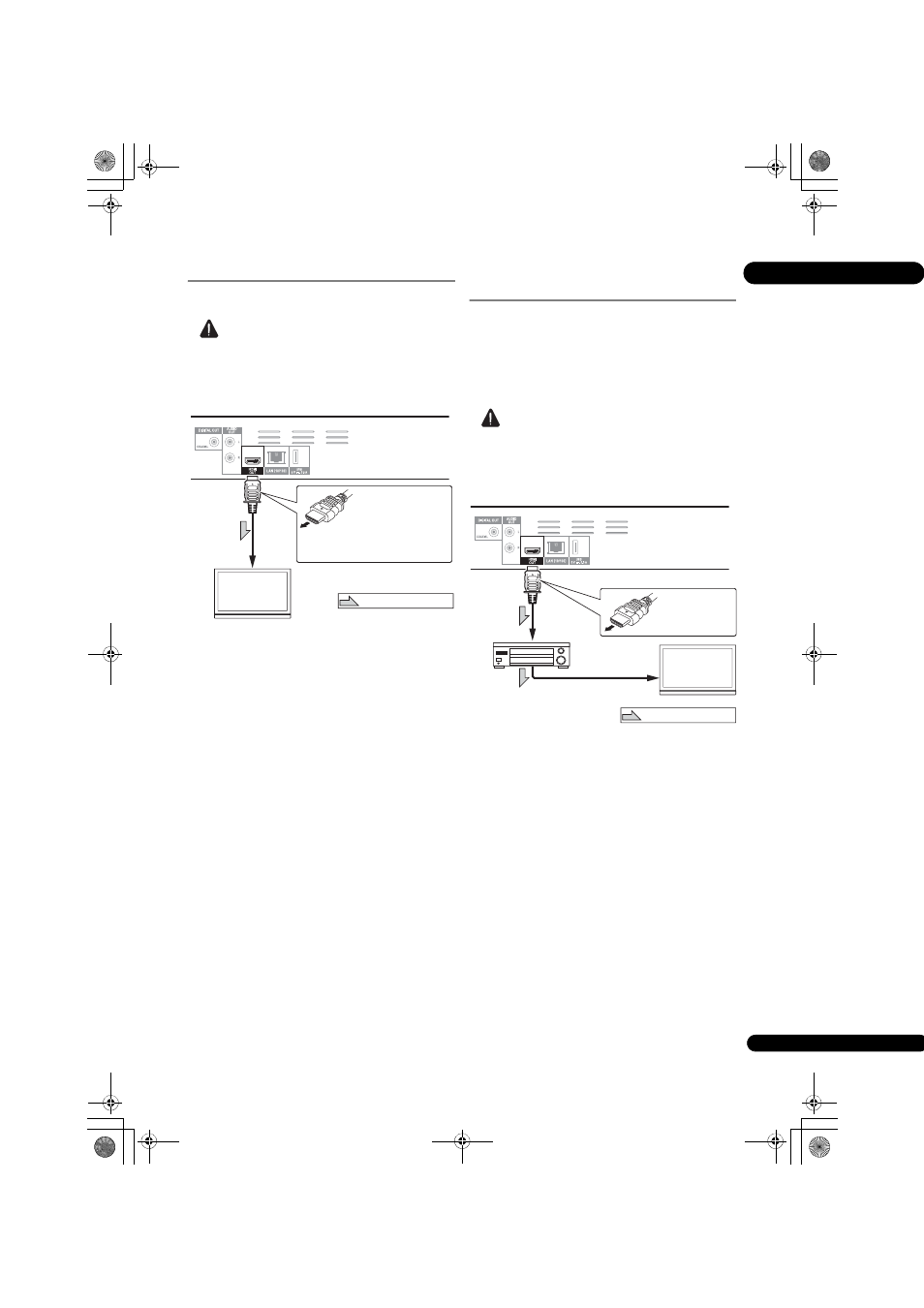

Rear panel
TV
Match the direction of
the plug to the terminal
and insert straight.
To HDMI
input terminal
HD
M
I cable
(c
ommerc
ially
av
ailable)
It is also possible to connect to an
AV receiver or amplifier using an
HDMI cable.
Direction of signal flow
Rear panel
To HDMI
input terminal
From HDMI
output
terminal
AV receiver
or amplifier
To HDMI input
terminal
TV
HDM
I c
able
(c
om
m
er
cia
lly
available
)
Match the direction
of the plug to the
terminal and insert
straight.
Direction of signal flow
HDM
I c
able
(c
om
m
er
cia
lly
available
)
