Page 15

15
Controls and displays
02

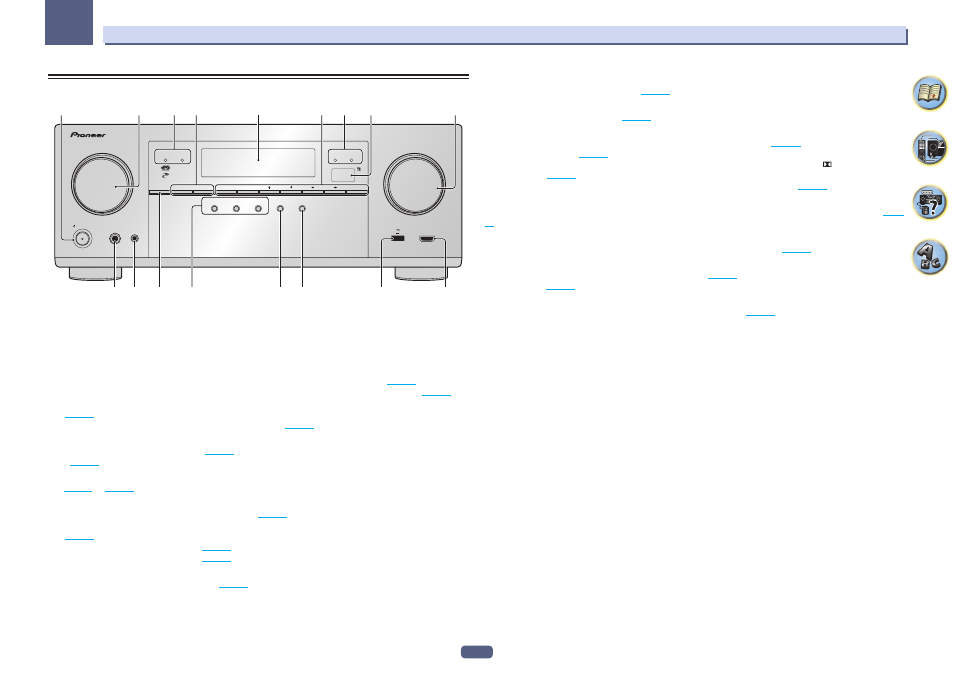

Front panel
MASTER
VOLUME
STANDBY/ON
INPUT
SELECTOR
iPod iPhone
DIRECT CONTROL
STATUS
ADVANCED
SURROUND
STANDARD
SURROUND
AUTO SURR/ALC/
STREAM DIRECT
PHONES
SPEAKERS
CONTROL – MULTI-ZONE – ON / OFF
BAND
TUNER EDIT
TUNE
PRESET
ENTER
iPod iPhone
HDMI
ADVANCED
MCACC
FL OFF
MCACC
SETUP MIC
5V
1 A
HDMI 5 INPUT
1
2
5
3
3
4
6
7
8
10
11
9
12
13 14
16
15
1 u STANDBY/ON
This switches between standby and on for this receiver.
2 INPUT SELECTOR dial
Use to select an input function.
3 Indicators
! ADVANCED MCACC – Lights when EQ is set to ON in the AUDIO PARAMETER menu (
page 67
).
! FL OFF – Lights when “off” (nothing displayed) is selected with the display’s dimmer adjustment (
page 73
).
! HDMI – Blinks when connecting an HDMI-equipped component; lights when the component is connected
(
page 24
).
! iPod iPhone – Lights to indicate iPod/iPhone is connected (
page 32
).
4 MULTI-ZONE controls
If you’ve made MULTI-ZONE connections (
page 30
) use these controls to control the sub zone from the main
zone (
page 72
).
5 Character display
See
Display
on
page 14
.
6 TUNER controls
! BAND – Switches between AM and FM radio bands (
page 47
).
! TUNER EDIT – Use with TUNE i/j, PRESET k/l and ENTER to memorize and name stations for recall
(
page 47
).
! TUNE i/j – Find radio frequencies (
page 47
).
! PRESET k/l – Find preset stations (
page 47
).
7 Remote sensor
Receives the signals from the remote control (
page 10
).
8 MASTER VOLUME dial
9 PHONES jack
Use to connect headphones. When the headphones are connected, there is no sound output from the speakers.
10 MCACC SETUP MIC jack
Use to connect the supplied microphone (
page 37
).
11 SPEAKERS
Use to change the speaker terminal (
page 71
).
12 Listening mode buttons
! AUTO SURR/ALC/STREAM DIRECT – Switches between Auto Surround (
page 52
), Auto Level Control and
Stream Direct mode (
page 53
).
! STANDARD SURROUND – Press for Standard decoding and to switch various modes ( Pro Logic, Neo:X,
Stereo etc.) (
page 52
).
! ADVANCED SURROUND – Use to switch between the various surround modes (
page 53
).
13 STATUS
Displays the IP address and information such as selected/set functions and the input signal on the display (
page
73
).
14 iPod iPhone DIRECT CONTROL
Change the receiver’s input to the iPod and enable iPod operations on the iPod (
page 44
).
15 iPod/iPhone terminals
Use to connect your Apple iPod/iPhone as an audio source (
page 32
), or connect a USB device for audio and
photo playback (
page 32
).
16 HDMI 5 INPUT terminal
Use for connection to a compatible HDMI device (Video camera, etc.) (
page 33
).
