Connecting your equipment

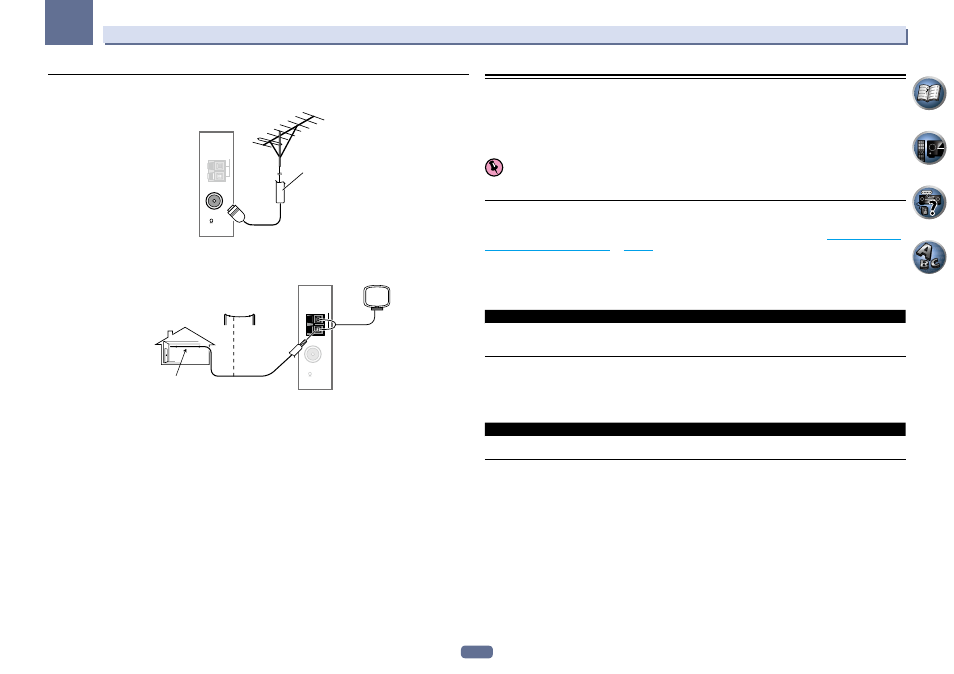

Connecting external antennas
To improve FM reception, connect an external FM antenna to FM UNBAL 75 W.
ANTENNA
FM UNBAL
75
AM LOOP
75 Ω coaxial cable
To improve AM reception, connect a 5 m to 6 m length of vinyl-coated wire to the AM LOOP terminals without
disconnecting the supplied AM loop antenna.
For the best possible reception, suspend horizontally outdoors.
ANTENNA
FM UNBAL
75
AM LOOP Outdoor antenna
Indoor antenna
(vinyl-coated wire) 5 m to 6 m
MULTI-ZONE setup
This receiver can power up to two independent systems in separate rooms after you have made the proper MULTI-
ZONE connections.
Different sources can be playing in two zones at the same time or, depending on your needs, the same source
can also be used. The main and sub zone have independent power (the main zone power can be off while sub
zone is on) and the sub zone can be controlled by the remote or front panel controls.
Important
VSX-922 model cannot connect the TV monitor for sub zone.
Making MULTI-ZONE connections
It is possible to make these connections if you have the speakers for the sub zone (ZONE 2). You will also need a
separate amplifier if you are not using the speaker terminals for the sub zone (For detail, see
MULTI-ZONE setup
using speaker terminals (ZONE 2) on page 28 ).
With the VSX-1122, it is also possible to connect a TV for the sub zone.
MULTI-ZONE listening options
The following table shows the signals that can be output to ZONE 2:
In case of VSX-1122
Sub Zone Input functions available
ZONE 2
DVD, SAT/CBL, DVR/BDR, INTERNET RADIO, MEDIA SERVER, FAVORITES, iPod/USB,
TV, CD, TUNER, ADAPTER PORT
(Outputs analog audio, composite video.)
! It is not possible to down-convert the audio and video input signals from the HDMI input terminals, digital input terminals
(OPTICAL and COAXIAL) and the COMPONENT VIDEO input terminals and output them to ZONE 2.
! When any of the INTERNET RADIO, MEDIA SERVER, FAVORITES, iPod/USB or ADAPTER PORT inputs is selected in the main
zone, it is only possible to select the same input as in the main zone for the sub zone. (Inputs other than the ones listed here can
be selected.)
In case of VSX-922
Sub Zone Input functions available
ZONE 2
DVD, SAT/CBL, DVR/BDR, TV, CD, TUNER, ADAPTER PORT
(Output analog audio only.)
! It is not possible to down-convert the audio input signal from the HDMI input terminals or digital input terminals (OPTICAL and
COAXIAL) and output them to ZONE 2.
