Connecting your equipment

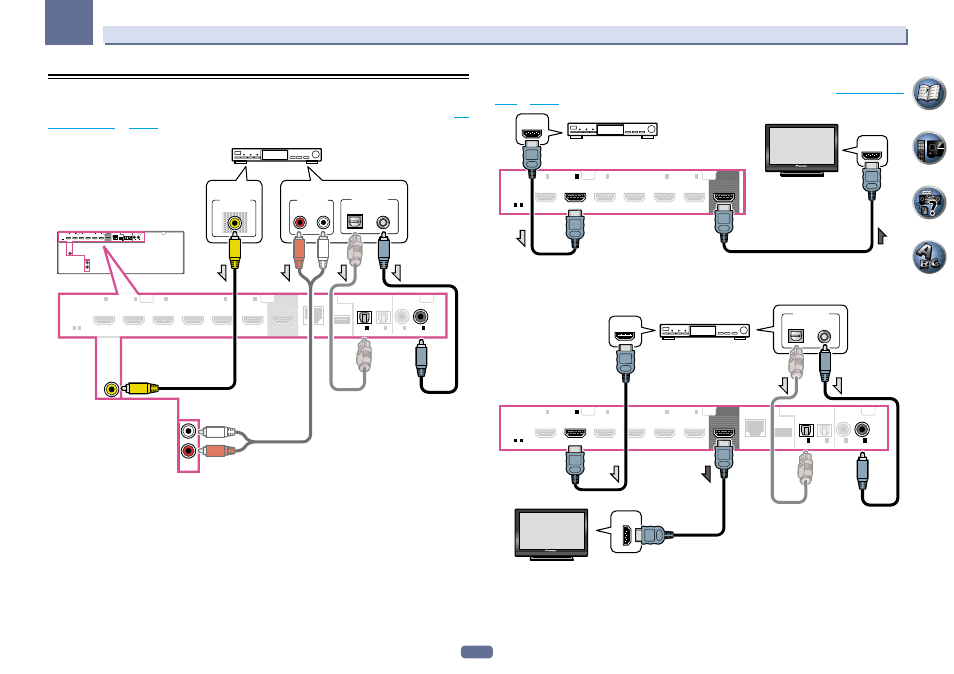

Connecting a satellite/cable receiver or other set-top box
Satellite and cable receivers, and terrestrial digital TV tuners are all examples of so-called ‘set-top boxes’.
When you set up the receiver you’ll need to tell the receiver which input you connected the set-top box to (see
The
Input Setup menu
on
page 34
).
HDMI
OPTICAL
COAXIAL
ASSIGN-
ABLE
ASSIGNABLE
ASSIGNABLE
-
IN
(DVD)
(SAT/CBL)
(DVR/BDR)
(TV)
(DVR/BDR)
1
IN
2
IN
1
IN
2
(DVD)
(SAT/CBL)
IN
1
IN
2
IN
BD IN
3
IN
4
IN
OUT
6
1 6
HDMI
OPTICAL
COAXIAL
ASSIGN-
ABLE
ASSIGNABLE
ASSIGNABLE
-
IN
(DVD)
(SAT/CBL)
(DVR/BDR)
(TV)
DC OUTPUT
for WIRELESS LAN
(DVR/BDR)
1
IN
2
IN
1
IN
2
(DVD) (SAT/CBL)
IN
1
IN
2
IN
BD IN
3
IN
4
IN
OUT
LAN (10/100)
6
1 6
(
OUTPUT 5 V
0.6 A MAX)
VIDEO
SAT/
CBL
IN
SAT/CBL
VIDEO
SAT/
CBL
IN
SAT/CBL
DIGITAL OUT
COAXIAL
OPTICAL
ANALOG
R
L
AUDIO OUT
Select one
VIDEO
VIDEO OUT
STB
! If your set-top box is equipped with an HDMI output terminal, we recommend connecting it to the receiver’s
HDMI SAT/CBL IN terminal. When doing so, also connect the receiver and TV by HDMI (see
Connecting using
HDMI
on
page 22
).
HDMI
ASSIGNABLE
-
IN
(DVD)
(SAT/CBL)
(DVR/BDR)
1
IN
2
IN
BD IN
3
IN
4
IN
OUT
6
1 6
HDMI IN
HDMI OUT
HDMI/DVI-compatible monitor
STB
! Even if your set-top box is equipped with an HDMI output terminal, in some cases the sound is output from
the digital audio output (optical or coaxial) and only the video is output from the HDMI output terminal. In this
case, make the HDMI and digital audio connections as shown below.
