26
03
Connecting your equipment

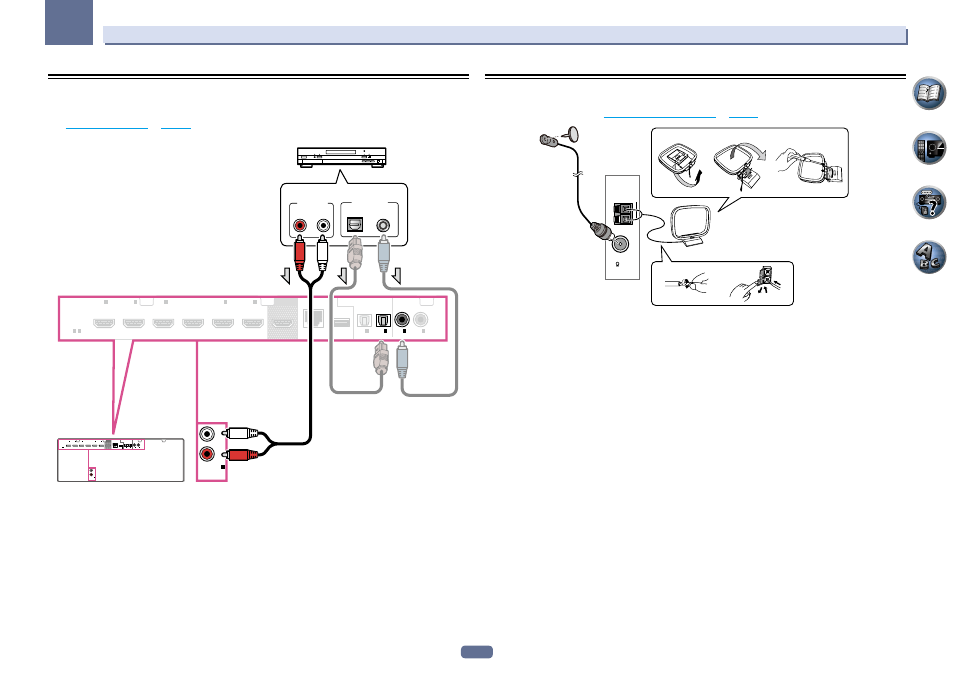

Connecting other audio components
This receiver has both digital and analog inputs, allowing you to connect audio components for playback.
When you set up the receiver you’ll need to tell the receiver which input you connected the component to (see
also
The Input Setup menu
on
page 34
).
HDMI
OPTICAL
COAXIAL
ASSIGN-
ABLE
ASSIGNABLE
ASSIGNABLE
-
IN
(DVD)
(SAT/CBL)
(DVR/BDR)
(TV)
DC OUTPUT
for WIRELESS LAN
(DVR/BDR)
1
IN
2
IN
1
IN
2
(DVD) (SAT/CBL)
IN
1
IN
2
IN
BD IN
3
IN
4
IN
OUT
LAN (10/100)
6
1 6
(
OUTPUT 5 V
0.6 A MAX)
HDMI
OPTICAL
COAXIAL
ASSIGN-
ABLE
ASSIGNABLE
ASSIGNABLE
-
IN
(DVD)
(SAT/CBL)
(DVR/BDR)
(TV)
(DVR/BDR)
1
IN
2
IN
1
IN
2
(DVD)
(SAT/CBL)
IN
1
IN
2
IN
BD IN
3
IN
4
IN
OUT
6
1 6
R
L
ANALOG IN
IN
(CD)
ASSIGNABLE
1
R
L
ANALOG IN
IN
(CD)
ASSIGNABLE
1
DIGITAL OUT
COAXIAL
OPTICAL
ANALOG
R
L
AUDIO OUT
Select one
CD player, etc.
! If your turntable has line-level outputs (i.e., it has a built-in phono pre-amp), connect it to the ANALOG IN 1
(CD) inputs instead.
Connecting AM/FM antennas
Connect the AM loop antenna and the FM wire antenna as shown below. To improve reception and sound quality,
connect external antennas (see
Connecting external antennas
on
page 27
).
ANTENNA
FM UNBAL
75
AM LOOP
1
3
a
b
c
4
5
2
1 Pull off the protective shields of both AM antenna wires.
2 Push open the tabs, then insert one wire fully into each terminal, then release the tabs to
secure the AM antenna wires.
3 Fix the AM loop antenna to the attached stand.
To fix the stand to the antenna, bend in the direction indicated by the arrow (fig. a) then clip the loop onto the
stand (fig. b).
! If you plan to mount the AM antenna to a wall or other surface, secure the stand with screws (fig. c) before
clipping the loop to the stand. Make sure the reception is clear.
4 Place the AM antenna on a flat surface and in a direction giving the best reception.
5 Connect the FM wire antenna into the FM antenna socket.
For best results, extend the FM antenna fully and fix to a wall or door frame. Don’t drape loosely or leave coiled up.
