Page 13
13
02
Controls and displays

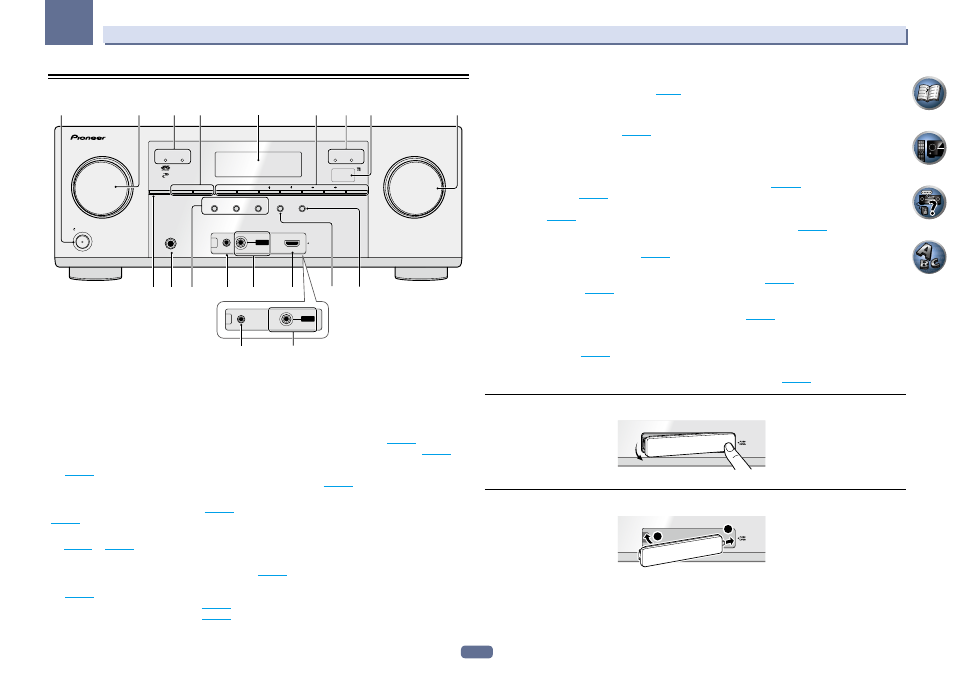

Front panel
MASTER
VOLUME
STANDBY/ON
INPUT
SELECTOR
iPod iPhone iPad
DIRECT CONTROL
SOUND
RETRIEVER AIR
ADVANCED
SURROUND
STANDARD
SURROUND
AUTO SURR/ALC/
STREAM DIRECT
PHONES
SPEAKERS
CONTROL – MULTI-ZONE – ON/OFF
BAND
TUNER EDIT
TUNE
PRESET
ENTER
iPod iPhone iPad
HDMI
ADVANCED
MCACC
FL OFF
MCACC
SETUP MIC
PUSH
OPEN
iPod
iPhone
iPad
USB
VIDEO
HDMI 5 INPUT
MCACC
SETUP MIC
iPod
iPhone
iPad
USB
VIDEO
1
2
5
3
3
4
6
7
8
10
9
11
16
15
12
13
14
12
13
VSX-1122
VSX-922
1 u STANDBY/ON
This switches between standby and on for this receiver.
2 INPUT SELECTOR dial
Use to select an input function.
3 Indicators
! ADVANCED MCACC – Lights when EQ is set to ON in the AUDIO PARAMETER menu (
page 57
).
! FL OFF – Lights when “off” (nothing displayed) is selected with the display’s dimmer adjustment (
page 62
).
! HDMI – Blinks when connecting an HDMI-equipped component; lights when the component is connected
(
page 22
).
! iPod iPhone iPad – Lights to indicate iPod/iPhone/iPad is connected (
page 29
).
4 MULTI-ZONE controls
If you’ve made MULTI-ZONE connections (
page 27
) use these controls to control the sub zone from the main zone
(
page 61
).
5 Character display
See
Display
on
page 12
.
6 TUNER controls
! BAND – Switches between AM and FM radio bands (
page 40
).
! TUNER EDIT – Use with TUNE i/j, PRESET k/l and ENTER to memorize and name stations for recall
(
page 40
).
! TUNE i/j – Find radio frequencies (
page 40
).
! PRESET k/l – Find preset stations (
page 41
).
7 Remote sensor
Receives the signals from the remote control (
page 7
).
8 MASTER VOLUME dial
9 SPEAKERS
Use to change the speaker terminal (
page 61
).
10 PHONES jack
Use to connect headphones. When the headphones are connected, there is no sound output from the speakers.
11 Listening mode buttons
! AUTO SURR/ALC/STREAM DIRECT – Switches between Auto Surround (
page 45
), Auto Level Control and
Stream Direct mode (
page 46
).
! STANDARD SURROUND – Press for Standard decoding and to switch various modes (2 Pro Logic, Neo:6,
Stereo etc.) (
page 45
).
! ADVANCED SURROUND – Use to switch between the various surround modes (
page 45
).
12 MCACC SETUP MIC jack
Use to connect the supplied microphone (
page 32
).
13 iPod iPhone iPad USB terminals
Use to connect your Apple iPod/iPhone/iPad as an audio and video source (
page 29
), or connect a USB device for
audio and photo playback (
page 29
).
14 HDMI input connector
Use for connection to a compatible HDMI device (Video camera, etc.) (
page 29
).
15 SOUND RETRIEVER AIR
When the button is pressed, the input switches to ADAPTER PORT and the listening mode is automatically set to
SOUND RETRIEVER AIR (
page 43
).
16 iPod iPhone iPad DIRECT CONTROL
Change the receiver’s input to the iPod and enable iPod operations on the iPod (
page 38
).
Removing the front cover
iPod
iPhone
iPad
USB
CONTROL
ON / OFF
Attaching the front cover
iPod
iPhone
iPad
USB
1
2
