9
En-7

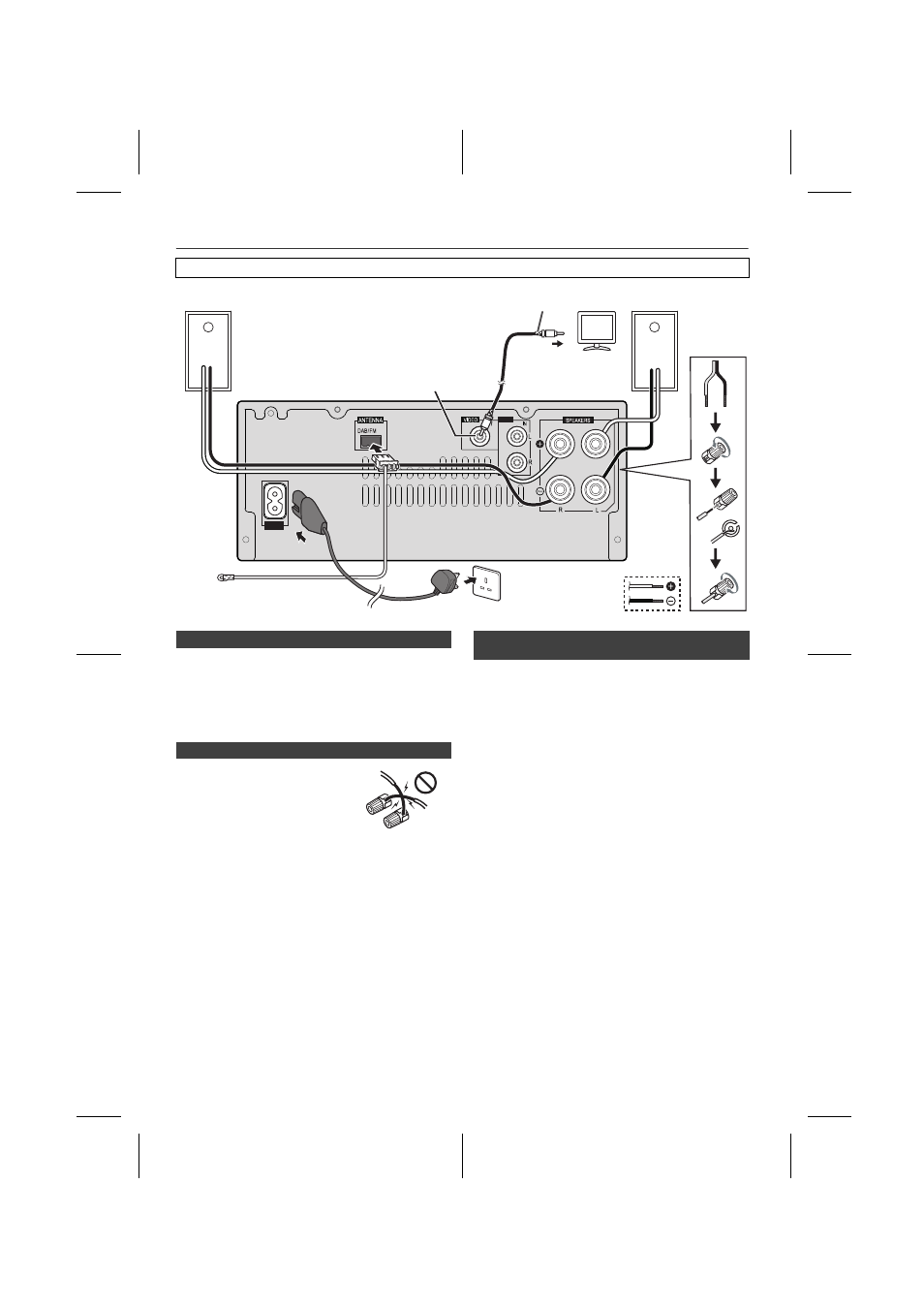

System connections
Connect the supplied DAB/FM aerial wire to the DAB/FM
socket and position the DAB/FM aerial wire in the direction
where the strongest signal can be received.
Note:
Placing the aerial on the unit or near the AC power lead
may cause noise pickup. Place the aerial away from the
unit for better reception.
Photo and video files from iPod or iPhone can be viewed
by connecting the system to TV/monitor.
If the TV/monitor has a video input, connect it to the
VIDEO OUT socket at the back of the unit and set the TV
Out on the iPod or iPhone unit to “ON” position.
Note:
Please make sure to set iPod unit to either NTSC or PAL
to match your TV signal. Please visit Apple’s homepage
for further information.
Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.
AUX LINE
AC IN
Right
speaker
DAB/FM aerial
To video input socket
Wall socket
(AC 220 V to 240 V,
50 Hz/60 Hz)
Video cable
(not supplied)
TV
Left
speaker
Video out socket
(X-HM20DAB only)
n DAB/FM aerial connection
n Speaker connection
l Twist exposed wire strands together.
l Connect the red wire to the plus
(+) terminal, and other wire to the
minus (–) terminal.
l Use speakers with an impedance
of 4 ohms ohms, as lower
impedance speakers can damage
the unit.
l These speaker terminals carry HAZARDOUS LIVE voltage.
To prevent the risk of electric shock when connecting or
disconnecting the speaker cables, disconnect the power
cord before touching any uninsulated parts.
l Do not attach these speakers to the wall or ceiling, as
they may cause injury in the event of a fall.
l Do not mistake the right and the left channels. The right
speaker is the one on the right side when you face the
unit.
l Do not let the bare speaker wires touch each other.
l Do not allow any objects to fall into or to be placed in
the bass reflex ducts.
l Do not stand or sit on the speakers. You may be injured.
Incorrect
n Connecting iPod or iPhone to TV
(X-HM20DAB only)
