7

VIRTUALIZER PRO DSP1024P

1.2 Before you begin

Your BEHRINGER VIRTUALIZER PRO was carefully packed in the factory and the packaging was designed to

protect the unit from rough handling. Nevertheless, we recommend that you carefully examine the packaging

and its contents for any signs of physical damage, which may have occurred in transit.

+

If the unit is damaged, please do not return it to us, but notify your dealer and the shipping

company immediately, otherwise claims for damage or replacement may not be granted.

Shipping claims must be made by the consignee.

The BEHRINGER VIRTUALIZER PRO fits into one standard 19" rack unit of space (1 3/4"). Please allow at

least an additional 4" depth for the connectors on the back panel.
Be sure that there is enough space around the unit for cooling and please do not place the VIRTUALIZER PRO

on high temperature devices such as power amplifiers etc. to avoid overheating.

+

Before you connect your VIRTUALIZER PRO to the mains, please make sure that your local

voltage matches the voltage required by the unit.

The mains connection of the VIRTUALIZER PRO is made by using a mains cable and a standard IEC

receptacle. It meets all of the international safety certification requirements. Please make sure that all units

have a proper ground connection.

+

Please make sure that all units have a proper ground connection. For your own safety, do not

remove the ground connection within the units or at the supply, or fail to make this connection

at all.

+

Please ensure that only qualified persons install and operate the VIRTUALIZER PRO. During

installation and operation the user must have sufficient electrical contact to earth. Electro-

static charges might affect the operation of the VIRTUALIZER PRO!

See chapter 5 “INSTALLATION” for further details.
As a standard the audio inputs and outputs on the BEHRINGER VIRTUALIZER PRO are fully balanced. If

possible, connect the unit to other devices in a balanced configuration to allow for maximum interference

immunity. The automatic servo function detects unbalanced connections and compensates the level difference

automatically (6 dB correction).
The MIDI links (IN/OUT/THRU) are made over standardized DIN patch cords. The data communication is

isolated from ground by opto-couplers.

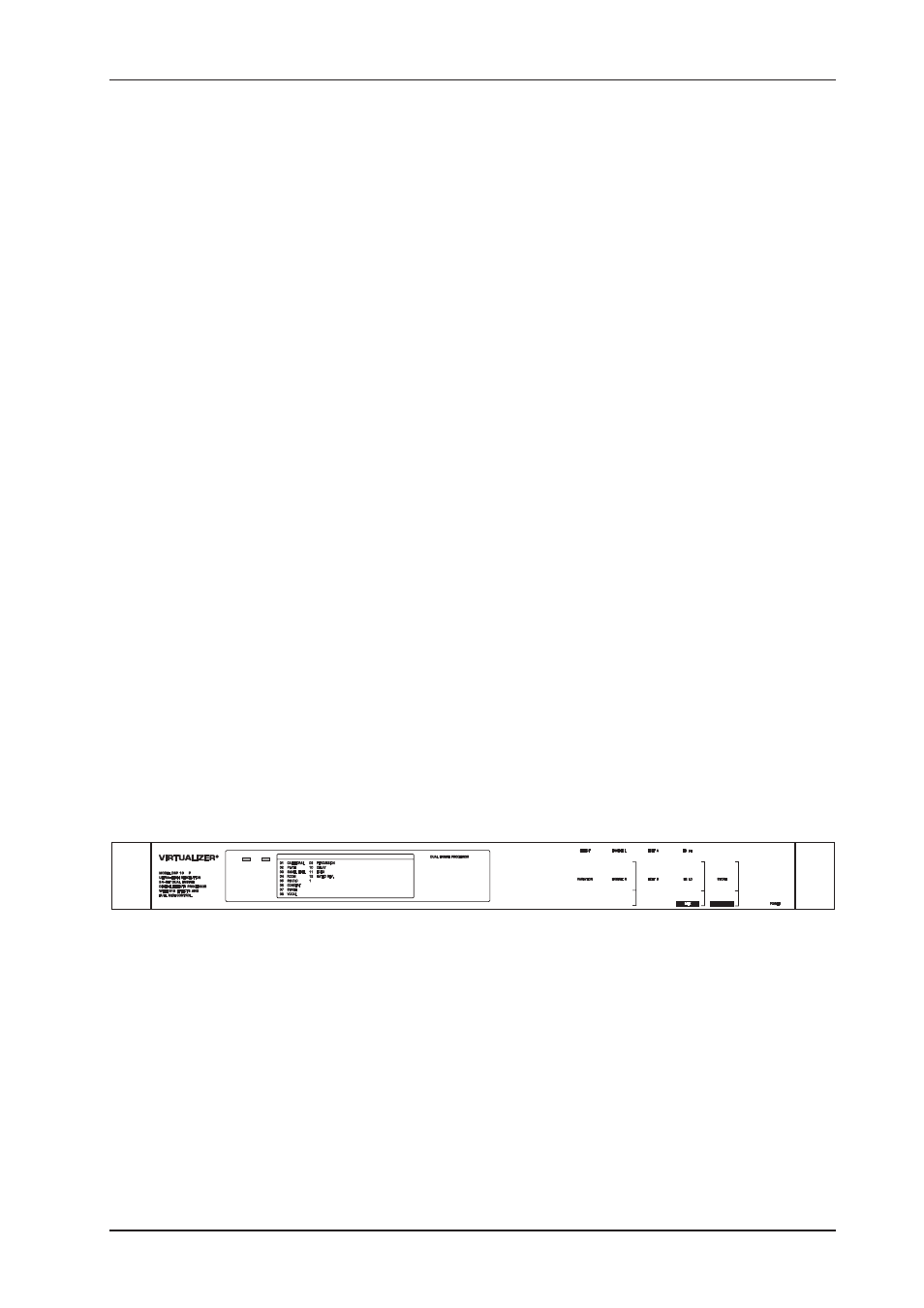

1.3 Control elements
