VIRTUALIZER PRO DSP1024P

Connect the two Input phone jacks with the Aux Send outputs of the mixing console, and the Output jacks of

the VIRTUALIZER PRO with the Aux Return inputs of the console. If you want to use the BEHRINGER

VIRTUALIZER PRO in mono or dual mode, connect one audio channel (left or right) to one aux bus.

Turn down the volume on your amplifier to protect your equipment against damage. All

devices you wish to interconnect should remain switched off until they are wired correctly.

Lets suppose you wish to use the VIRTUALIZER PRO in a live application, interfaced with the F.O.H. mixer,

to enhance the guitar sound with a subtle chorus effect.
Connect the VIRTUALIZER PRO to the aux bus of your mixing console (fig. 3.1). Connect the units to the

mains and adjust the operating level(s) if necessary. Switch on the VIRTUALIZER PRO and set the levels

appropriately (see 3.1). Press the Mix combination to make sure that the unit is set to Mix External mode.

Press the EFFECT key and use the JOG WHEEL to select and thus activate the chorus effect (#19). Slowly

turn up the aux bus level until the effect portion added to the guitar signal suits your needs. Subsequently, you

can make all necessary fine-adjustments. We assume that you wish to edit the modulation frequency of the

chorus effect: press the VARIATION key and set the modulation frequency with the JOG WHEEL. To set the

modulation delay, press the EDIT A key. The modulation depth of the chorus effect can be set by pressing the

EDIT B key. Having edited all parameters as desired, you can save the changes to the original (or any other)

preset.

3.3 Using the VIRTUALIZER PRO in the insert path

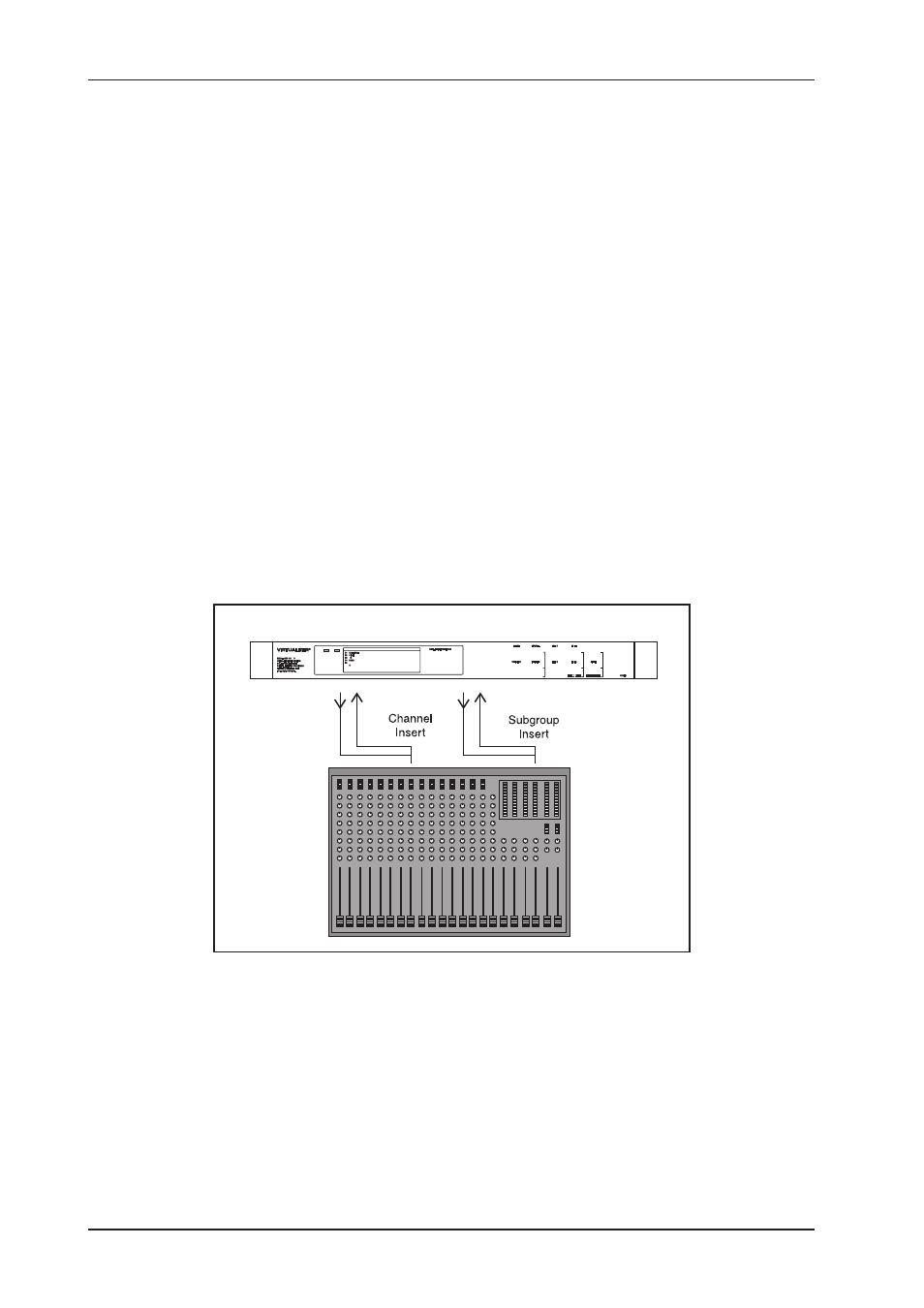

Basically, you can also insert the VIRTUALIZER PRO in a channel or subgroup of your mixing console. Use a

dedicated insert cable. Inserting the VIRTUALIZER PRO in a single channel will be useful only if you wish to

process a specific signal (e.g. vocals) with the VIRTUALIZER PRO, or if any other insert facilities of your

mixing console are already in use.
