3. INSTALLATION ፧
13 KE-430F, BE-438F

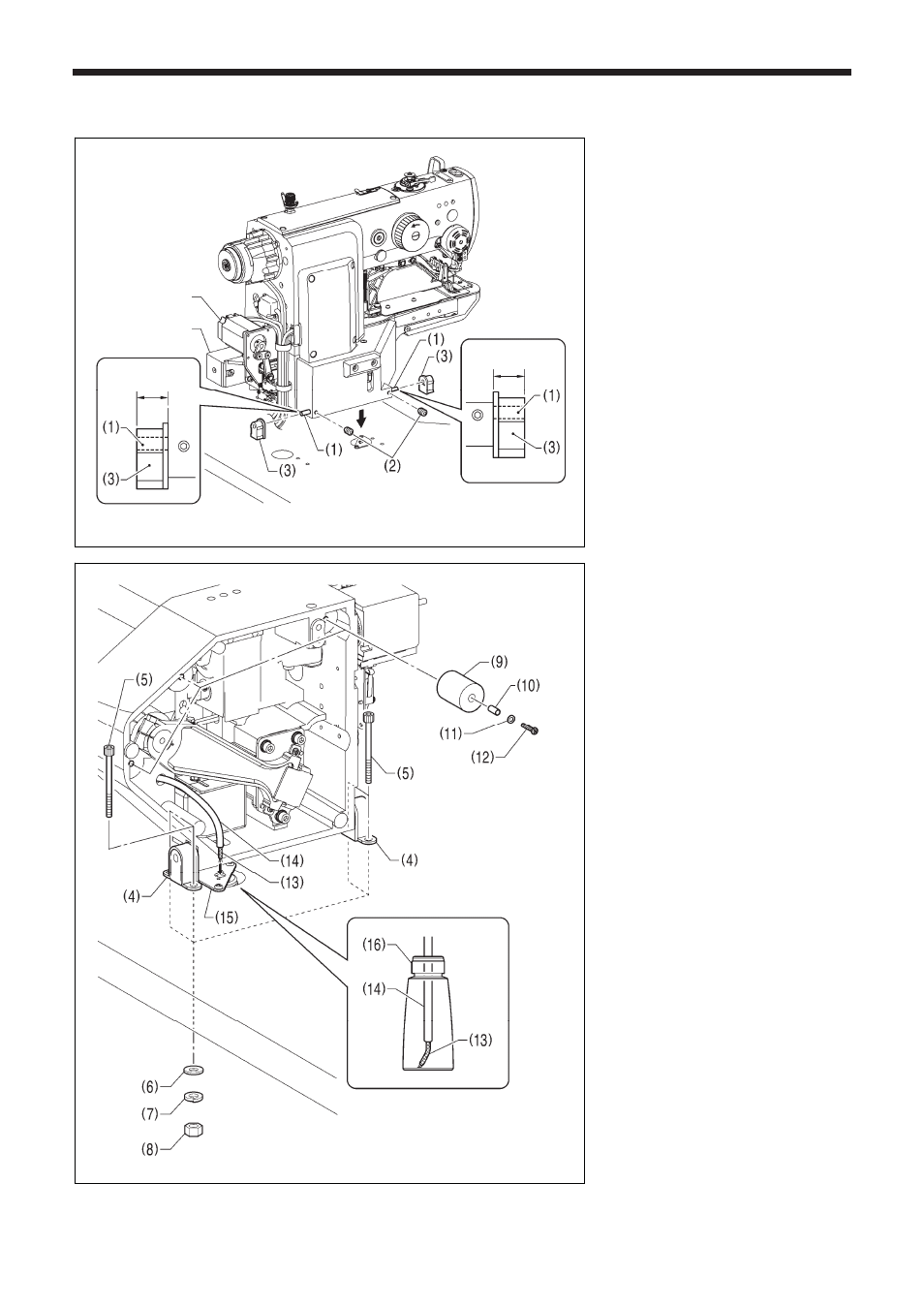

3-4. Installing the machine head
(1) Pins [2 pcs]
(2) Set screws [2 pcs]
(3) Rubber cushion assembly [2 pcs]
Place the machine head gently on top of
the table.
NOTE:
• Be careful not to clamp any cords
between the machine head and the
table.
• When holding the machine head, do
not hold it by the pulse motor or the
solenoid, otherwise it may damage the
pulse motor or solenoid.
(4) Hinge holders [2 pcs]
(5) Bolts [4 pcs]
(6) Plain washers [4 pcs]
(7) Spring washers [4 pcs]
(8) Nuts [4 pcs]
(9) Rubber cushions [3 pcs]
(10) Collar [3 pcs]
(11) Plain washers [3 pcs]
(12) Screws [3 pcs]
(13) Felt
(14) Oil tube
Pass the felt (13) and the oil tube (14)
through the hole in the dust oiler setting
plate (15) into the oiler (16).
2282B
Figure ው
Pulse motor
Approx. 20mm
Approx. 20mm
Solenoid
2284B
