Brocade Communications Systems 53-1001778-01 - Manual (Page 31)

Brocade SMI Agent User’s Guide 15
53-1001778-01
Launch the Brocade SMI-A Configuration Tool
3
Launch the Brocade SMI-A Configuration Tool
Because this is a graphical tool, for Linux, Solaris, and AIX, you must be on a console with an
XWindows Manager or, if you are working remotely, export the display.
Launching the Brocade SMI Agent Configuration Tool (Linux, Solaris,
and AIX)
1. Navigate to the directory where the tool is located.
/agent/server/jserver/bin
where is the directory where the Brocade SMI Agent is installed.
2. Execute the following command:
./configurationtool.sh
The Brocade SMI Agent Configuration Tool launches, as shown in Figure 4 .
Launching the Brocade SMI Agent Configuration Tool (Windows)
• Click Start > Programs > SMIAgent > Brocade SMI Agent Configuration Tool.
The Brocade SMI Agent Configuration Tool launches, as shown in
Figure 4 .

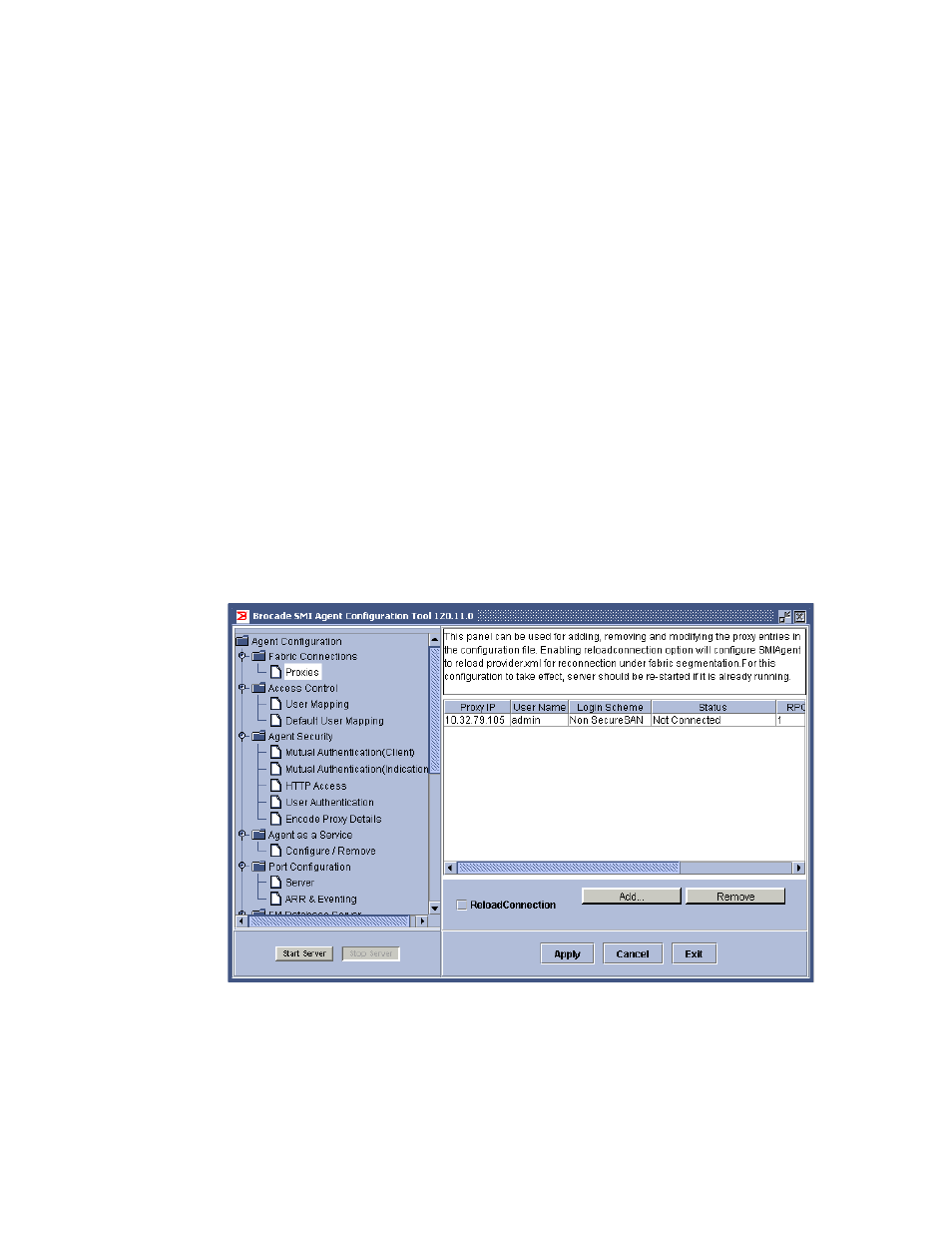

FIGURE 4 Brocade SMI Agent Configuration Tool
