Step 2 - Connecting Cables to the ADSL2+ Modem and Router

1. Power down the computer which will be used to conﬁ gure the router.

2. Connect the supplied power adapter to the PWR port of your ADSL2+ modem,

and plug the other end to a power outlet. (Do not switch on the power)

3. Plug the RJ-11 cable into the DSL port of the Modem and plug the other end

into your DSL connection point.

4. Plug the RJ-45 Ethernet cable to the Ethernet port of the Modem and plug the

other end to the WAN port of your router.

5. Screw the external antenna on to the top of the AirStation router.

6. The AirStation can be conﬁ gured through a Wired or Wireless Connection.

If using a wireless Card or Adapter: skip to point 7.

If not using wireless: Plug the provided Ethernet cable into a LAN port on the

router and plug the other end into your computer’s Ethernet adapter’s (NIC)

router

port.

7. Power on your ADSL modem by pushing the power button on the back of the

device and wait one full minute.

8. Connect the supplied power adapter to the Airstation router, and plug the other

end into a power outlet and wait another minute (If the red DIAG light on the

AirStation is lit or ﬂ ashing after four or more minutes of being powered on,

please consult Buffalo Technology Technical Support.)

9. Finally, power on the computer which will be used to conﬁ gure the router.

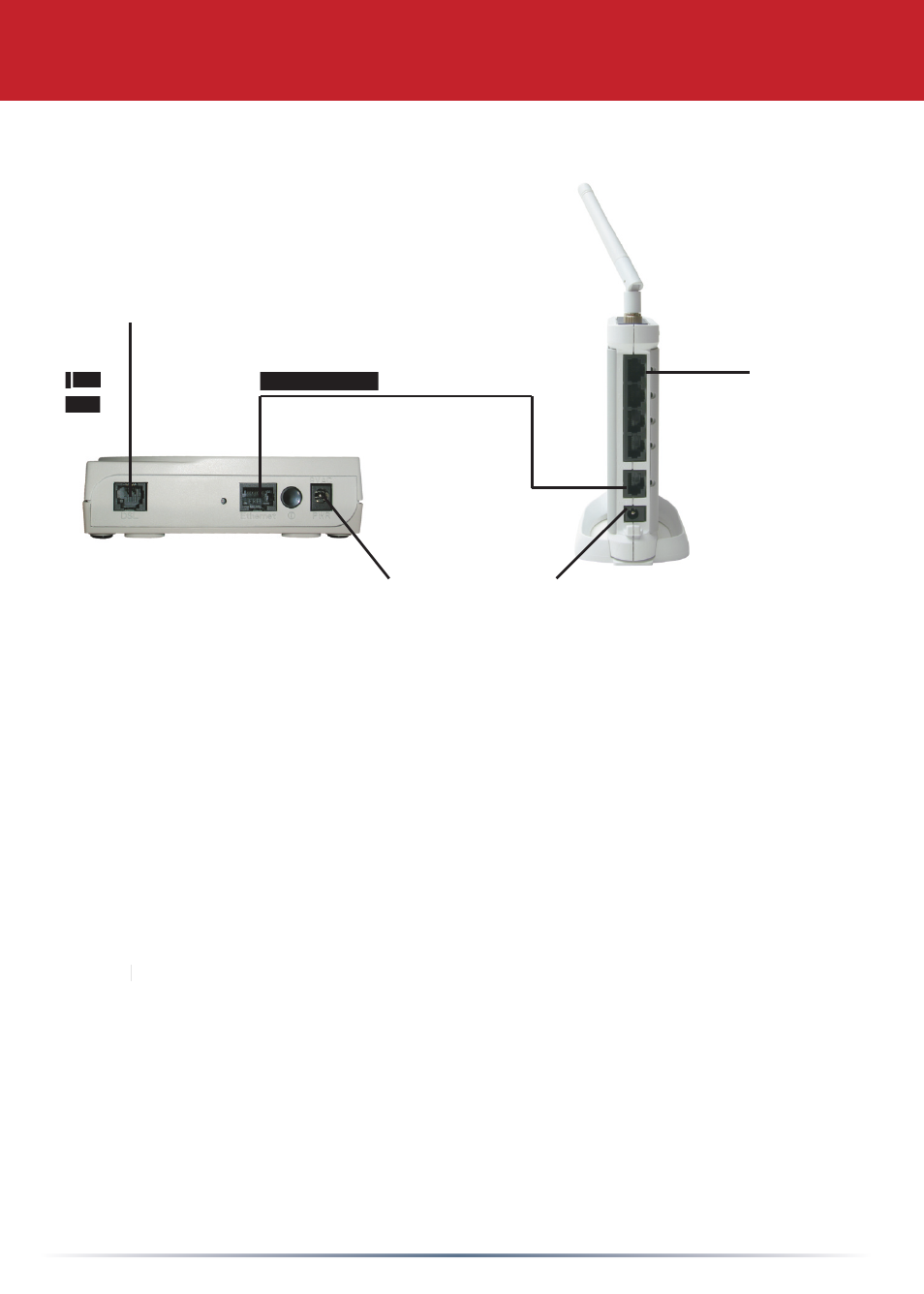

DSL Connection

RJ-45 Ethernet Cable

Power Supplies

Ethernet Cable

to PC (for wired

connection only)

Cable
