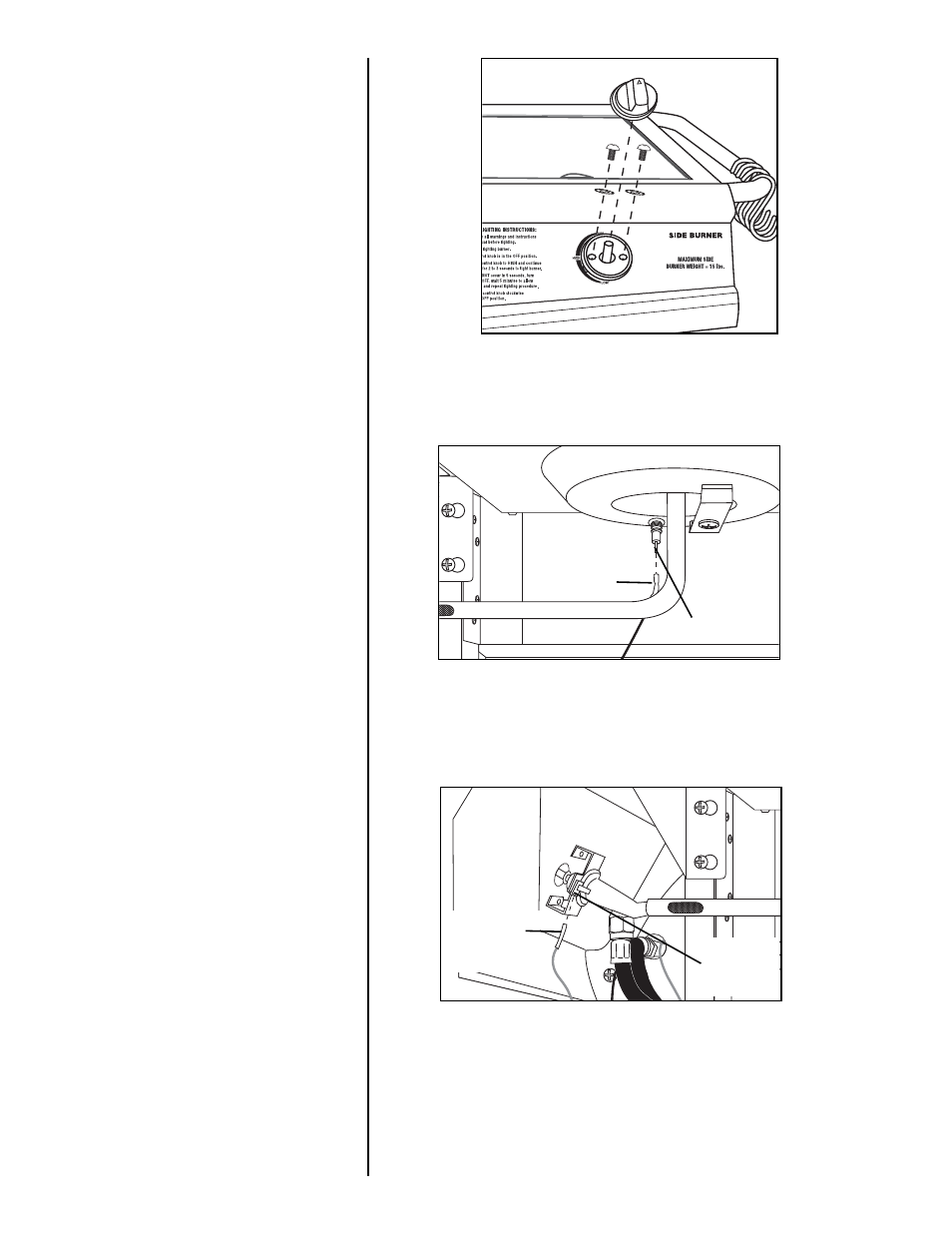

Step 15
Place the bezel over the control
knob mounting stem and position
over holes in side burner base and
side burner valve assembly. Attach
with two M4 X 10mm bolts with
spring washers which come with
valve. Then install the side burner
control knob onto valve stem.
Step 16
Attach side burner igniter lead wire
to the electrode as illustrated.
Step 17
Attach side burner electrical source
wire to the side burner valve
electrode as illustrated.
29
Side Burner
Igniter Lead
Electrode
Side Burner
Electronic
Lead
Side
Burner
Electrode
