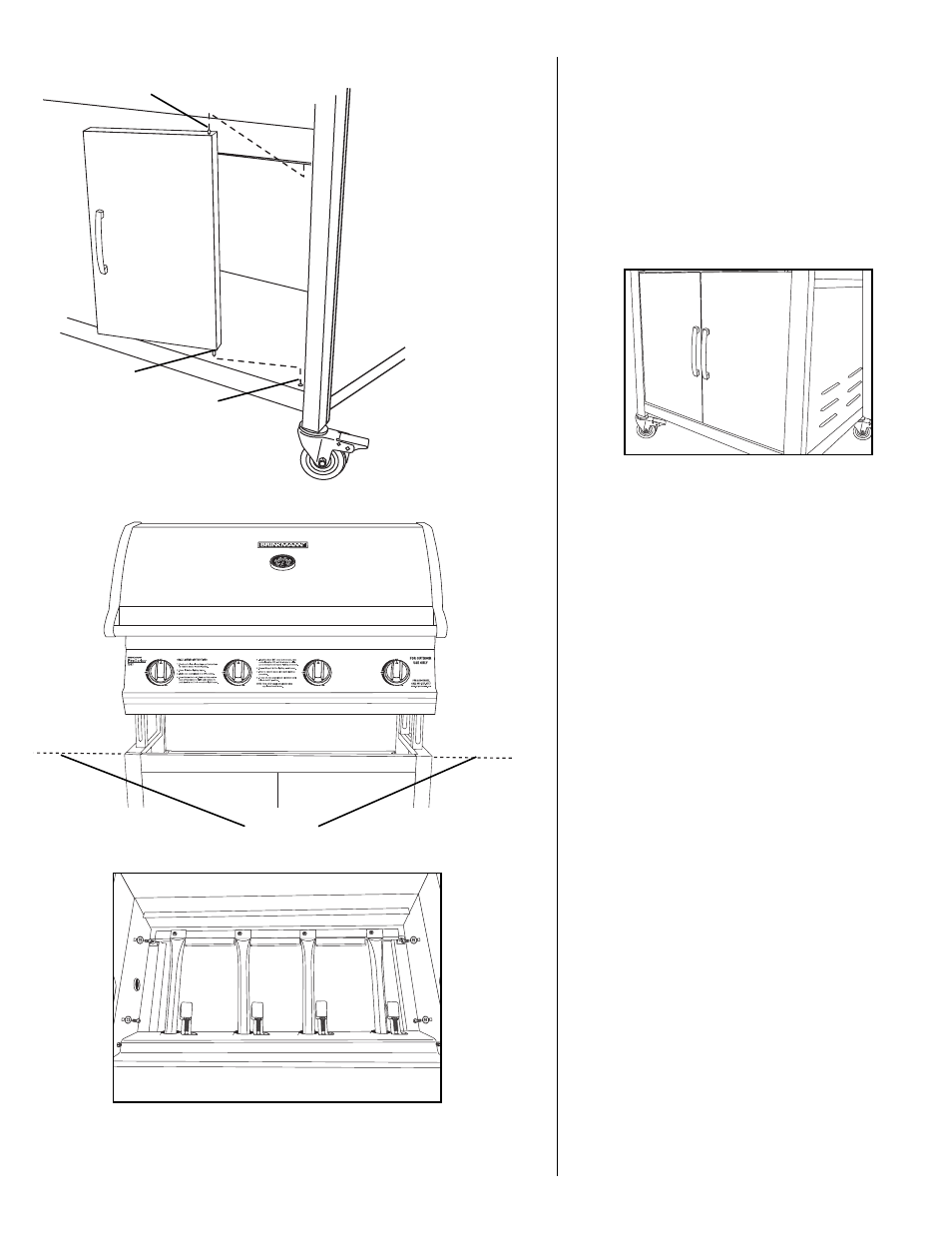

Step 8
Insert right side door pivot into
lower pivot hole (on bottom cart
shelf) then align door with cart
frame. Depress spring pin located
on top edge of door and slide door
toward side cart panel until spring
pin locks into hole in door bracket.
Repeat for other door.
Note: When performing Step 9,
Lift grill body from front and
rear panels to avoid injury to
hands and fingers.
Step 9
With the help of a friend, place grill
body assembly on cart frame. Grill
body will rest on angled top of
vertical supports. Align bolt holes
located on the inside of the grill
body assembly. Secure using four
M6 X 12mm bolts (black) with star
washers (black).
Spring Pin
Door Pivot
Hole
Alignment
Door Pivot
