Igniter Assembly
Attach one end of the igniter wire (15) to the open terminal
on the back of the electronic igniter.
Install AA Alkaline battery
Instructions
All Broilmaster ® side burners require some assembly and
installation. Certain instructions may not apply to your model
of side burner. This side burner requires the same gas type
(natural or liquid propane) as your Broilmaster ® gas grill.
Your side burner is factory equipped for LP gas. Natural
gas conversion instructions are located in the Natural Gas
section of this manual.
Please locate and follow in listed order only the instructions
for assembly and installation of the correct gas type. Skip
any sections that do not pertain to the side burner model you
have purchased.
PreAssembly
Every assembly and installation instruction includes detailed
illustrations to aid in assembly.
Compare the materials found in the shipping container to the
parts list provided. Every effort has been made to ensure the
correct parts have been provided. In the event of an error,
please contact your local Broilmaster ® dealer regarding the
replacement of missing parts.
The following items are needed for the assembly of your
side burner:
Phillips screwdriver
Two adjustable wrenches
Soapy water solution (to test for leaks)
Grill Pull Handle

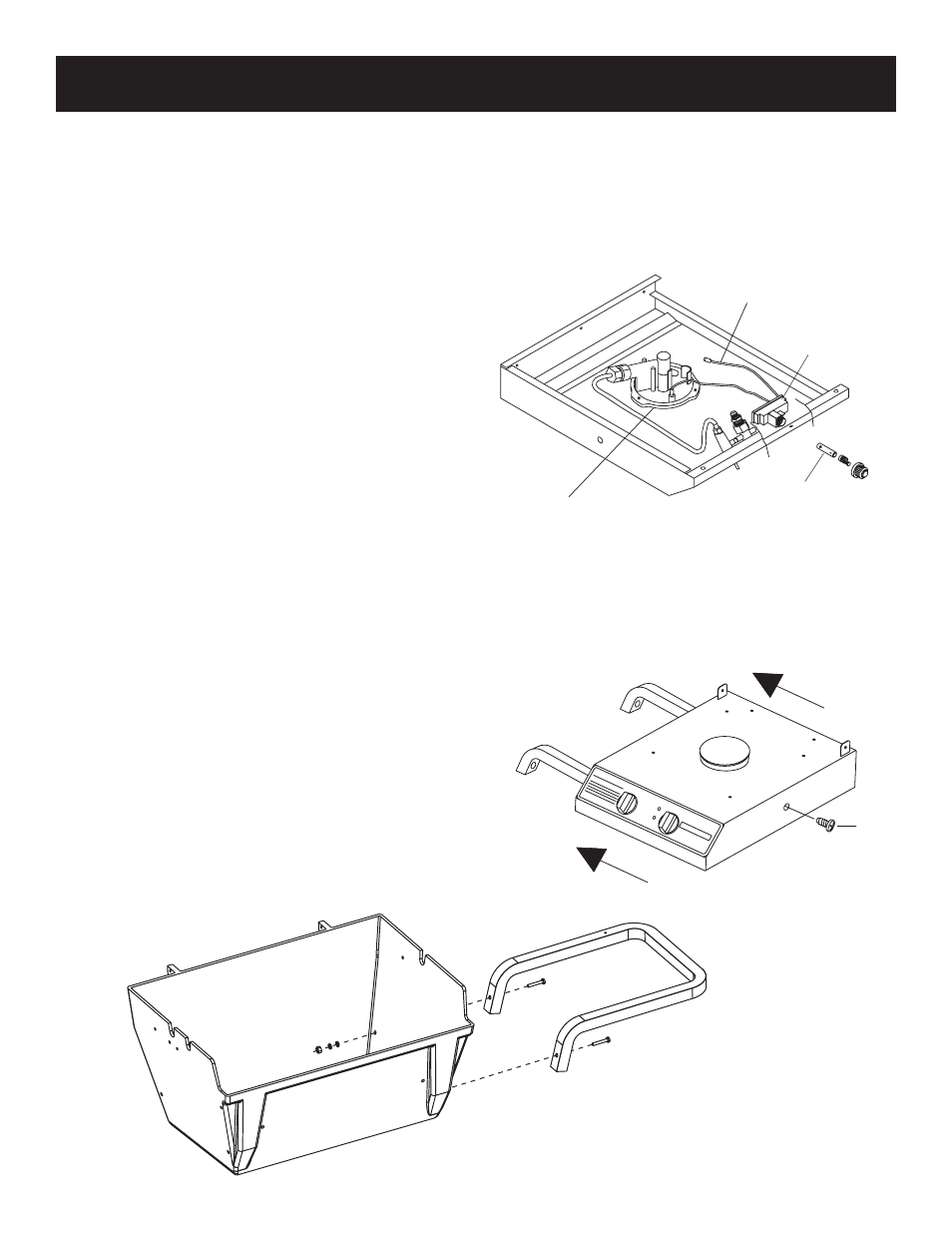

Attach the pull handle to the right side of the grill as illus-
trated in Figure 1. Place two bolts into holes in pull handle
and through holes on right sides of grill bottom. Fasten each
bolt with a washer, lock washer and nut.
Positioning Side Burner
Slide side burner right side up onto right grill pull handle.
Attach with one 1/4-20 x 3/4 screw (25). F
igure
3.
f
iGure
3
f
iGure
2
Burner (10)
Electronic
Igniter (13)
AA Alkaline
Battery
Igniter Wire (15)
25
f
iGure
1
S
IDE
B
URNER
A
SSEMBLY
