B100539-2-0610 Page 10
f
iGure
12
17

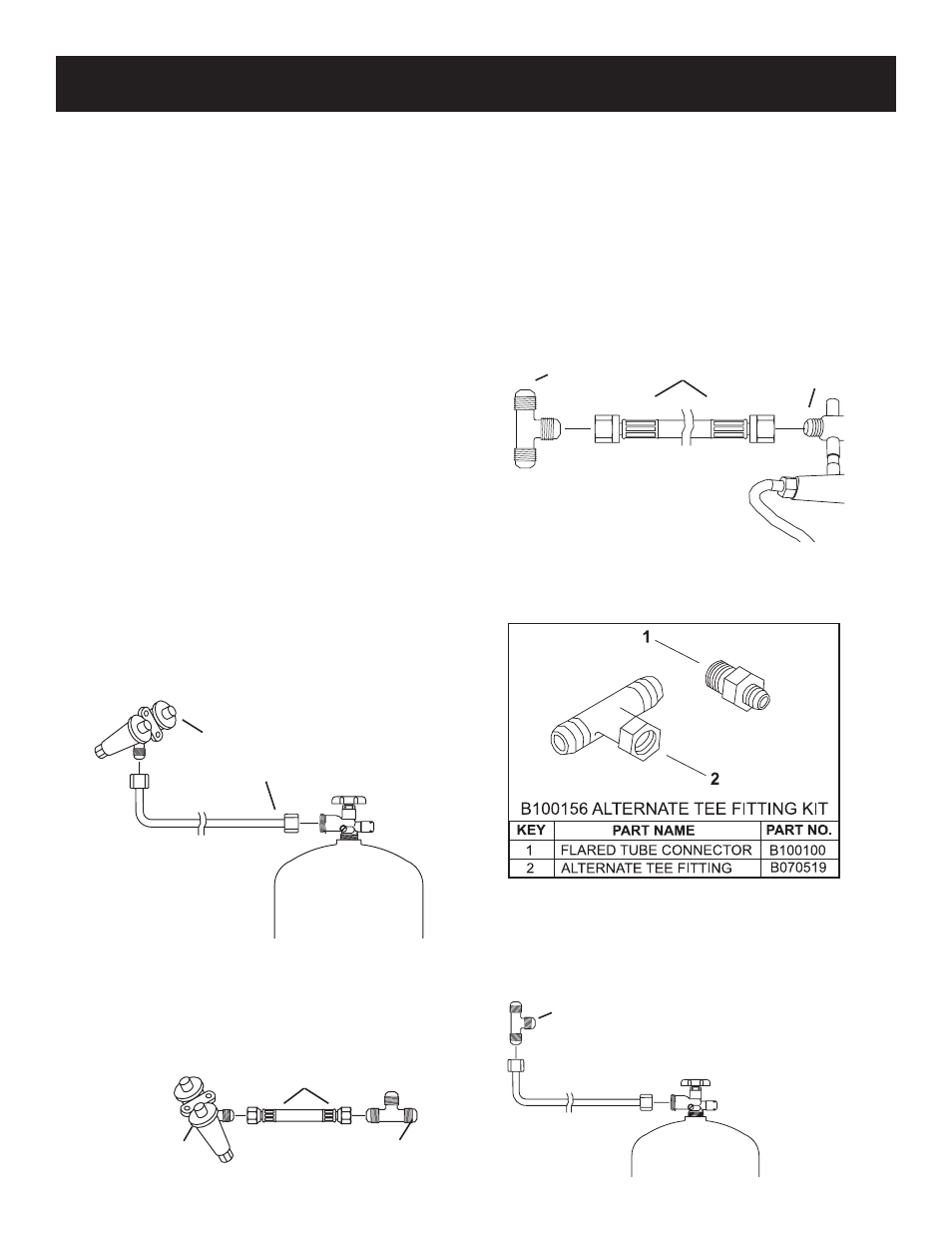

Installing "Tee" Connector
The pressure regulator has an outlet pressure of not
more than eleven (11") inches water column. It must
be connected to the propane gas cylinder’s female
valve outlet before the grill and side burner can be
operated.
c
autiOn
: O
PeratiOn Of a PrOPane GaS Grill and Side
Burner withOut the PreSSure reGulatOr and hOSe
aSSeMBly will cauSe GaS leakS which cOuld lead tO
fire Or exPlOSiOn
,
reSultinG in PrOPerty daMaGe Or
PerSOnal injury
.
The pressure regulator’s fitting must remain clean and
free of nicks and scratches. A dirty, nicked or scratched
fitting can cause a gas leak, resulting in an explosion or
fire. Use only genuine Broilmaster ® replacement parts
unless otherwise specified by the manufacturer.
Pressure Regulator and Hose
Assembly
If your grill is equipped with a factory installed gas "tee"
behind the grill’s control panel, please skip to the next
section.
Turn OFF the gas valve at the propane cylinder.
Disconnect the regulator and hose assembly from the
cylinder. Disconnect hose from the gas valve located
under the grill’s control panel. F
igure
9.
Attach one end of the 10" S/S flex line (18) to the end
of the grill’s gas valve. Attach the other end of the S/S
flex line to the brass "tee" (17). F
igure
10.
N
ote
: G
rills maNufactured prior to
1999
may require
the alterNate
"
tee
"
coNNector
.
Attach the regulator and hose assembly to the brass
tee" (17). Reconnect the assembly to the cylinder. Use
two adjustable wrenches to hold and tighten the joint
between the hose and "tee". F
igure
12.
Connecting to Propane Gas
Attach one end of the 34" S/S flex line (19) to the end
of the side burner valve (14). Attach the remaining
end of the hose to the "tee" (17) and use two wrenches
to tighten the S/S flex line connections. One wrench
should be used to turn the S/S flex line connector while
the "tee" or valve is held with the second wrench. F
ig
-
ure
11.
f
iGure
10
Grill Gas Valve "Tee" (17)
10" S/S flex line (18)
f
iGure
9
Grill Gas Valve
Hose Assembly
For old Broilmaster grill, this alternate tee fitting kit must
be ordered.
f
iGure
11
34" S/S flex line (19) "Tee" (17)
14
P
ROPANE
G
AS
C
ONNECTION
