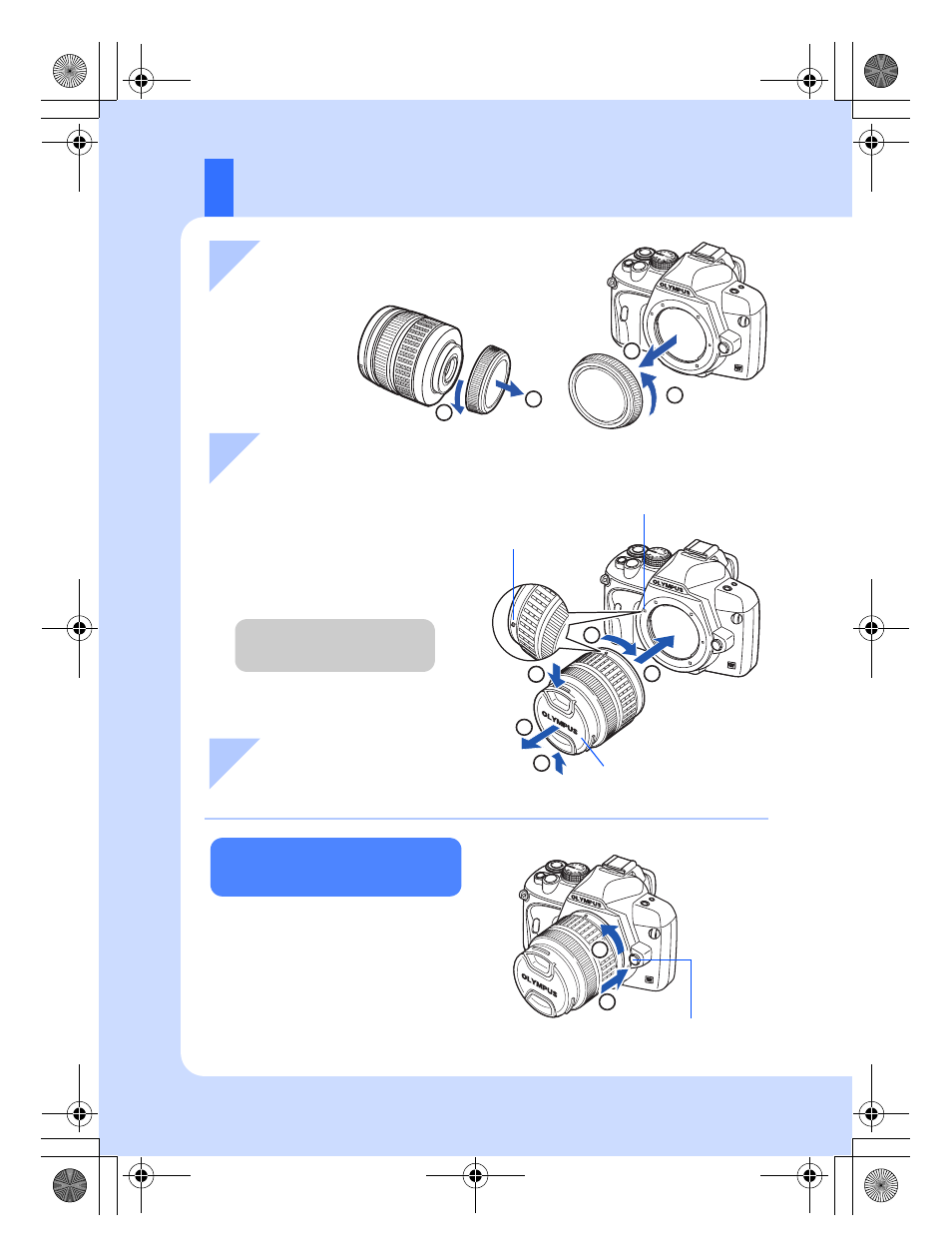

Attaching a lens to the camera
1
3
3
4
2
1
2
1
2
Rear cap
Body cap
Lens cap
Lens attachment
mark (Red)
Alignment mark (Red)
Lens release button
1
Remove the body cap from the
camera and the rear cap from the lens
2
Attach a lens to the camera
Do not press the lens release
button.
3
Remove the lens cap
(
3 , 4 )
Removing the lens from the
camera
While pressing the lens release button
(1), rotate the lens in the direction of
the arrow (2).
• Align the lens attachment mark
(red) on the camera with the
alignment mark (red) on the
lens, then insert the lens into
the camera’s body (1).
• Rotate the lens in the direction
indicated by the arrow until you
hear it click (2).
2
1
