5.1-TV Control Panel
or
Program Down/Up button
or Volume Level Down/Up button
or
On-Off / Standby button
or or
Stand by indicator
Bright light: TV is in Stand-by
Dimmed light: TV is On
No light: Power Cable is not connected.
or
Menu button / Source selection button

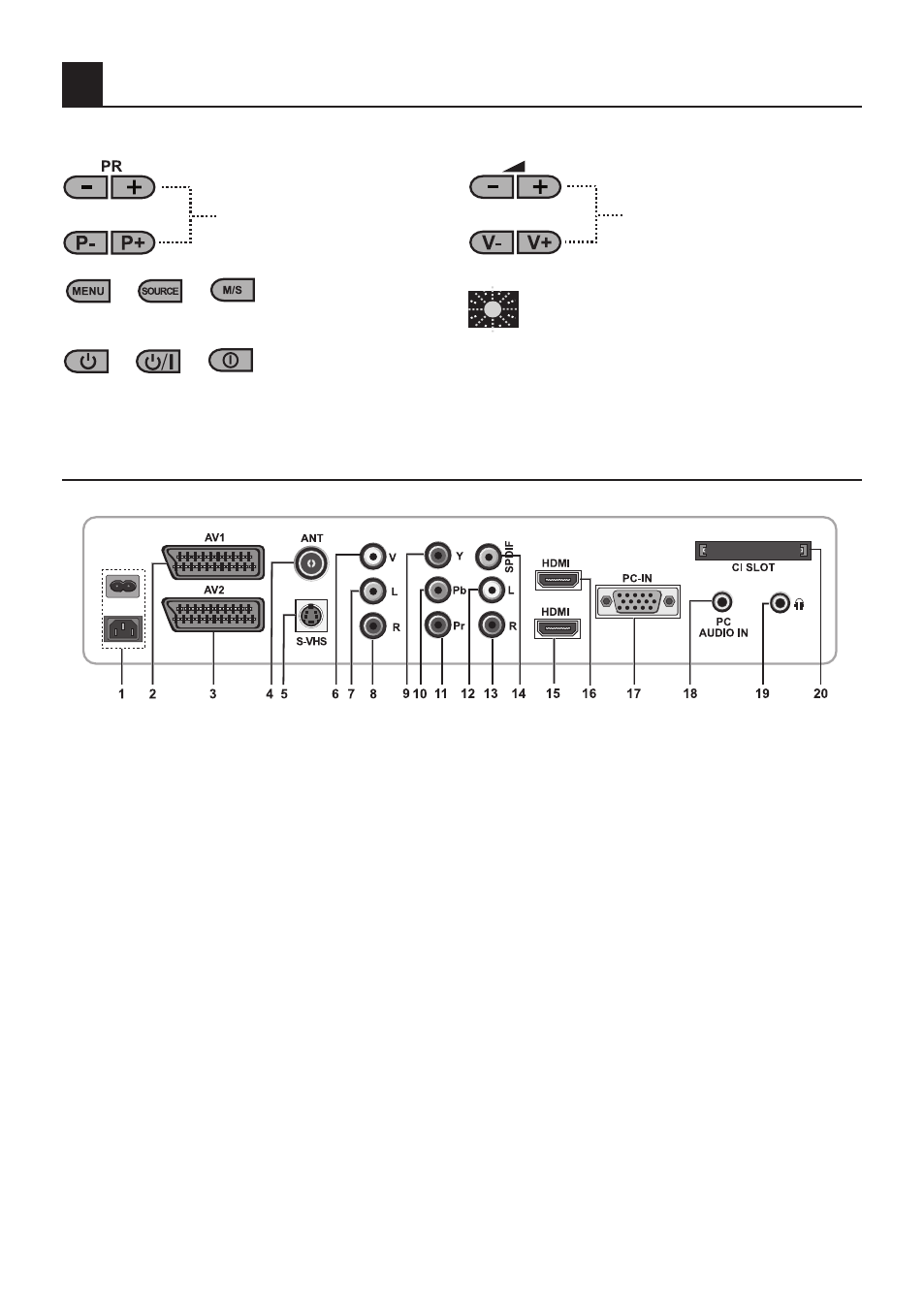

5.2-Rear and Side External Connections
1-Power input
2-AV1 scart
3-AV2 scart
4-Aerial input
5-S-VHS input
6- Video input PHONO connector
7-Sound output PHONO connector (Left/L)
8-Sound output PHONO connector (Right/R)
9-Component video input (Y)
10-Component video input (Pb)
11-Component video input (Pr)
12-Component audio input (L)
13-Component audio input (R)
14-SPDIF Digital audio output
15-HDMI 1 input
16-HDMI 2 input
17-VGA (PC connection input)
18-PC audio input
19-Stereo Headphone socket
20-CI slot input
Note: Above drawing for external connections is representational. Their order and places on
your TV may be different.
Please see Technical Specifications Table on page 30 for the available external connections
on your television.
• Please do not use the video Phono and S-Video connection simultaneously, otherwise
these two devices might influence the picture quality of one another.
