Use only a special heat-
resistant silicone.
The worktop cutout
Distance
from the
wall minimum 50 mm
Depth 490 mm
Width sum of all widths of hobs that
you install minus 20 mm
Example:
580 mm
5
2
0
mm
4
9
0
mm
360 mm
+ - =
20 mm 920 mm

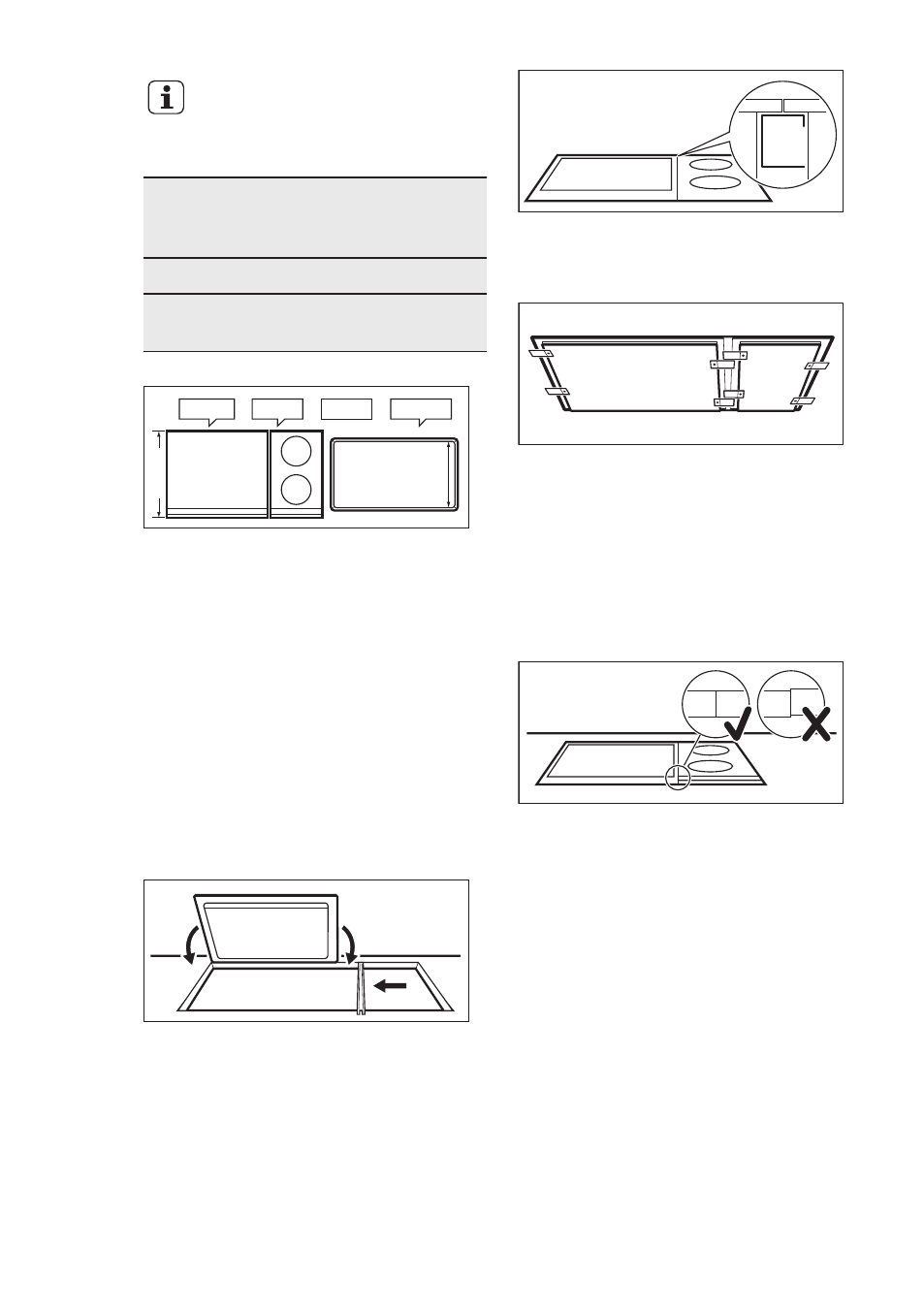

Assembly
1. Calculate correct cutout dimensions.
2. Prepare cutout in the worktop.
3. One by one place the hobs on a soft
surface (for example on a blanket)
with the bottom side up.
4. Attach the supplied seal stripe to the
lower edge of the hob along the
outer edge of the glass ceramic.
5. Loosely screw the fixing plates into
the correct holes in the protective
casing.
6. Insert first hob into the worktop
cutout. Than insert the connection
bar into the worktop cutout. Push it
half of its width under the hob.
7. Loosely screw in the fixing plates
from below to the worktop and to
the connection bar.
8. Insert next hob into the worktop
cutout. Make sure that the front
edges of the hobs are on the same
level.
9. Tighten the fixing plates / retaining
grip screws.
10. Use silicone to seal the gaps
between the hobs and between the
hobs and the worktop.
11. Put some soapy water on the
silicone.
12. Press the rubber shape with some
strength against the glass ceramic
and move it slowly along the space.
13. Do not touch the silicone until it
becomes hard, it can last about a
day.
14. Carefully remove the silicone that
came out with a shaving blade.
15. Clean the glass surface.
