1-28 Chapter 1: Product introduction
4. Serial ATA connectors (7-pin SATA1, SATA2, SATA3, SATA4)
These connectors are for the Serial ATA signal cables for Serial ATA 3.0
Gb/s hard disk and optical disk drives. The Serial ATA 3 Gb/s is backward
compatible with Serial ATA 1.5Gb/s specification.
The current Serial ATA I interface allows up to 150 MB/s data transfer rate
while Serial ATA II allows up to 300 MB/s data transfer rate, faster than the
standard parallel ATA with 133 MB/s (Ultra DMA133).
If you install Serial ATA hard disk drives, you can create a RAID 0 and RAID 1
configuration through the onboard NVIDIA ® MediaShield™ controller.
M2NBP-VM CSM
®

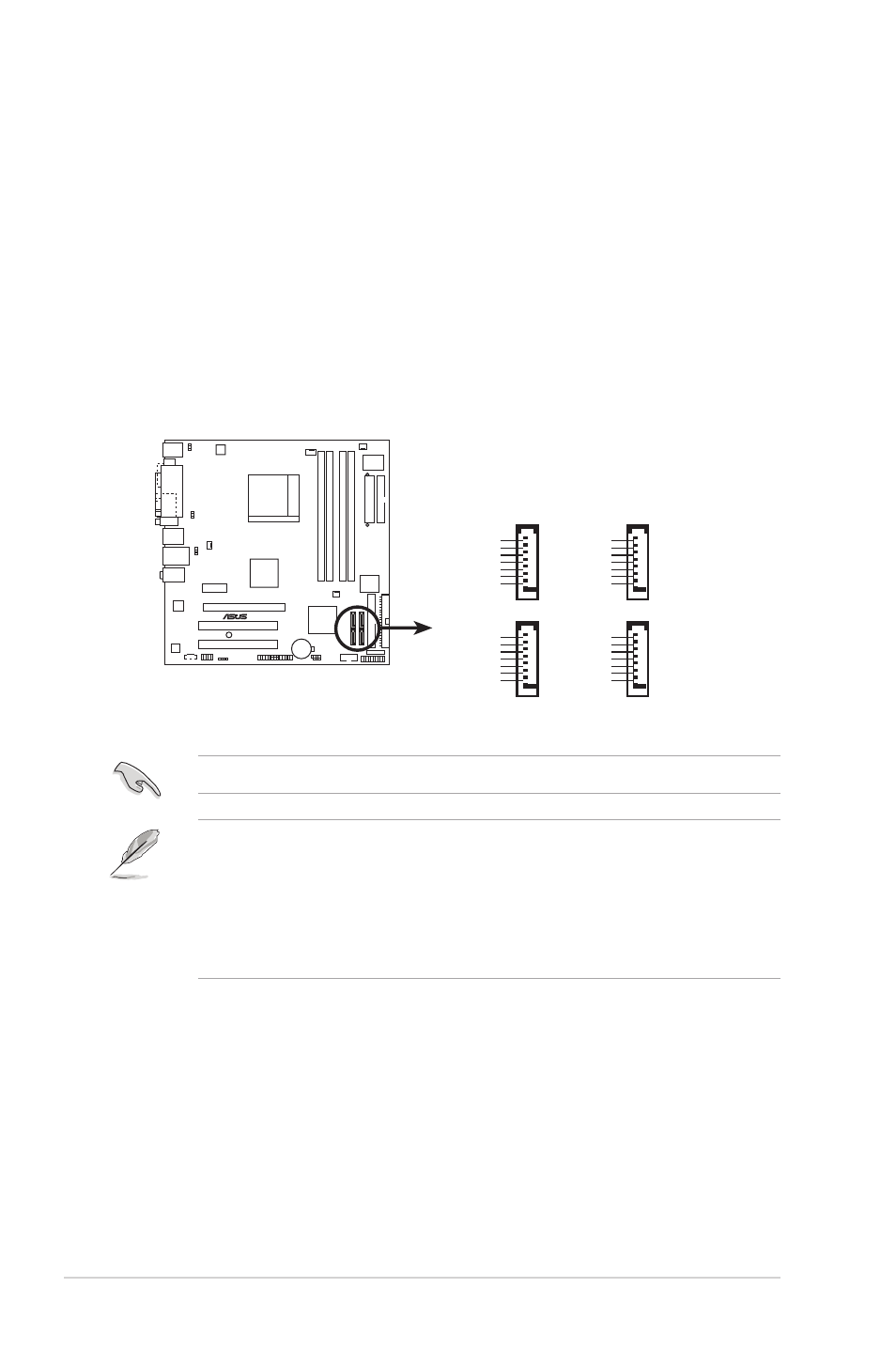

M2NBP-VM CSM SATA connectors
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
SATA1
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA2
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND
SATA4
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
SATA3
Install the Windows ® XP Service Pack1 before using Serial ATA.
• For detailed instructions on how to configure RAID 0 and 1, refer to the
RAID manual in the support CD.
• The RAID function of these connectors is set to [Disabled] by default. If you
intend to create a Serial ATA RAID set using these connectors, enable the
RAID Enabled item in the NVRAID Configuration sub-menu in the BIOS.
See section “2.4.6 Onboard Device Configuration” for details.
