5
UPS Installation
Overview The Management Card can be installed in an expansion slot in a
Smart-UPS, Matrix-UPS, or Symmetra Power Array. For a
Silcon DP300E series UPS, the Management Card installs in a
Triple Chassis (either an AP9604R or AP9604SR).
Step 1: Install
PowerChute
plus If you are installing PowerChute
®
plus and a Management Card
for the same server, first install PowerChute plus. This allows
you to make sure that PowerChute plus is working properly
before you install the Management Card.
Step 2: Turn off
all power
(Smart-UPS or

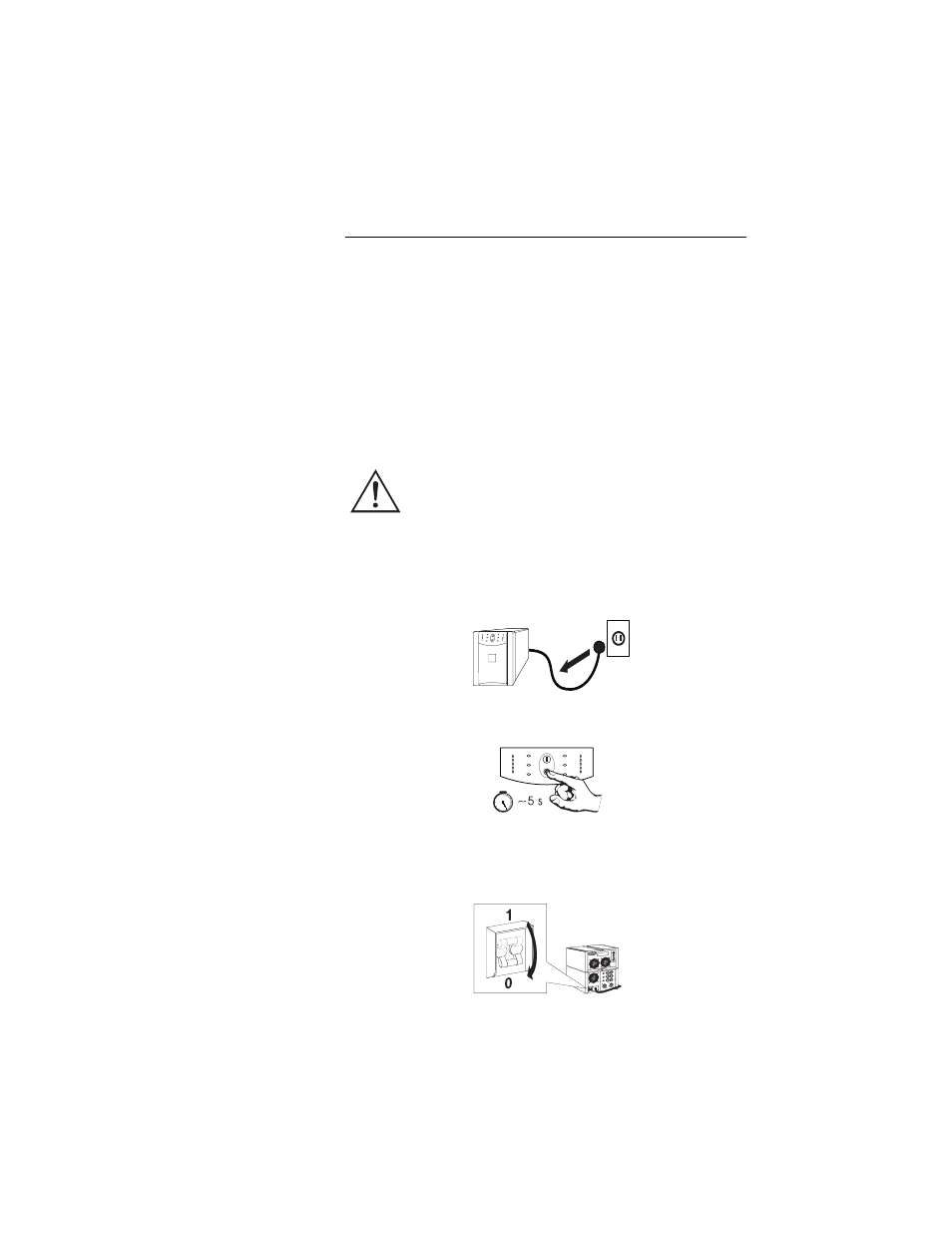

Matrix-UPS) Caution: Damage to the UPS or Management Card can result
if you do not remove all AC and DC power from a
Smart-UPS or Matrix-UPS model UPS. You do not
need to turn power off for a Symmetra Power Array.
Smart-UPS
1. Turn off the equipment that connects to the UPS.
2. Disconnect the UPS from its AC input source.
3. Press the OFF button on the UPS for approximately five sec-
onds to turn off the DC (battery) power.
Matrix-UPS
1. Turn off the equipment that connects to the UPS.
2. Turn off the circuit breaker on the rear panel of the UPS.
Continued on next page
