6
UPS Installation, continued
Step 3:Install
the Web/SNMP
Management
Card Caution: If you are installing the Management Card in a
Symmetra Power Array that uses more than one APC
management peripheral, see the supplied Installation
of Multiple SmartSlot Cards sheet. You must install
the APC peripherals in the correct order, otherwise
the peripherals may fail to operate properly.
1. Use the screws that hold the slot cover in place to secure
the Management Card in the UPS expansion slot.
2. Connect a network interface cable to the 10Base-T net-
work connector on the Management Card.
3. If neccessary, reconnect the PowerChute plus cable.
4. Reconnect the UPS to its input power source.
5. Turn on the UPS.
6. If neccessary, restart the PowerChute plus service.
7. See “Quick Configuration” on page 9.

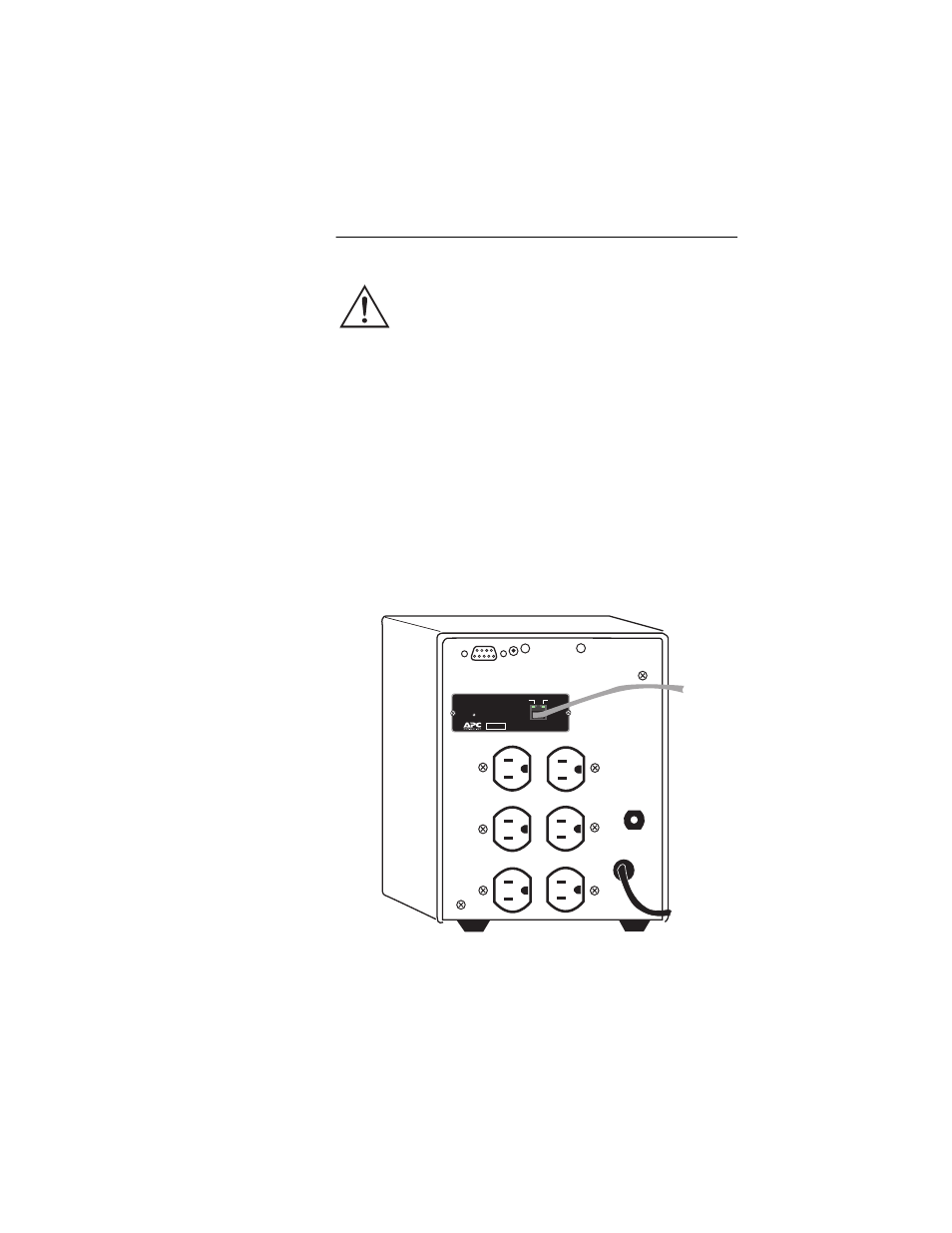

Figure 1: Connecting a Management Card in a Smart-UPS
Link - RX/TX Status
10Base-T Reset
Smart Slot AP9606 Web/SNMP Management Card
