SD Board

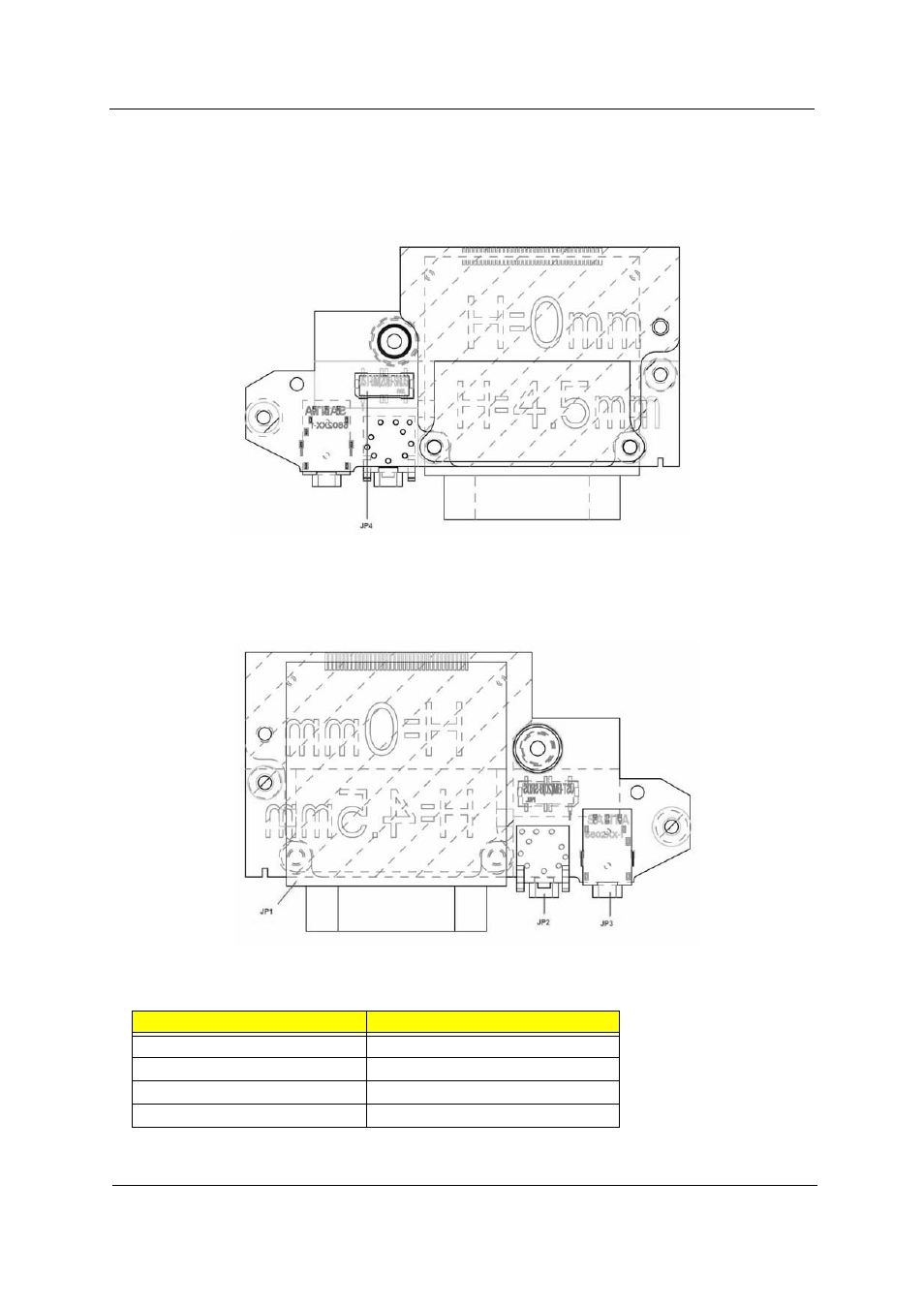

Top View

Rear View

Item

Description

JP1

Card Reader Socket

JP2

MIC-In/Line-In Jack

JP3

SPDIF/Headphone-Out Jack

JP4

To M/B wire connector
