Chapter 1 Before Use 1-8

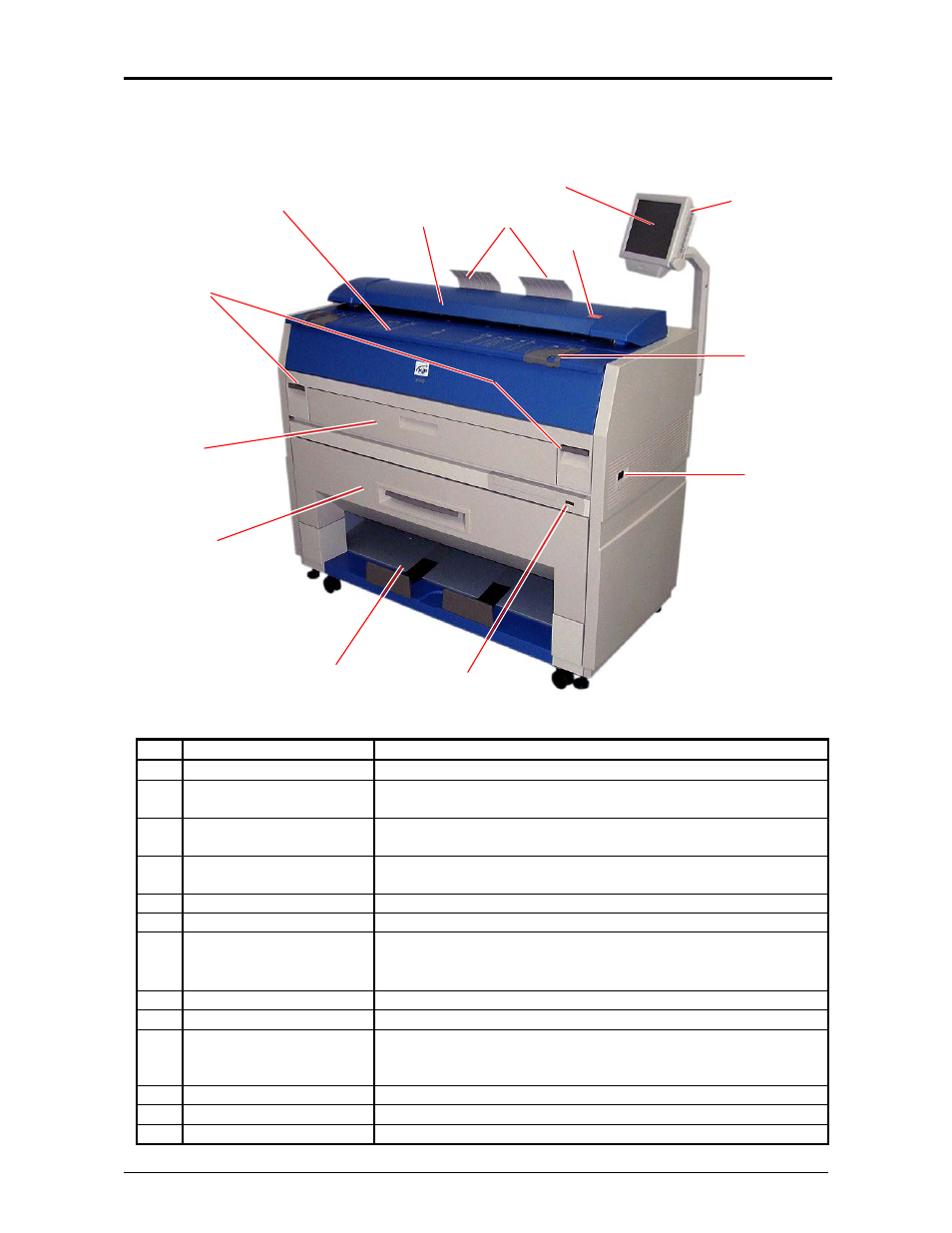

1. 5 Appearance
1. 5. 1 Front view
No. Name Function
1 Main Switch You can turn on/off the KIP 3100.
2 Original Guides Feed the original under the Scanner Unit along the Original
Guides.
3 User Interface This is a Touch Screen, and many kinds of user operations
are available.
4 Emergent Stop Button Press this button when you would like to stop copying or
scanning in an emergency.
5 Original Tray These trays catch the original ejected from the Scanner Unit.
6 Scanner Unit This unit reads the original when you make a scan or copy.
7 Toner Hatch
(Original Table)
Open the Toner Hatch when you replace the Toner Cartridge.
Also put the original here and then feed it into the Scanner
Unit when you make a scan or copy.
8 Engine Unit Open Lever Pull up these levers when you open the Engine Unit.
9 Bypass Feeder Feed a cut sheet paper from the Bypass Feeder.
10 Roll Deck Roll paper can be set here.
(You can set 1 roll paper normally, but 2 rolls of paper are
available if you install the optional 2nd Roll Deck.)
11 Print Tray Prints are stacked here after the ejection.
12 Counter It counts the total amount of printing.
13 Stylus Use this to press buttons on the touch screen.
1
4
6
2
9
10
12
7
11
3
5
8
13
