American Standard MONOBLOCK BIDET 2064.011 - Manual (Page 2)

M968851 Rev.1.3

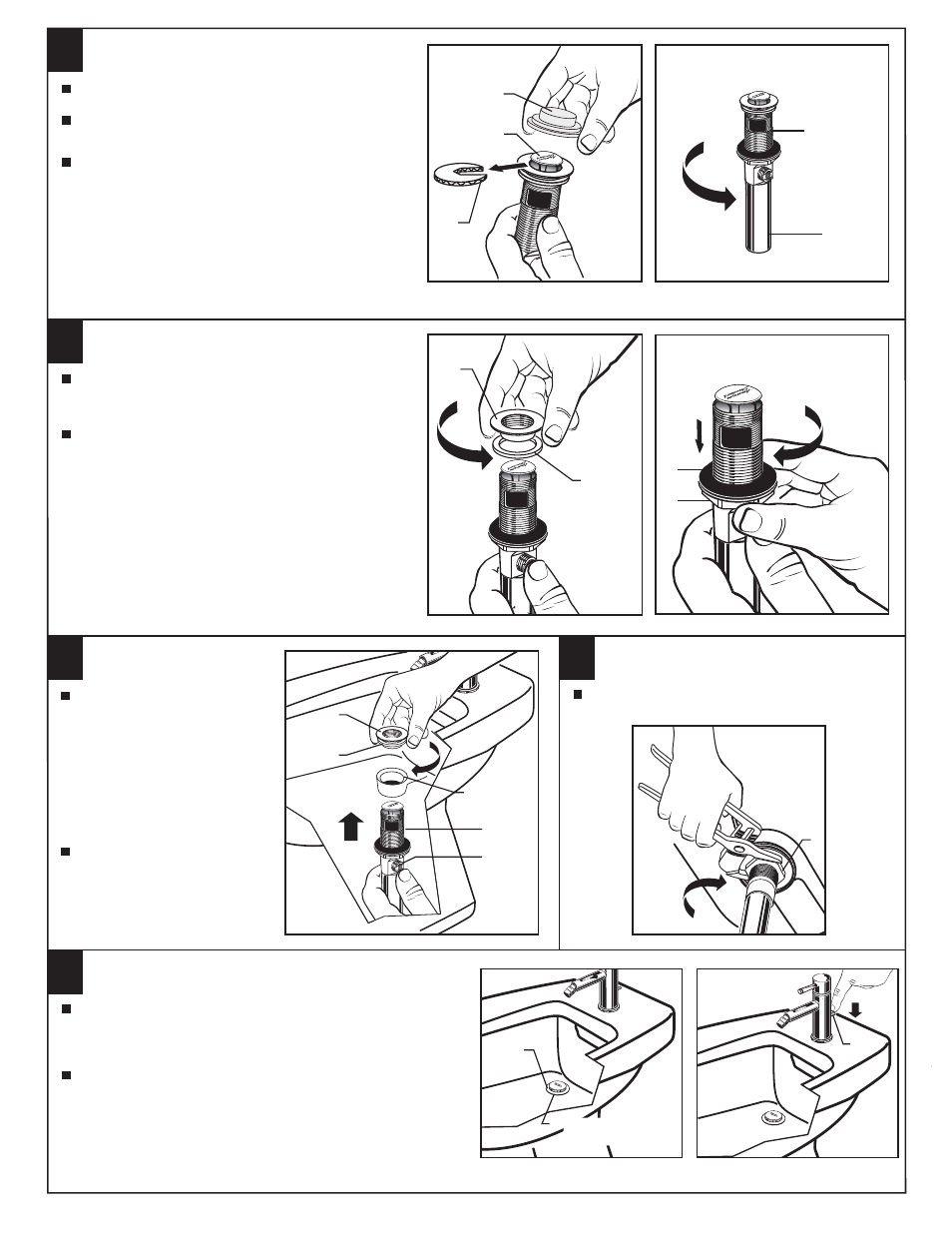

POP-UP DRAIN
Tighten TAILPIECE (4) on DRAIN BODY before
installing DRAIN BODY.
Fig. B.
2
4
3
2
TIGHTEN LOCKNUT
1
REMOVE FLANGE
Thread FLANGE (1) counter-clockwise and remove
FLANGE (1) and FOAM GASKET (2) from drain
body.
Fig. A.
Thread LOCKNUT (3) clock-wise to bottom of
drain body. Push GASKET (4) down against
LOCKNUT (3).
Fig. B.
Remove CLEAR PLASTIC COVER (1).
Remove CARDBOARD SPACER (2) from under
DRAIN POP-UP (3).
2
2
3
3
1
1
Tighten LOCKNUT (1) firmly with Adjustable
Wrench or Channel Locks.
2
INSTALL DRAIN FROM
BELOW FIXTURE
5
From under side of BIDET
install DRAIN BODY (1) up
through drain outlet.
Note: No plumber’s putty
or caulk is required.
The CABLE ATTACHMENT
POINT (2) must face towards
the rear of the BIDET.
DRAIN
OUTLET
Install FOAM GASKET (3) and
FLANGE (4) onto drain body
from above BIDET and tighten
FLANGE (4) firmly.
1
4
3
4
Fig. A. Fig. B.
Fig. A. Fig. B.
6
FLANGE GASKET
DRAIN
FLANGE
1
WHITE FOAM
GASKET
NOT VISIBLE
Fig. A.
DRAIN
BODY
4
Fig. B.
POP-UP KNOB (1) must be fully down. Fig. B.
Check DRAIN FLANGE in BIDET to ensure that
WHITE FOAM GASKET (3) is fully compressed
and not visible. Fig. A.
DOWN
1
