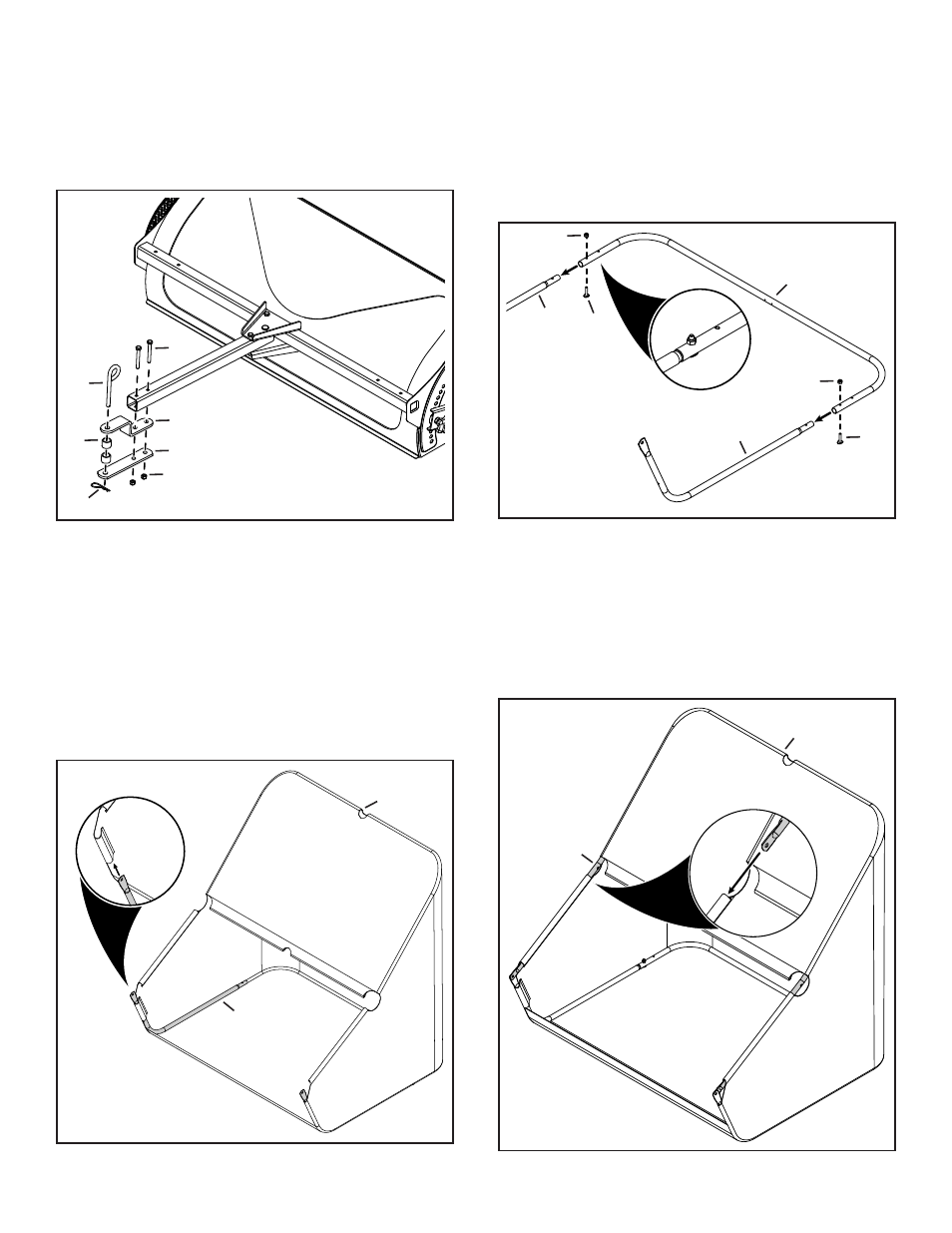

Attach the hitch bracket (12) and straight hitch bracket

7.

(13) to the drawbar using two 5/16" x 2-1/2" hex bolts
(15) and 5/16" nylock nuts (21). See figure 6.
Assemble a 3/8" x 3" hitch pin (35) and two 3/4"

8.

spacers (22) to the hitch brackets. Secure them in
place with a 3/32" hair cotter pin (18). See figure 6.

Slide ends of two lower hopper tubes (10) into the

9.

flaps at the front of the hopper bag (3) as shown in
figure 7.

Slide a rear hopper tube (11) onto ends of lower

10.

hopper tubes (10) making sure the holes in the rear
hopper tube are facing up as shown in figure 8.
Secure the rear hopper tube (11) to the lower hopper

11.

tubes (10) with two 1/4" x 1" curved head bolts (26)
and 1/4" nylock nuts (24). See figure 8.

noTe: Hopper bag (3) not shown for clarity.

Slide the upper hopper tubes (6) through flaps in the

12.

sides of the hopper bag (3) as shown in figure 9.
Slide the upper hopper tubes (6) up inside the hopper

13.

bag (3) as shown in figure 9.

21

3

6

3

10

13

12

15

35

22

18

24

24

11

10

10

26

26
