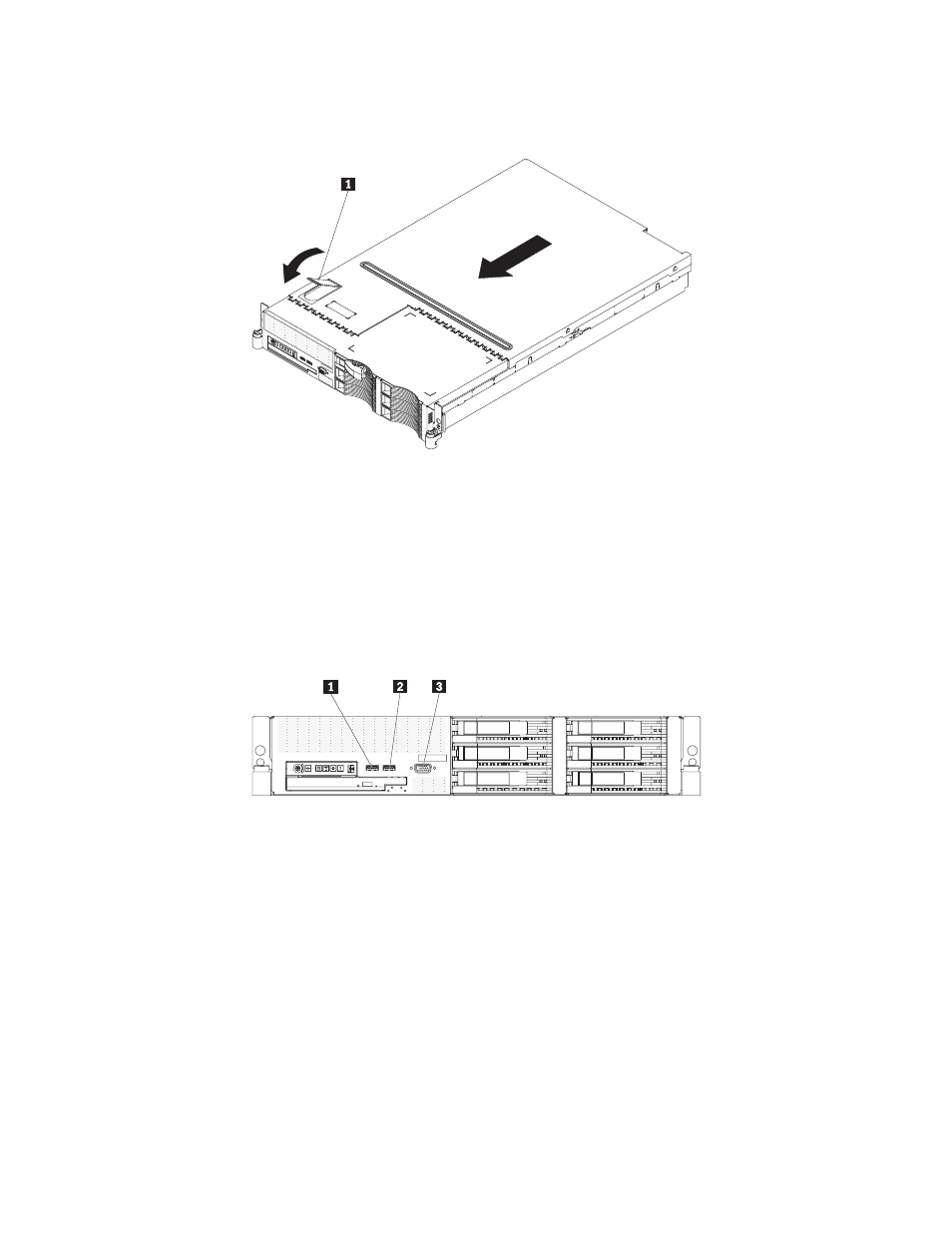

Installing

the

cover

To

install

the

cover,

place

it

into

position

and

slide

it

forward.

1

Cover-release

latch

Connecting

the

cables

The

following

illustrations

show

the

locations

of

the

input

and

output

connectors

on

the

front

and

rear

of

the

server.

Front

view

1

USB

5

connector

3

Video

connector

2

USB

6

connector

30

ThinkServer

RD120

Types

6444,

6445,

6446,

and

6447:

Installation

Guide
