Hardware Replacement Guide

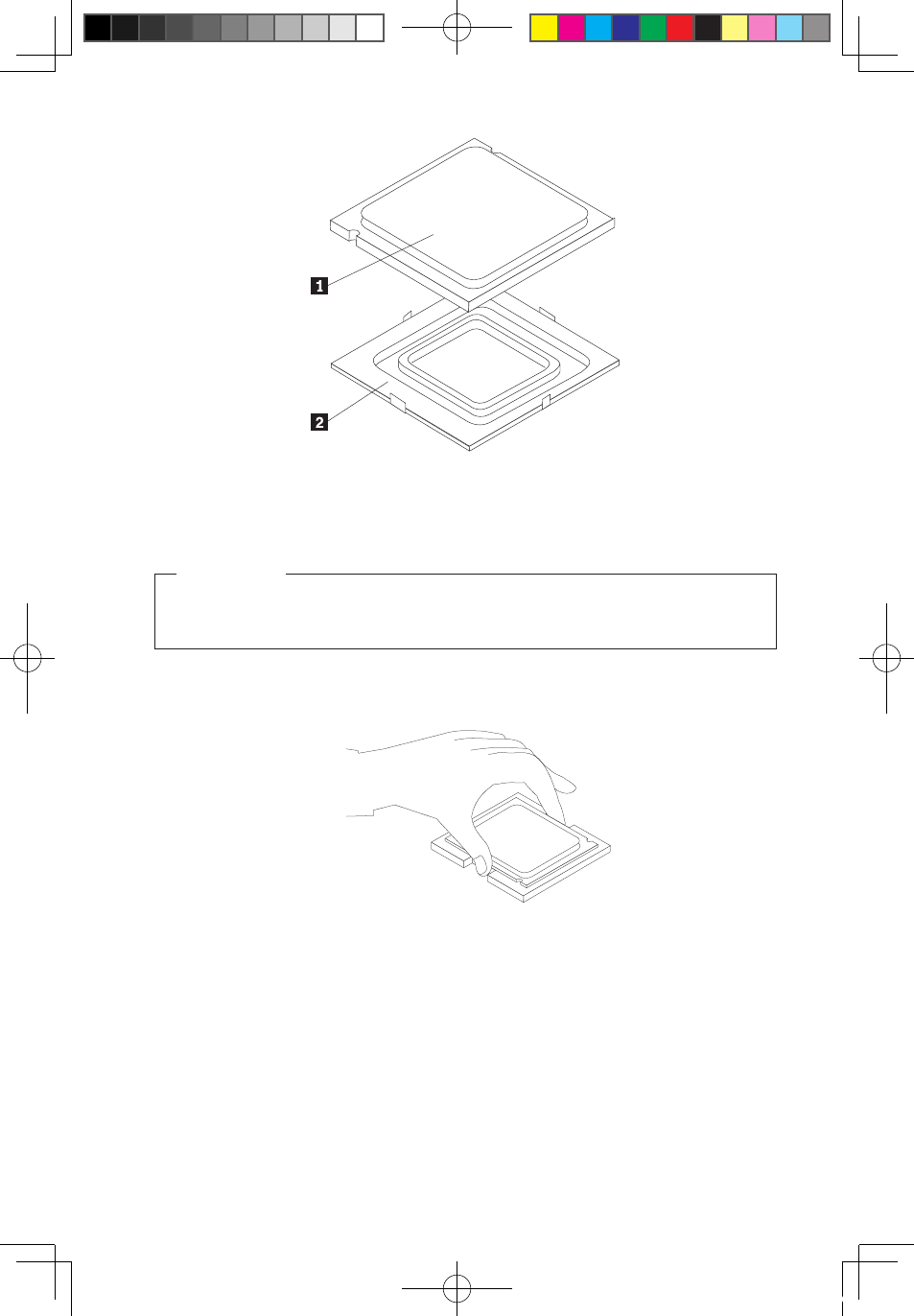

12. Holding the microprocessor with your fingers, position the microprocessor
so that the notches on the microprocessor are aligned with the tabs in the
microprocessor socket.
Important
To avoid damaging the microprocessor contacts, do not tilt the
microprocessor when installing it into the socket.
13. Lower the microprocessor straight down into the system board socket of the
system board.
14. To secure the microprocessor in the socket, close the microprocessor retainer
and lock it into position with the small handle.
15. Use the thermal grease syringe to place five drops of grease on the top of the
microprocessor. Each drop of grease should be 0.03ml (3 tick marks on the
grease syringe).
