Hardware Replacement Guide
top of the chassis.
4. Refer to the “Completing the installation”.
Replacing a memory module
Attention
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM
, go to the Support Web site at http://www.lenovo.com/support.
To replace a memory module:
1. Open the computer cover. Refer to “Opening the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.
2. Pivot the drive bay assembly upward to gain access to the system board.
3. Locate the memory module connectors. Refer to “Locating components”.

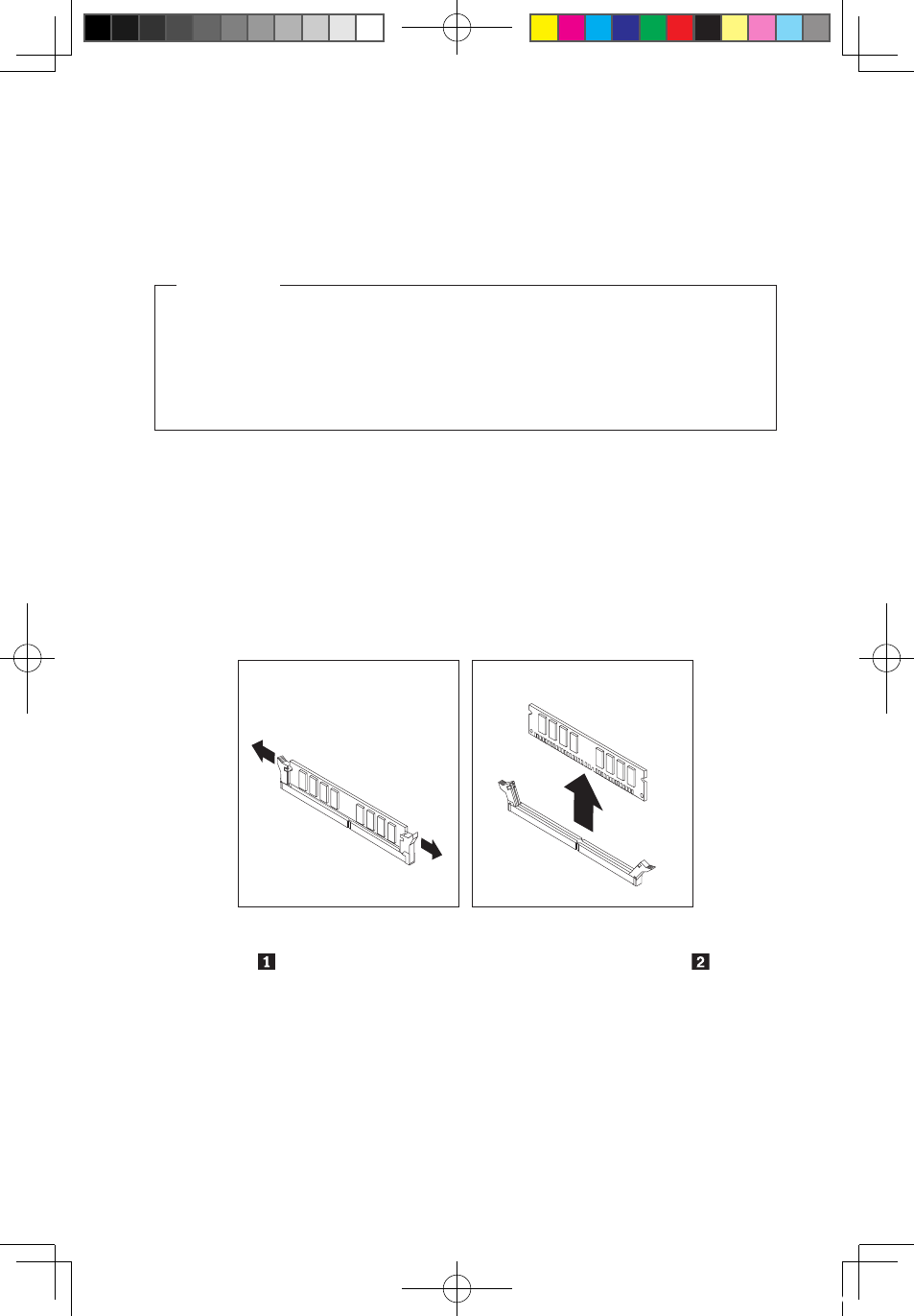

4. Remove the memory module being replaced by opening the retaining clips as
shown.
5. Position the new memory module over the memory connector. Make sure
the notch on the memory aligns correctly with the connector key on the
system board. Push the memory module straight down into the connector until
the retaining clips close.
